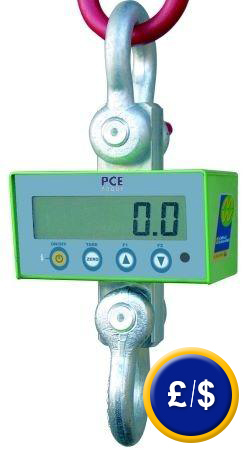

Crane Scale with verification PCE-MCWLT6M ( class III) crane scale with verification for internal use (verification included), with 3 weight ranges (up to 6000 kg)
|
|
This mobile crane scale has small dimensions and it is a versatile, economic solution for overhead material handling and weighing applications. The crane scale includes an internal rechargeable battery that ensures 35 hours of continuous work before recharging. It also includes the Peak Hold which captures and holds maximum load. With the infrared remote control you can select all the functions you need. The delivery of the crane scale includes power supply, battery charger and infrared remote control. The crane scale is especially suitable for rough conditions in different industries, as well as for a wide variety of other applications, for exemple trade sector, transport, etc. The crane scale is delivered with verification, so you don't bear additional expenses.
|
|
- Affordable crane scale with 3 weight ranges
- Very clear 25 mm illuminated LCD display
- Remote control for all functions (included)
- Protection IP 54 (protected against dust and water)
- Internal rechargeable battery (35 h. of continuous work before recharging)
- Data Hold function: "freeze" the current weight value
- Stainless steel hooks, hook with safety catch
- Overload protection up to 500%, K=5
- Verification included in the delivery
PCE-MCWLT6M View or Print  Manual Data sheet
|

|
|
Dimensions
|
|
|
| Technical specifications |
| |
Maximum capacity [kg] |
Minimum load [kg] |
Readability [kg] |
Reprodu- cibility [kg] |
Verification value [kg] |
| PCE-MCWLT6M |
6000 |
20 (up to 1.5 t) 40 (up to 3.0 t) 100 (up to 5.0 t) |
1 (up to 1.5 t) 2 (up to 3.0 t) 5 (up to 5.0 t) |
1 (up to 1.5 t) 2 (up to 3.0 t) 5 (up to 5.0 t) |
1 (up to 1.5 t) 2 (up to 3.0 t) 5 (up to 5.0 t) |
| Verification |
Yes, included in the delivery |
| Protection |
IP 54 (protected against dust and splashing water) |
| Tare |
Yes, full weight range |
| Response time |
< 10 s |
| Maximum overload |
500% |
| Indicator |
Display LCD 25 mm |
| Housing |
Metal (waterproof construction) |
| Power supply |
Battery 9 V (35 h. of continuous work before recharging)/auto-power off |
| Remote control |
For all functions |
| Operating temperature |
0 ... +40 °C |
| Weight |
10 kg |
|
Delivery includes 1 x Crane Scale with verification PCE-MCWLT6M, 1 x battery 9 V, 1 x infrared remote control (batteries included), 2 x stainless steel hooks, 1 x carrying case and user manual
|
 |
 |
