Crane Scale PCE-CS 300
Easy to use crane scale, weight range up to 300 kg, large display, comes with shackle and hook, tare function, optional calibration certificate, digital

The PCE-CS 300 hook type is an advanced wireless crane scale. The crane scale combines the safety and comfort of having a remote, wireless control and a hook which allows easy usage. The PCE crane scale is very suitable for rough usage in different industries, as well as for a wide variety of other applications. The crane scale has an internal mechanism to ensure that the received and indicated value is identical to the transmitted value. Under no circumstances will it indicate a different value than the transmitted one. This is an important safety feature. The wireless crane scale of small size won't need a lot of space. The lightweight crane scale is powered by internal rechargeable long life battery, which ensures a continuous work during 50 h before being recharged again. Maximum overload of 400% protects the load cell. The 30 mm LED Display shows the weighing data bright and clear at a distances up to 10 m. The affordable crane scale can be used by every practitioner in manufacturing and trading industry.

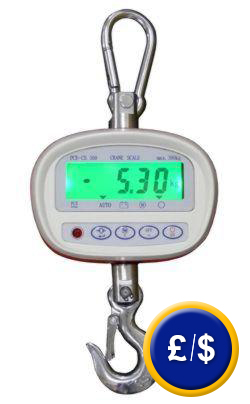

Crane Scale of PCE-CS 300

 - On/Off, Zero, Tare, Hold and kg/Lb functions
 - Special "Sum up" function (stores weighing data
   as single and total weight - you can recall all
   data on the display after having finished the
   weighing procedure)

 - Metal casing/housing
 - Hook with safety catch
 - Stainless steel hooks
 - Auto zero tracking
 - Wireless remote control

 - Internal rechargeable battery pack
   (50 h of continuous work before recharging)

 - Low battery indication
 - IP54 protection grade
 - Very clear 30 mm illuminated LED
   (visible up to 10 m distance)

 - Overload protection 400 %
 - Calibratable by using an external weight (option)
 - ISO calibration certificate available (option)

Crane Scale PCE-CS Series

  The crane scale PCE-CS 300 can be recalibrated by using external weight       Crane Scale PCE-CS 300: Full tare.       Crane Scale PCE-CS 300: Rechargable internal battery.

Dimensions of the crane scale PCE-CS 300

Crane Scale PCE-CS 300: Dimensions.

Max.
Capacity

L
[mm]

A
[mm]

B
[mm]

C
[mm]

Weight
[kg]

300 kg

335

20

65

20

4.0


       crane scale PCE CS in use        crane scale PCE CS in use

       crane scale PCE CS in use.        crane scale PCE CS remote control
Technical specification
Crane scale model Maximum Capacity
[kg]
Readability

[kg]
Measuring units Tare Net weight

[kg]
PCE-CS 300 300 0,1 kg/lb Full range 4.0
Dimensions See table above
Stabilisation time < 10 s
Maximum Overload 400 %
Display 30 mm backlit LED
Housing Metal case
Remote control For all functions (infrared/visible at a distance up to 10 m)

Delivery includes
1 x Crane Scale PCE-CS 300, 1 x Internal Rechargeable Battery, 1 x Charger, 1 x Infrared Remote Control (incl. batteries), 1 x Stainless Steel Hook, 1 x Shackle, User manual

Options

ISO Calibration (CAL-0,5T / CAL-1T)


The calibration procedure includes laboratory calibration process and ISO certification. The customer's name and address are included. These certificates are comparable to NIST and UKAS certificates. They are accepted all over the world.

Crane Scale pce-cs 300: ISO calibration certificate.
