Pallet Truck Scale PCE-TPWLM  ( class III)
pellet truck scale with a scale integrated which has 3 ranges,
weight range up to 2.000 kg

Pallet truck scale PCE-TPWLM has a pallet truck and an internal scale integrated verificated according to the commercial class M III and a weight range up to 2000 kg. You can use this pallet truck scale for commercial trade, commercial transactions or internal use. This model pallet truck scale is the ideal solution for fast and precise mobile weighing in industrial and warehousing applications. Weight and transport your merchandise during the load in the ramp or in the truck in no time at all. It is no longer necessary that you load the pallets until a verified scale, it will only be necessary to place the goods to weigh and read the weight in the large display of the pallet truck scale. Weigh quickly and with a good control of the process. When you use batteries, you can use wherever. The scale has 3 ranges that allows you reach a maximum accuracy. This link shows an overview of the scales and balances we have available to meet your requirements.

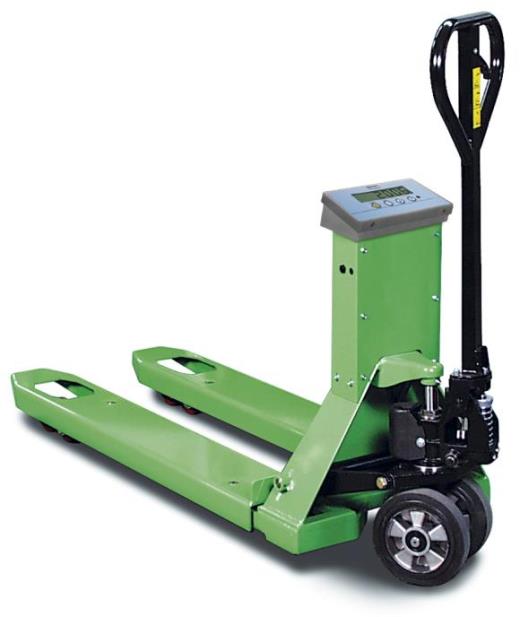

 Pallet Truck Scale PCE-TPWLM .
Pallet Truck Scale PCE-TPWLM


  • M Class III Verification included in the delivery
  • Three ranges for high accuracy
  • Accuracy ±0,1 % of current value
  • RS-232 interface
  • Waterproof display
  • Large display 25 mm backlight, easy to read
  • Automatic calculation of the tare, manual insert of tare
  • Adder function
  • Rechargeable battery or adapter, battery charger included in the delivery
  • Auto power off for battery protection
  • Solid steel lacquering
  • Tandem load wheels

Pallet Truck Scale PCE-TPWLM with verification M III (Legal for Trade).

Weighing pallet truck verified according to M III standard

Pallet Truck Scale PCE-TPWLM with RS-232 interface for connect to your PC o printer.

 Interface RS-232 to be connected to a PC or to a printer.

Pallet Truck Scale PCE-TPWLM with battery of accumulators

 Powered by internal accumulator

Pallet Truck Scale PCE-TPWLM: tara function for autozeroing.

 Tare function for zero setting.

Pallet Truck Scale PCE-TPWLM: Protected against dust and splashing water.

Protection IP 54 protection, resistant to both dust and water splash.

 See / Print

           Pallet Truck Scale PCE-TPWLM: manual de uso.                           Pallet Truck Scale PCE-TPWLM: data sheet.
 Manual                 Data sheet

Pallet Truck
Scale

Weight
range
Max
[kg]
Readability
 d
[kg]
Verification
 value
 e
[kg]
Overload protection
[%]
Finishing
PCE-TPWLM 2000 0,5 a 500 kg
1,0 a 1000 kg
2,0 a 2000 kg
0,5
1,0
2,0
200  Stahl,
lackiert
Weight range 100 %
Response time < 10 s
Units kg
Display LCD with 4 keys, numbers of 25 mm
Overload maximum 200 %
Calibration automatic (Through an external weight)
Operating temperature 0 ... + 40 °C
Power supply Internal AC battery, battery charger 230 V included in the delivery
Housing metal (enameling)
Protection IP 54 (Protected against dust and splashing water)
Dimensions 1400 x 550 x 1100 mm
Weight 120 kg

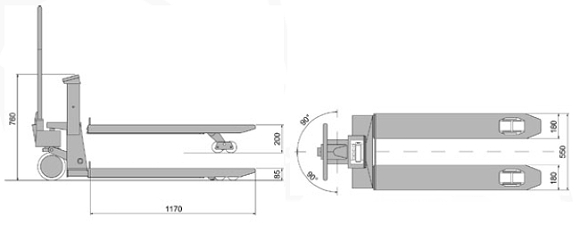

 Pallet Truck Scale PCE-TPWLM dimensions.
Pallet Truck Scale PCE-TPWLM dimensions



Delivery includes
Pallet Truck Scale PCE-TPWLM, battery and user manual
Options

ISO Calibration (CAL-PCE-TPWLM)

The calibration procedure includes laboratory calibration process and ISO certification. The customers name and address is filled in. These certificates are comparable to NIST and UKAS certificates. They are accepted all over the world.

Pallet Truck Scale PCE-TPWLM: ISO calibration certificate.
