Platform
Scale PCE-PB Series
Low priced platform scale,
equipped with RS-232-interface (software-kit as an option) /
two models with maximum capacities of 60 kg and 150 kg available
|
|
The

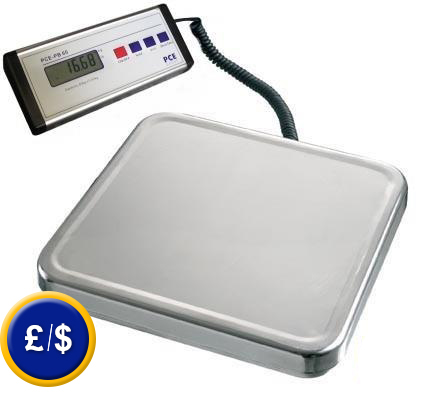

PCE-PB is a multi-purpose industrial platform scale. This
industrial platform scale displays the weighing units in either
kilograms (kg) or pounds (lb) to provide accurate weighing
results at an affordable price. The platform scale works on
battery or AC power providing you with total weighing
flexibility. Versatile PCE platform scale is used for weighing
applications for shipping and receiving, manufacturing &
general purpose weighing. This scale increments in 0.02 kg
graduations and the stainless steel platform is removable for
easy cleaning. The indicator is also in a stainless steel
housing with a splash proof keyboard. The indicator features a
large high LCD for easy viewing along with RS-232 interface for
connection to a PC. The optional software-kit allows data
transfer to a PC. The indictor can be placed up to 1 m away from
the base when fully stretched. Low profile design allows
cartons to slide easily onto the platform. This
link
shows an overview of the scales and balances we
have available to meet your requirements. |
|
PCE-PB
60
PCE-PB 150
|
- Large LCD display
- Stainless steel weighing pan
- Simple 4 button operation
- Portable with battery power
- Tare function / Units kg or lb
- Mains power adapter and wall
mounting
kit for display included as standard
- Auto-Power-Off (function can
be disabled)
- RS-232 bi-directional interface
- Software-Kit (incl.
RS-232-cable as option)
- Calibration certificate (option)
|
Apart from adapter for mains of 230 V, household scale can be also
powered by normal batteries (6 units of 1,5 V).
Batteries provides with total mobility and
flexibility to household scales.
See / Print
Instruction manual
Data sheet
|
|
Technical Data
|
|
Scale model |
Maximum
capacity |
Readability |
Linearity |
Weight |
Pan
size |
|
PCE-PB 60 |
60 |
20 |
±50 |
4,5 |
325 x 315 x 55 |
|
PCE-PB 150 |
150 |
50 |
±100 |
4,5 |
325 x 315 x 55 |
|
Display
size |
220 x 90 x 42 mm |
|
Stabilisation
time |
> 2 s |
|
Display |
LCD with
minimum 15 mm digits with weight legends for
kg, lb, low battery, stable, zero |
|
Interface |
RS-232
bi-directional interface |
|
Power
supply |
6 AA size
non-rechargeable batteries in a compartment located in
the
base or 12 VAC 150 mA from external adapter |
|
Operating
temperature |
15 ... 30 °C |
|
Housing |
Indicator:
Aluminium / Platform: Mild steel base and stainless
steel pan |
|
Delibery
includes
1
x Platform Scale PCE-PB (Model PCE-PB 60 or PCE-PB 150), 1 x
Weighing indicator (display) @ 1 m cable, 1 x Mains adapter, 1
x Weighing pan, User manual |
|
Options
-
Printer
(PCE-BP)
The printer is used for direct output of weighing data.
It will be delivered including RS-232-cable, u
usb-cable, net adapter and 1 roll of paper.
- Paper width: 112
mm
- Exchange paper.
|
 |
- Software-Kit (PCE-SOFT-PB)
The kit includes a software for transferring the weighing data to a PC or Portable and a RS- 232-cable. The transferred data can also be sent to other calculation software as Excel ... The standard software is in
English language (others are available (French, German ...). |
 |
-
RS-232-USB-Adaptor (RS232-USB)
In case your PC or Portable uses USB- Interfaces, you can use the
adapter in connection with the standard
RS - 232 - Cable. A small software (covering the actual drivers) is included. |
 |
- ISO Calibration (CAL-PCE-PB 60 / -PB
150
The calibration procedure includes laboratory calibration process and ISO certification. The customers name and
address is filled in. These certificates are comparable to NIST and UKAS certificates. They are accepted all over the world. |
 |
|
 |
 |
|
Here you will find an overview of all the
scales and balances available from PCE Group. |
|
