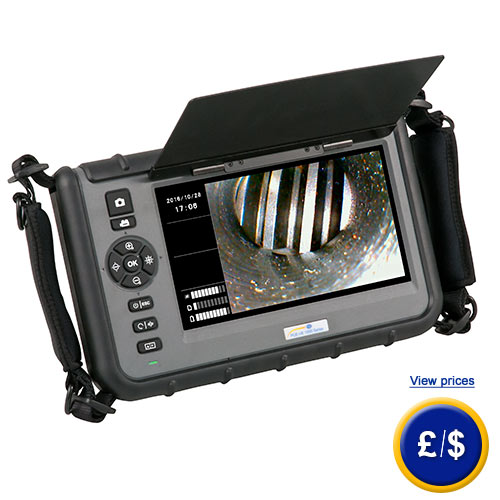

PCE-VE 1000 Endoscope
Borescope with various attachable cables / image and video recording /
7 " LCD for accurate vision / SD card memory / images rotatable by 360 ° (steps of 90°) /
bright LEDs at camera head / digital zoom

The borescope PCE-VE 1000 is a versatile inspection instrument. Different cables with various features can be attached to the borescope. One of the special advantages of the borescope is the large display which allows the user a good overview of the surface to be viewed, due to its large dimensions and good resolution. The borescope can record images and videos. Additional to the video the audio can be recorded. The user can see the very clear resolution when saving the images to the inserted SD card by a keystroke. Since the recordings are saved to an external mass storage device, the user can select what SD card can be inserted into the borescope. The maximum capacity should be 32 GB. An 8 GB memory card allows more than 60,000 images or 530 minutes of video material to be saved.

The 2-way optics of the borescope are particularly advantageous in locations that are hard to access. However, if the control of the camera head should not be sufficient at times and the images in the display are not clear enough, the user has the possibility to rotate the images in the display of the hand-held unit by 90 °. In addition to the image rotation, several other functions can be set directly at the hand-held unit of the borescope. This enables digital zoom as well as setting the LED brightness of the camera head. The borescope has a thread at the rear side which enables the operator to place the main unit on a tripod in order to make continuous recordings. The Auto Power Off function can be enabled or disabled in the menu of the borescope and different time intervals between 5 and 30 minutes can be selected as the Power Off time. The main unit can also be held comfortably using the foam-covered hand straps.

In case that you have any questions about the borescope PCE-VE 1000, read the technical data or get in contact with us: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will inform you about the topic "boresope" or any other product of in the field of regulation and control, measuring instruments, laboratory equipment or scales and balances of PCE Instruments.

Go to PCE-VE 1000 borescope.   User manual for the PCE-VE 1000 Endoscope

Borescope PCE-VE 1000 for many purposes of operation

- large LCD (7 ")
- digital zoom
- bright LED´s at the camera head
- Display size of 640 x 480
- SD card memory for images and videos
- 28 different menu languages
- Video-Standard: NTSC/PAL

- integrated microphone for audio input
- image rotation in steps of 90 ° possible
- image and video recording
- fold-out foot
- including cleaning kit
- powered by rechargeable battery
- USB interface for data transfer

Technical specifications of the borescope:

Display

7 " LCD (800 x 400)

Resolution

640 x 480

Video recording

640 x 480

Drop test

1 m

Power supply

Li-Ion battery

Interface

USB

Image and video storage

SD card

AV output

NTSC / PAL

Audio input

built-in microphone

Brightness adjustment

in steps of 10, adjustable on the main unit

Battery life per battery charge

5 h

Charging time

3 h

Charging temperature

+10 ... +50 °C (+50 ... +104 °F)

Operating temperature

0 ... +60 °C (+32 ... +140 °F)

Storage temperature

0 ... +60 °C (+32 ... +140 °F)

Protection class

IP57

Dimensions

240 x 154 x 47 mm (9.4 x 6.0 x 1.9 ")

Weight

1.3 kg (2.9 lbs)

More images of the borescope PCE-VE 1000:

The illumination of the PCE-VE 1000 borescope is very bright.
The illumination of the PCE-VE 1000 borescope is very bright and helps to identify objects within the area of inspection.

When inspecting objects the borescope clearly shows the details within machines, engines or other parts.
When inspecting objects the borescope clearly shows the details within machines, engines or other parts.

There are several attachable borescope cables attachable to the PCE-VE 1000.

There are several attachable borescope cables attachable to the PCE-VE 1000.

On the right side of the borescope you can find the slots.

On the right side of the borescope you can find the slots where you can insert the SD card, plug in the charger and insert the AV and USB cable.

The display of the borescope gives you a clear image.

The display of the borescope gives you a clear image. In addition to that the user interface is designed ensure an easy operation during inspections.

The fold-out foot of the PCE-VE 1000 borescope.

The fold-out foot of the PCE-VE 1000 borescope makes inspections a lot more easy now. When the supporting fold-out foot is used you can completely focus on placing the borescope cable in the right area. In addition to the foot the borescope also possesses a thread at the rear side of the device which can be used to install the instrument on a tripod.

The sun visor of the borescope PCE-VE 1000.

The sun visor of the borescope PCE-VE 1000 allows inspections where direct sunlight may affect the image presentation on the screen. The visor can be adjusted in the angle that is needed.  It also serves as a protection for the screen.

Please note: Not to be used for medical purposes!

Scope of delivery of the PCE-VE 1000 borescope

1 x PCE-VE 1000 borescope
1 x charger
1 x SD card (8GB)
1 x USB cable
1 x AV cable
1 x carrying case
1 x user manual

Scope of delivery for the PCE-VE 1000 borescope.

Optional accessories of the PCE-VE 1000 borescope

GB-15-PCE-VE-N
Guide weight for series PCE-VE 1000, Ø 15 mm, only for a borescope with cable Ø 5.5 mm

Guide weight Ø 15 mm for the borescope PCE VE 1000.

GB-25-PCE-VE-N
Guide weight for series PCE-VE 1000, Ø 25 mm, only for a borescope with cable Ø 5.5 mm

Guide weight for borescope PCE VE 1000.

MAG-H-VE-N
2 in 1 hook and magnet for PCE-VE 1000 borescope (5.5 mm)

2 in 1 hook and magnet for the borescope PCE VE 1000.

SOFT-M-VE-N
Measurement software for PCE-VE 1000 borescope (only for 5.5 mm probes)

Measurement software for the borescope PCE VE 1000.

PCE-VE-N-SCS
1 m semiflexible probe, Ø 3.9 mm, for PCE-VE 1000 borescope

1 m semiflexible probe, Ø 3.9 mm for the borescope PCE VE 1000.

PCE-VE-2in1-N
2 in 1: 1 m semiflexible probe, Ø 4.9 mm, with front and side camera, for PCE-VE 1000 borescope

2 in 1: 1 m semiflexible probe, Ø 4.9 mm for the borescope PCE VE 1000.

RM-39-PCE-VE
Mirror sheath for 3.9 mm probe 1000, 90 º mirror/rotary in 360 º/length: 15 cm

Mirror sheath 3,9 mm / 90 º mirror / rotary in 360 º / length: 15 cm for the borescope PCE VE 1000.

PCE-VE-N-SC1
Probe for PCE-VE 1000 borescope, for 1 m/Ø 5.5mm/semiflexible

Probe 1 m/Ø 5.5mm/semiflexible for the borescope PCE VE 1000.

PCE-VE-N-SC2
Probe for PCE-VE 1000 borescope, for 2 m/Ø 5.5mm/semiflexible

Probe 2 m/Ø 5.5 mm/semiflexible for the borescope PCE VE 1000.

PCE-VE-N-SC10
Probe for PCE-VE 1000 borescope, for 10 m/Ø 5.5mm/semiflexible

Probe 10 m/Ø 5.5 mm/fleixble for the borescope PCE VE 1000.

PCE-VE-2W1-N
Rotary probe for PCE-VE 1000 borescope, 1 m/Ø 6 mm/flexible.

Rotary probe 1 m/Ø 6 mm/flexible for the borescope PCE VE 1000.

HT-55-PCE-VE
Support for borescope probes, length: 60 cm/Ø 8 mm/with handle.

Support 60 cm/Ø 8 mm/with handle for the borescope PCE VE 1000.

Techncial information of the PCE-VE 1000 borescope.
