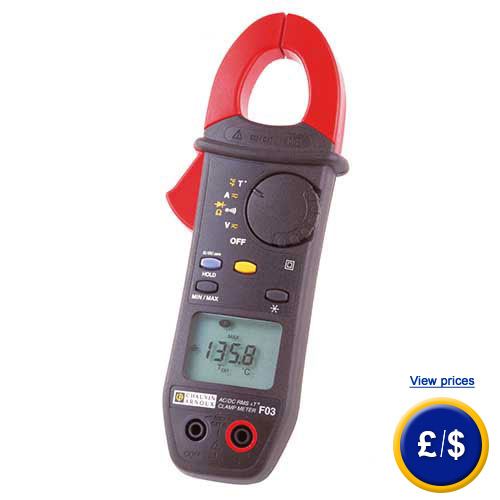

Clamp Meter F03 Clamp meter for measuring alternating and direct current / AC/DC voltage measuring Temperature measuring / automatic shutdown function / high voltage warning
|
The Clamp Meter F03 is designed for performing contact-free measurements of alternating and direct current. By using the clamp meter, an electrician is able to measure current easily. Besides current measurements, the clamp meter is able to determine voltage. Measuring electrical resistance or measurements of electrical semiconductor devices with the clamp meter is not a problem either. In addition, the Clamp Meter F03 can also determine the internal and external temperature. These features make the clamp meter an ideal device for electricians, service technicians and installers. If there are any questions about this Clamp Meter F03 have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you in all clamp meters and all products in the field of measuring instruments, regulation and control and scales.
|
|
- AC/DC measuring (A, V)
- High voltage warning
- Measuring of the internal and external temperature
|
- Continuity tester
- Measuring of the electrical resistance
- Automatic shutdown function
|
Technical Specifications of the Clamp Meter F03
|
DC A measurements
|
Range
|
Resolution
|
Accuracy
|
0.2 A … 39.99 A
|
10 mA
|
± 1.5 % + 10 digits
|
40 A … 399.9 A
|
0.1 A
|
± 1.5 % + 2 digits
|
400 A … 600 A
|
1 A
|
± 1.5 % + 2 digits
|
AC A measurements
|
|
|
Range
|
Resolution
|
Accuracy
|
0.2 A… 39.99 A
|
10 mA
|
± 1.5 % + 5 digits
|
40 A … 399.9 A
|
0.1 A
|
± 1.5 % + 2 digits
|
400 A … 600 A
|
1 A
|
± 1.5 % + 2 digits
|
DC V measurements
|
|
|
Range
|
Resolution
|
Accuracy
|
0.2 V … 39.99 V
|
10 mV
|
± 1 % + 5 digits
|
40 V … 399.9 V
|
0.1 V
|
± 1 % + 2 digits
|
400 V … 600 V
|
1 V
|
± 1 % + 2 digits
|
AC V measurements
|
|
|
Range
|
Resolution
|
Accuracy
|
0.2 V … 39.99 V
|
10 mV
|
± 1 % + 5 digits
|
40 V … 399.9 V
|
0.1 V
|
± 1 % + 2 digits
|
400 V … 900 V
|
1 V
|
± 1 % + 2 digits
|
Electrical resistance measurements
|
|
|
Range
|
Resolution
|
Accuracy
|
0 Ω … 399.9 Ω
|
0.1 Ω
|
± 1 % + 2 digits
|
400 Ω … 3999 Ω 1 Ω
|
1 Ω
|
± 1 % + 2 digits
|
Temperature measurements (internal)
|
|
-10.0 °C … +50.0 °C
|
0.1 °C
|
± 1.5 °C
|
Temperature measurements (external K-type thermal probe)
|
|
-50 °C … +399.9 °C
|
0.1 °C
|
± 1 % + 1.5 °C
|
400 °C … 1832 °C
|
1 °C
|
± 1 % + 2.7 °C
|
Continuity testing
|
|
|
Acoustic signal
|
R < 40 Ω
|
|
Diode testing
|
|
|
0.000 V … 3.199 V
|
1 mV
|
± 1 % + 2 digits
|
General technical data of the Clamp Meter F03
|
Display
|
LCD with 4,000 digits
|
Clamp diameter
|
< 26 mm
|
Power supply
|
9 V battery
|
Operating duration
|
25,000 measurements at 10 seconds
|
Dimensions
|
70 x 193 x 37 mm
|
Weight
|
260 g
|
Protection class
|
IP40
|
Operating conditions
|
0 … 50 °C 0 … 90 % humidity
|
Standards
|
EN 61010-1 EN 61010-2-032 Installation category: III Operating voltage: 600 V
|
Electromagnetic compatibility
|
EN 61326-1
|
Delivery contents of the Clamp Meter F03
|
1 x Clamp Meter F03, 1x set of measuring lines, 1 x carrying case, 1 x 9 V battery, 1 x user manual
|
