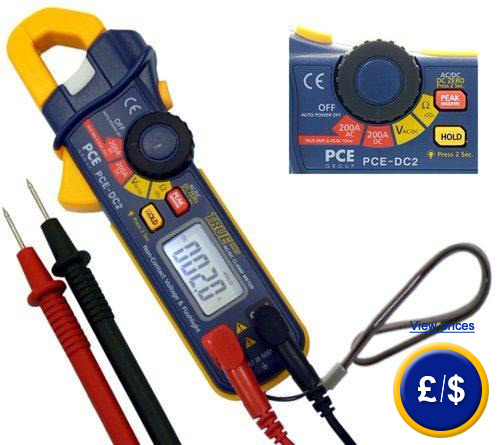

PCE-DC2
clamp meter
digital
device for measuring AC/DC
current, AC voltage and
resistance,
with a maximum
aperture of 18mm |
|
The PCE-DC1 clamp meter has
been designed to detect,
indirectly, AC/DC current
and ohms. The clamp has
white LEDs integrated to
allow for the point of
measurement to be
illuminated, and a function
to test the voltage without
contact. The reduced
dimensions of this device
allow for measurements to be
taken in places with limited
access. The backlit display
ensures that it is easy to
read, even in places with
limited light available,
such as electrical cabinets
or in cabling ducts. Testing
voltage without contact
helps when detecting
dangerous power lines, and
it allows makes it easier to
detect the location of cuts
in power lines.
Here is an overview of
al the clamp meters
available from PCE Group.
|
|
 |
|
-
LCD with 3 2/3 positions,
backlit, clamp for
continuous current
- Measures AC/DC
current, AC voltage and ohms
-
Memory function, zero reset
for the DCA, test voltage
without contact
-
Illumination of the point of
measurement
-
Automatic range selection
-
Auto shut-off
- Aperture
of the clamp: 18mm
View
or print the user's manual
|
|
Technical specifications |
|
AC
current
(50/60 Hz) real effective value |
Sector / accuracy
200 AAC /
±2.5% + 8 digits |
|
DC
current |
Sector / accuracy
200 ADC / ±2.0% +
5 digits |
|
Testing AC voltage (50/60Hz)
real effective value |
600 VAC ±(1.5% + 8 digits) |
|
Testing
DC voltage |
600
VDC ±(1.5% + 2 digits) |
|
Ohms |
999.9 Ω ±(1.5% + 8 digits) |
|
Illumination of measurement
point |
white LEDs |
|
Diameter
of the conductor |
maximum of
18mm |
|
Display |
backlit LCD with 3 2/3 positions |
|
Power |
2 AAA batteries |
|
Enclosure |
PVC |
|
Dimensions |
164 x 65 x 32mm
|
|
Weight |
175g |
|
Standards |
EN61010-1; CAT II / 600 V
EN61010-2-032; CAT III / 300 V |
|
Using the PCE-DC2 mini clamp
meter |
 |
 |
|
Contents
PCE-DC2 clamp meter,
2 measurement cables, a bag,
2 batteries and user's
manual |
|
Optional accessories |
|
ISO
calibration / certification
for companies
who wish to incorporate the clamp meter into
their group of tools for internal control or
to perform anual recalibrations.
ISO
certification includes a laboratory
calibration and a document with all the
measurement values and the name of the
company or person which own's the device. |
 |
|
 |
 |
|
