PCE-HT71 climatological
recorder with USB port USB
mini device for prolonged measurement of temperature
and relative humidity / 32k memory/ USB port/ software to calculate dew point/
powered by a long-life lithium battery
|
|
The PCE-HT71 climatological recorder detects air
temperature and humidity and stores readings in its internal memory. This
PCE-HT71 climatological recorder has a compact format and a wide memory
capacity (up to 32.000 values / 16.000 values for each parameter) and it is
mainly used as a data logger, in supermarket refrigeration units,
refrigerated transport, warehouses and other temperature controlled
environments for PC. The PCE-HT71 climatological recorder
works as a data logger to record climatological data in spaces with controlled ambient conditions. Data can be
transfered to a computer or a laptop via the USB port. The PCE-HT71 climatological recorder can be manually
activated or can be previously programmed to start and stop on specific dates
and times as well as setting the intervals at which measurements will be
taken, allowing it to be left to record data in situ. Once transfered, data
can be analysed on a computer. The software included in the delivery also
calculates dew point. The internal clock allows the user to accurately assess
the results. One special characteristic is that the PCE-HT71 is powered by a
removeable 3.6V, long-life lithium battery. The battery
life is approx. of
one year. The
link shows an overview of
Data loggers
available from PCE Instruments.
|
|

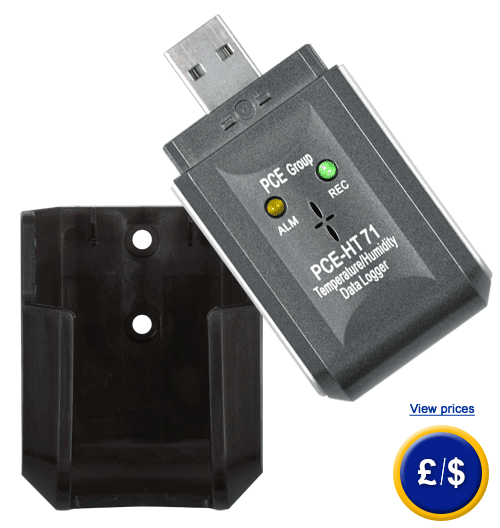

The image above shows the PCE-HT71 climatological recorder with the wall mount. |
- Storage capacity:
32 K
- USB port
- A software
for calculating dew point and analysing data in a computer is
included.
- Wall
mount included in the delivery
- Adjustable
date/time clock (it loses 3 s / month)
- Adjustable measurement
quota (2s ... 24h)
- Long-life
lithium battery
- non-volatile
EEPROM
- staus
idicated by way of 2 LEDs, (including alarm)
- programmable
alarm limits across entire measurement range
- replacement battery
|
View / print user’s manual of the PCE-HT 71 climatological recorder
 |
|
Technical
specifications |
|
Measurement range
|
0 ... 100% H.r.
/ -35 ... +80 ºC
|
|
Accuracy
|
±3 % H.r.
(20 ... 80 %) and ±5 % / ±1 °C
|
|
Resolution
|
0,5 % H.r.
/ 0,1 °C
|
|
Sensors
|
internal (humidity
and temperature)
|
|
Memory
|
max.
32.000 measurement values (16.000 for each parameter)
|
|
Measurement quota / measurement
intervals
|
adjustable,
10 s, 20 s, 1 min, 10 min, 20 min ... 30 min
|
|
Alarm limit
|
adjustable
|
|
Status indicator
|
Through 2 LED’s (recording data / alarm)
|
|
Port
|
USB
|
|
Software
|
Included in the delivery
|
|
Dew point temperature
|
calculated by the software once data has been
transmitted (accuracy: ±2°C)
|
|
Power
|
3.6V lithium
battery
(life: approx. 1 year)
|
|
Positioning
|
- can be
wall mounted or placed anywhere on a flat surface, for instance on a table
|
|
Operating conditions
|
-35 ...+80 °C
/ 0 ... 100 % H.r.
|
|
Case
|
ABS plastic
|
|
Software
|
Windows 2000 / XP / Vista
|
|
Weight
|
25
g
|
 |
 |
 |
 |
|

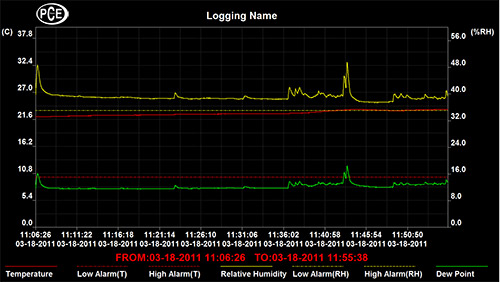

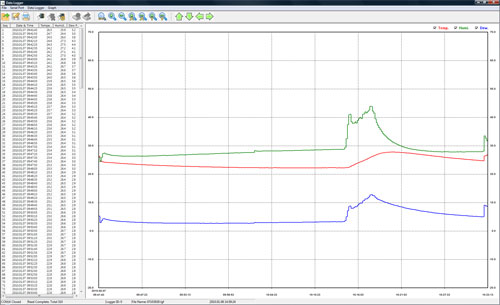

Software |
|
Professional software for programming the device and for analysing
data on computers. The software has the following features:
- data columns and graphical representation (x-t diagram with date and
time), a series of data can be exported to other programmes such as MS Excel.
The English software is in the Spanish user’s manual. It also allows
the user to adjust the device's parameters via a computer.
|
|
Delivery contents
1 x PCE-HT71 climatological recorder, 1 x wall mount, 1 x battery, 1 x
software and user’s manual.
|
 |
 |
|
Here you will find an overview of all
the
measuring instruments
available at PCE Group. |
