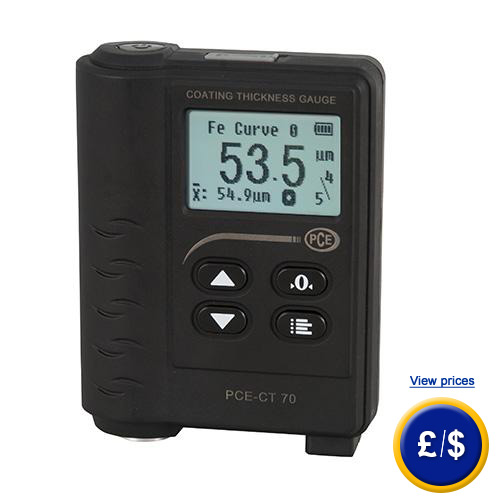

Coating
Thickness Meter PCE-CT 70
Coating thickness meter to capture the thickness of a magnetical
inductive method /
very compact design / precise, nondestructive measurement method /
data transfer via USB cable / simple operation / simple and reliable
|
The
coating thickness meter PCE-CT 70 is a very compact device. The measurement
method, which the coating thickness meter works with is the determination by the
magnetic inductive method (ISO 2178). This method is an electromagnetic process
for a nondestructive material test. It is used to determine the thickness of
magnetically neutral coating on magnetic material. The coating thickness meter
PCE-CT 70 is ideal for uncomplicated and reliable applications on site. With its
integrated tester the coating thickness can be determined quickly and
nondestructive. The coating thickness meter PCE-CT 70 is designed for
nondestructive, quick and precise measurements and is very simple in its
operation. The measured data can be transferred easily via USB to a computer.
The coating thickness meter can be applied especially in the refinement
industry, electric plating, constructions of ships, bridges and planes, and the
chemical and machineries industry. If there are any questions about this Coating
Thickness Meter PCE-CT 70 please
have a look at the technical specification below or call:
UK customers +44(0) 23 809 870 30 / US customers
+1-410-387-7703. Our technicians and engineers will gladly advise you regarding all
coating
thickness meters and all products in the field of measuring
instruments, regulation
and control and scales.
|
|
|
- Measurement range 0 ... 1500 µm
- Compact and simple in its operation
- Magnetical inductive method
|
-
Data transfer via USB
- Nondestructive measurements
- Quick and precise
|
Technical Specifications
of the Coating Thickness Meter
|
Method
|
Magnetical
inductive
|
Measurement
range
|
0
... 1500 µm
|
Resolution
|
0
... 999 µm: 0.1 µm; ≥ 1000 µm: 1 µm
|
Accuracy
|
up
to 100 µm: ± 1.5 µm; 100 ... 1500 µm: ≤ 1.5 %
|
Data
storage
|
up
to 1500 measurements
|
Display
|
LCD
display with background lights
|
Power
Supply
|
3
x 1.5 V AAA batteries
|
Surrounding
temperature
|
0
... +50 °C
|
Dimensions
|
88
x 67 x 30 mm
|
Weight
|
120
g
|
Images
of the Coating Thickness Meter PCE-CT 70
|
The coating thickness meter PCE-CT 70 with an integrated sensor for
nondestructive measurements.
|
The coating thickness meter PCE-CT 70 features a USB port for the data transfer
to a computer
|
The coating thickness meter PCE-CT 70 features a LCD display with background
lights.
|
The calibration folios and calibration plate is included in the delivery of the
coating thickness meter PCE- CT 70
|
Delivery
Content of the Coating Thickness Meter PCE-CT 70:
|
1 x Coating Thickness Meter PCE-CT 70, 5 x standard folios, 1 x calibration
plate, 3 x 1.5 V AAA batteries, 1 x USB cable, 1 x instruction manual
|
|
|
