Crane Scale PCE-DDM series
mobile crane scale / measurement range up to 50 t / PEAK function /
with remote indication / incl. shackle and transport case

The crane scale PCE-DDM Series is ideal to operate mobile drag force measurements, e.g. which are made by consultants. Quality material was used for the production of the crane scale. Although the high measurement capacity, it enables a compact construction with a low net weight. The crane scale PCE-DDM series is delivered with a remote indication und two shackles in a transport case. Interesting functions of the crane scale are PEAK Hold function, summation function plus different units of measurement like e.g. kg / t / lb / N or kN. The instrument is only suitable for drag force measurements, for compressive force there are another instruments, e.g. PCE-FB series. If there are any questions about this crane scale, please have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703.. Our engineers and technicians will gladly advise you regarding the crane scale or any other products in terms of regulation and control, or scales and balances of PCE Instruments.

  Information for the Crane Scale PCE-DDM series  User manual for the Crane Scale PCE-DDM series  EC certificate for the Crane Scale PCE-DDM series  Video for the Crane Scale PCE-DDM series  Crane Scale PCE-DDM series: Further Images  Technical specifications for the Crane Scale PCE-DDM series

Crane scale PCE-DDM series

- measurement range up to 50.000 kg
- low net weight
- compact construction
- long life of battery
- funk display

- PEAK Hold function
- summation function
- units of measurement: kg / t / lb / N / kN
- adjustable gravitation range
- shackle and transport case included

Technical Specifications of the Crane Scale PCE-DDM series

model

range

resolution

min **

weight

with shackle

PCE-DDM 3

3.000 kg / 30 kN

1 kg / 10 N

10 kg

2 kg

5 kg

PCE-DDM 5

5.000 kg / 50 kN

2 kg / 20 N

40 kg

3 kg

6 kg

PCE-DDM 10

10.000 kg / 100 kN

5 kg / 50 N

100 kg

11 kg

25 kg

PCE-DDM 20

20.000 kg / 200 kN

10 kg / 100 N

200 kg

18 kg

49 kg

PCE-DDM 50

50.000 kg / 500 kN

20 kg / 200 N

400 kg

39 kg

128 kg

** The crane scale shows also the weight below the minimum load. Our description of the accuracy applies first from the minimum load, as in the table listed.

accuracy

± 0,1 % of measurement range

taring range

max. 20 % of measurement range

display

LCD with 22 mm digit height

unit of measurement

kg / t / lbs / N / kN

funk range

ca. 80 m

sampling rate

2,5 Hz

operation temperature

-10 ... +40 °C

power

3 x AA 1,5 V batteries

operation time

ca. 50 h

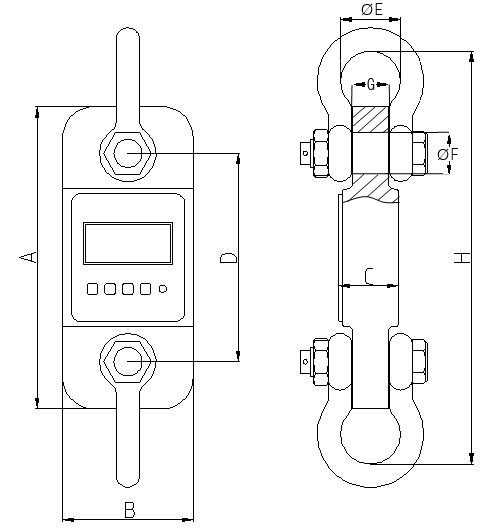

Technical drawing

Technical drawing of the crane scale PCE-DMM series

The dimensions of the crane scale are denoted in mm.

model

A B C D ØE ØF G H

material

PCE-DDM 3

260

123

37

195

51

24

30

365

aluminium

PCE-DDM 5

285

123

57

210

58

27

34

405

aluminium

PCE-DDM 10

320

120

57

230

92

41

54

535

steel

PCE-DDM 20

420

128

74

260

127

54

71

660

steel

PCE-DDM 50

465

150

104

305

184

74

101

930

steel

Delivery Content of the crane scale PCE-DDM series

1 x crane scale PCE-DDM, 1 x hand display, 2 x shackle, 1 x transport case, batteries and manual
