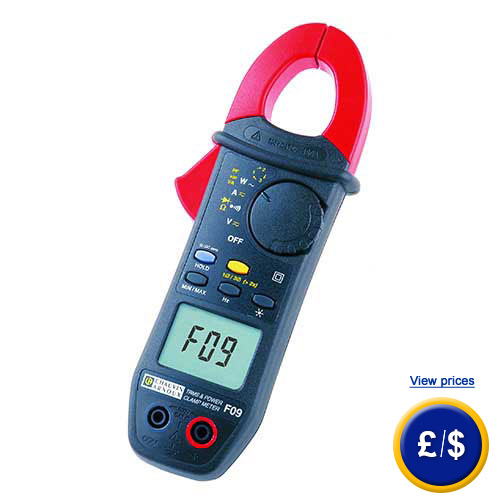

Current Clamp F09 Current clamp with detection of rotating magnetic fields / AC / DC measuring electrical power measuring / automatic shutdown function / inrush current measuring
|
With the Current Clamp F09 you will be able to measure the alternating and direct current, as well as the voltage. Besides TRMS measurements the current clamp is able to determine the inrush currents of electrical devices. The current clamp can also meter the power factor of electrical loads (1 phase and 3 phase). Measuring the electrical resistance and testing diodes with the Current Clamp F09 is not a problem either. When putting the current clamp around an electrical conductor, it can detect the rotating magnetic fields via the inductive fields of the conductor. Other useful features of the current clamp are a min-max function, a backlit LCD display and an automatic shutdown function. If there are any questions about the Current Clamp F09 have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you in all clamp meters and all products in the field of measuring instruments, regulation and control and scales.
|
|
- AC / DC measuring (A, V) - High voltage alarm - Inrush current measuring - Electrical power measuring (1 phase, 3 phase)
|
- Detection of rotating magnetic fields - Electrical resistance measuring - Automatic shutdown function - Backlit LCD display
|
Technical Specifications of the Current Clamp F09
|
DC A measurements
|
Range
|
Resolution
|
Accuracy
|
0.2 A … 39.99 A
|
10 mA
|
± 1.5 % + 10 digits
|
40 A … 399.9 A
|
0.1 A
|
± 1.5 % + 2 digits
|
400 A … 600 A
|
1 A
|
± 1.5 % + 2 digits
|
AC A measurements
|
|
|
Range
|
Resolution
|
Accuracy
|
0.2 A… 39.99 A
|
10 mA
|
± 1.5 % + 10 digits
|
40 A … 399.9 A
|
0.1 A
|
± 1.5 % + 2 digits
|
400 A … 600 A peak
|
1 A
|
± 1.5 % + 2 digits
|
DC V measurements
|
|
|
Range
|
Resolution
|
Accuracy
|
0.2 V … 39.99 V
|
10 mV
|
± 1 % + 5 digits
|
40 V … 399.9 V
|
0.1 V
|
± 1 % + 2 digits
|
400 V … 600 V
|
1 V
|
± 1 % + 2 digits
|
AC V measurements
|
|
|
Range
|
Resolution
|
Accuracy
|
0.2 V … 39.99 V
|
10 mV
|
± 1 % + 5 digits
|
40 V … 399.9 V
|
0.1 V
|
± 1 % + 2 digits
|
400 V … 900 V
|
1 V
|
± 1 % + 2 digits
|
Frequency measurements range
|
|
|
Range
|
Resolution
|
Accuracy
|
10.00 Hz … 39.99 Hz
|
0.01 Hz
|
± 0.4 % + 1 digit
|
40.0 Hz … 399.9 Hz
|
0.1 Hz
|
± 0.4 % + 1 digit
|
400 Hz … 3999 Hz
|
1 Hz
|
± 0.4 % + 1 digit
|
4 kHz … 19.99 kHz
|
10 Hz
|
± 0.4 % + 1 digit
|
Electrical power measurements
|
|
Range
|
Resolution
|
Accuracy
|
5 W … 3999 W
|
1 W
|
± 2 % + 1 digit
|
4.00 kW … 39.99 kW
|
10 W
|
± 2 % + 1 digit
|
40.0 kW … 240 kW
|
100 W
|
± 2 % + 1 digit
|
Electrical resistance measurements
|
|
Range
|
Resolution
|
Accuracy
|
0 Ω … 399.9 Ω
|
0.1 Ω
|
± 1 % + 2 digits
|
400 Ω … 3999 Ω 1 Ω
|
|
± 1 % + 2 digits
|
Continuity testing
|
|
|
Acoustic signal
|
R < 40 Ω
|
|
Diode testing
|
|
|
0.000 V … 3.199 V
|
1 mV
|
± 1 % + 2 digits
|
Measuring adapter function
|
|
|
range
|
resolution
|
accuracy
|
0.00 mV … 399.9 mV
|
programmable
|
± 1% + 2 digits
|
0.4 V … 3.999 V
|
programmable
|
± 1% + 2 digits
|
General technical data of the Current Clamp F09
|
Display
|
LCD with 4,000 digits
|
Clamp diameter
|
< 26 mm
|
Power supply
|
9 V battery
|
Operating duration
|
25,000 measurements at 10 seconds
|
Dimensions
|
70 x 193 x 37 mm
|
Weight
|
260 g
|
Protection class
|
IP40
|
Operating conditions
|
0 … 50 °C 0 … 90 % humidity
|
Standards
|
EN 61010-1 EN 61010-2-032 Installation category: III Operating voltage: 600 V
|
Electromagnetic compatibility
|
EN 61326-1
|
Delivery contents of the Current Clamp F09
|
1x Current Clamp F09, 1x set of measuring lines, 1x carrying case, 1x 9 V battery, 1x manual description
|
