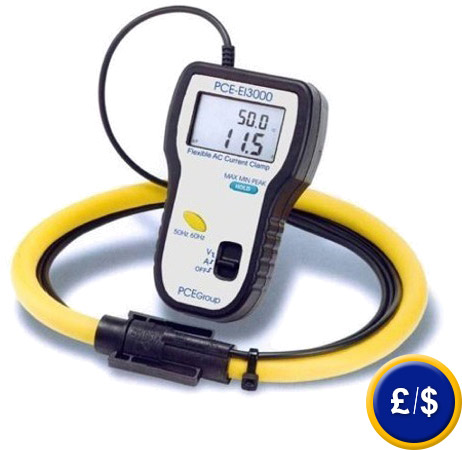

PCE-EI-3000 Current detector
current detector for cables up to 170 mm in diameter and 3000 Amp
|
|
This
current detector, with it's flexible clamp, can measure currents in
large cables up to 170mm in diameter, something that could not be
done up to know with a standard current detector.
It's flexible clamp allows for it to be used in
narrow spaces with difficult access,
and in areas where it's impossible to use a
normal current detector. The device measures
frequencies over a network with currents up to 3000 Amp AC y
voltage up to 600 ACV. Here you will find a
general
overview where can locate all types of current meters that might
be of use to you.
|
|
PCE-EI-3000 current detector
|
- True RMS
- current up to 3000 Amp AC
- current up to 600 V AC
- 4+4 digit LCD display
- automatic range select
- frequency indicator
- rapid measurement of peak
levels (30 μs)
- MAX / MIN function
|
- automatic disconnection
- maximum clamp diameter: 170 mm
- flexible recording of measurement values
- DIN ISO calibrated
View or
print the user's manual
|
|
Technical
specifications |
|
AC Amp Trms
|
Range: 300 A /
1000 A / 3000 A
Resolution: 0.1 A / 0,1 A / 1 A
Accuracy: ± 1 % of measuring range. |
|
AC V Trms
|
Range:
4.0 to 600 V
Resolution: 0,1 V
Accuracy: ± 0.5 % ±
5 dgts
|
|
Frequency
|
Range:
45 to 65 Hz
Resolution: 0.1 Hz
Accuracy: ± 0.2 Hz
|
|
maximum clamp diameter
|
170 mm
|
|
minimum radius
|
35 mm
|
|
Clamp cable diameter |
14 mm
|
|
Indicator
|
4 + 4
digit LCD display
|
|
Temperature range
|
-10 to +85 °C
|
|
Power
|
2 - 1.5V AA
batteries
|
|
Dimensions
|
130 x 80 x 43 mm
|
|
Weight
|
430 g
|
|
Photo of the PCE-EI-3000 current
detector in use |
|
PCE-EI-3000 current detector measuring
the current of a central transformer. |
| Applications |
|

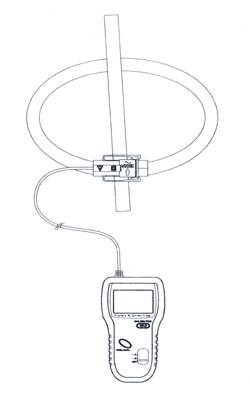

The current detector
is easy to use. Take into account the
mode of application indicated. The following images help
you.
Close the clamp with care and check that it has been attached
correctly. Use appropriate clothin for this type
of work, footwear with rubber soles should provide adequate
protection. |
|
Contents:
PCE-EI-3000 current detector,
1 measuring clamp with 1.5 m cable (with
closed connection), 2
batteries and user's manual
|
|
Optional
components
- ISO certification included for companies that
wish to use the device as a tool for internal control or to
perform annual recalibrations.
The ISO certification contains a laboratory calibration
certificate and a control with all the calibration values.
|
|
 |
 |
|
Here you will find an overview of all the measuring instruments available at PCE Group. |
|
