 Current Transformer Plug PCE-LCTB62 series
 Current transformer plug up to 800 A / 1 A or 5 A output / for busbars
 for operation with remodeling transformer or power analyzer

By means of the current transformer plug electricity up to 800 A can be measured. The current transformer plug PCE-LCTB62 is to install on a busbar. Besides measuring the current of busbars it is also designed to determine currents in cables. The measured current will be optionally  transformed into 1 A or 5 A. Thus the measured current is facilitated for use in areas of processing technique. If there are any questions about this measuring transformer plug PCE-LCTB62 series, please have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you in all transformers and all products in the field of measuring instruments, regulation and control and scales

 Current Transformer Plug  PCE-LCTB62 series  User manual for the  Current Transformer Plug  PCE-LCTB62 series  EC certificate for the  Current Transformer Plug  PCE-LCTB62 series  Video for the  Current Transformer Plug  PCE-LCTB62 series   Current Transformer Plug  PCE-LCTB62 series  further Images  Technical specifications of the  Current Transformer Plug  PCE-LCTB62 series

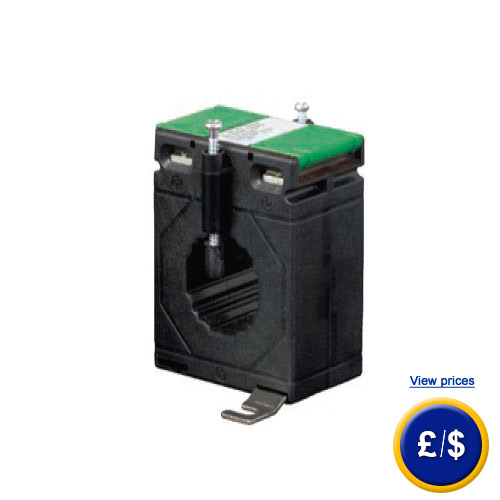

Current Transformer Plug PCE-LCTB62 series

- Measuring transformer plug up to 800 A
- 1 A or 5 A output
- Busbar and cable installation

- Various measuring ranges
- Low power input
- Compact dimensions

Technical Specifications

Model

PCE-LCTB62/20(40)

PCE-LCTB62/30(40)

Primary winding (input max.)

50 ... 400 A

50 ... 800 A

Secondary winding (output)

1 A / 5 A

1 A / 5 A

Maximal voltage

720 V

720 V

Maximal size busbar

20 x 12 mm

2 x 15 x 6 mm

30 x 10 mm

2 x 25 x 10 mm

Maximal cable caliber

---

30 mm

Depth

62 mm

62 mm

Width

40 mm

40 mm

Surrounding temperature

- 20 ... +45 °C

- 20 ... +45 °C

Model

PCE-LCTB62/30(50)

PCE-LCTB62/40(40)

Primary winding (input max.)

100 ... 800 A

50 ... 800 A

Secondary winding (output)

1 A / 5 A 1 A / 5 A

Maximal voltage

720 V

720 V

Maximal size busbar

30 x 10 mm

2 x 25 x 10 mm

40 x 10 mm

2 x 30 x 10 mm

Maximal cable caliber

30 mm

31 mm

Depth

62 mm

62 mm

Width

50 mm

40 mm

Surrounding temperature

- 20 ... +45 °C

- 20 ... +45 °C

Current Transformer Plug PCE-LCTB62 series

Delivery content

1x current transformer plug PCE-LCTB62 series, 1 x instruction manual

further information about the  Current Transformer Plug  PCE-LCTB62 series

return to homepage.

Similar products to the Current Transformer Plug PCE-LCTB62 series:

- Current Transformer Plug PCE-LCTM series
  (measuring transformer for alternating current up to 60 A, busbars, 1 A or 5 A output)

busbar current transformer PCE-LCTM series

- Current Transformer Plug PCE-LCTS series
  (potential transformer for round lines, up to 600 A, 1 A or 5 A output)

Current Transformer Plug PCE-LCTS series

- Current Transformer Plug PCE-LCTR series
  (potential transformer for round lines, up to 600 A, 1 A or 5 A output)

Current Transformer Plug PCE-LCTB62 series

- Current Transformer Plug PCE-LCTB45 series
  (measuring transformer for busbars and cables up to 400 A, compact design)

- Current Transformer Plug PCE-LCTB225 series
  (current transformer for large busbars up to 7500 A AC, 1 A or 5 A output)

Current Transformer Plug PCE-LCTB8225 series
