Decibel meter series CR-260 (class I and II) integrated decibel meter with a wide measurement range, frequency filters (depending on the model) and interface RS-232 for online transmission
|
The decibel meter of CR-260 series has a selection of integrated systems of very simple handling to measure noise in workplaces for labour protection. This comfortable decibel meter meets the standards DIN IN 61672-1: 2003 (IEC 61672-1: 2002), therefore it corresponds to the modern devices of classes 1 and 2. The decibel meter includes the most common international measurement parameters. It has a very simple description how to handle the menu. At the following link you can find other sound level meters.
|
|
This series has the following measurement functions depending on the class I or II.
- Current Value of the sonorous level dB (A) - Average level (LAeq) - Acoustic Peak Level (LCPeak) - Acoustic max. Level(LAmax) - Acoustic min. Level (LAmin) - Fast Valuation “Fast”, “Slow” and impulses “Impuls” - The CR-263 and CR-264 decibel meters have octave filters View or print the user manual for the decibel meter
|
Series CR-260 decibel meter
|
Easy to use |
With the button “Calibrate” you can initiate the calibration and with the arrows you can select the suitable measurement range. With the “Start” and “Stop” buttons, you will be able to begin and finalise the measurement. During the measurement, a numerical representation of all the values will appear, and in addition the current value will appear in a bar chart form. By pressing the “Graph” button the values will be represented in a diagram form with representation of the level of sound in the display. All the values appear simultaneously in the display. The last measurement always remains in the meter and it appears in the screen automatically whenever the meter is switched on. With the “Mode” key, you can change the fast “Fast”, slow “Slow” and impulses “Impuls” temporary evaluations. If you press “Mode” again, the decibel meter with octave filter change between operation with a broadband and operation with filter.
|
Uses |
- Noise measurement for labour protection
- Environmental noise measurement to protect the environment
- To choose hearing protectors
15th of February 2003: The new EU guidelines and norms were approved to substitute previous norms. New sound peak and minimum level values were established. The sound level meter measures these specific magnitudes. In addition it is possible to select evaluation with impulses. The prolonged leq sonorous level is simultaneously shown in the valuations so it can be inmediately read. The types with octave band filter of band will give you additional information about the percentage of frequency, which is very useful if you evaluate the protectors.
|
|
Models |
-
CR-261 class 1 integrated decibel meter.
-

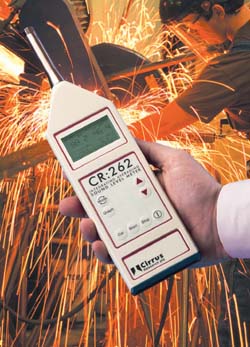

CR-262 class 2 integrated decibel meter.
-
CR-263 class 1 integrated decibel meter with octave band filter.
-
CR-264 class 2 integrated decibel meter with octave band filter.
|
Display indicators of the series CR-260 |
|
|
Technical specifications: |
Norms |
DIN EN 60651: 1979 class 1 or 2 DIN EN 60804: 1985 class 1 or 2 DIN EN 61672-1: 2003 Kl. 1 or 2, with filters: DIN EN 61260: 1998 class 1 ANSI S1.4 |
Temporary evaluation |
F (“Fast”), S (“Slow”), I (“Impulse”), Peak |
Frequency evaluation |
canal 1 A, canal 2 C, for the peak measurement data |
Measurement data |
With wideband: LAsound level dB (A), temporary evalu. F or I LAeq prolonged level dB (A), temporary evalu. F and I LAmax max. level dB (A), temporary evalu. F or I LAmin nin. level dB (A), temporary evalu. F or I LCpeak peak value dB (C) Measurement duration With filter: Frequency selection LZF with filter dB(Z), temporary evalu. F LZeq prolonged filter sound level
LAeq, LCeq, LZeq prolonged level sound Measurement duration
|
Measurement range |
Wideband: class 1: 24 ... 140 dB, Peak: 143 class 2: 26 ... 140 dB, Peak: 143 Filter: Octaves: 15 ... 140 dB (1 kHz octave band) |
Memory |
Last measurement is memorized |
Operation with filter |
Octave band 31 Hz ... 16 kHz |
Sound level |
Wideband: class 1: 21 dB (A) class 2: 23 dB (A) Filter Octave band: 15 dB (Z) for 1 kHz |
Indicator |
Graphic and almost analog LCD; measuring parameter selection with range deviation indication, battery, time and frequency evaluation, measurement duration, brief real time Leq (wideband), graphic indicator of the octave bands, measurement range, settings |
Power supply |
2 x alkaline batteries LR6/AA of 1.5 V |
Battery life |
> 24 h (wideband), >12 h (filter) |
Environmental conditions |
- 10 ... + 50 °C/< 95 % H.r. |
Dimensions |
class 1: 340 x 75 x 25 mm class 2: 300 x 75 x 25 mm |
Weight |
450 g |
Electromagnetic data |
EN 55022:1998998 EN 61000-4-2:1995 EN 61000-4-3:2002 EN 61000-4-8:1994 |
Delivery content: 1 x decibel meter (class I or II, with or without octave band filter depending on the class), user manual |
|
Optional - Acoustic calibrators for the continuous recalibration of the sound level meter of the situation or at workplaces (depending on the model class I or II/94 class II dB or dB and 104 94 class I dB) - Tripod - ISO 9000 Certificate of calibration (made in laboratory and with certificate of control) |
|
|
|
