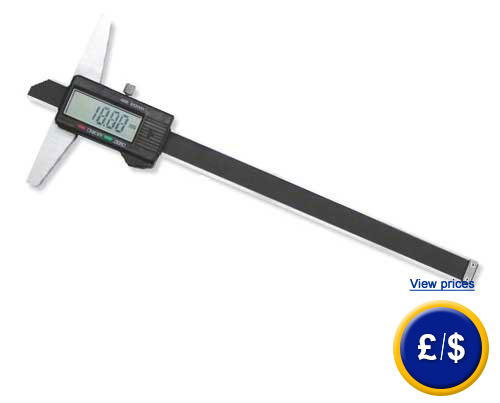

Depth Caliper PCE-DCP 150S
Digital depth caliper to measure depth of borehole, mortise/ indicator can be switched between mm and inch/ zero adjustment at any position

The depth caliper is a specific model of calipers. The depth caliper is applicable to measure the depth of mortises, bore holes, blind holes, steps etc. A special characteristic of the caliper is its large measuring bridge that prevents almost completely a tilting of the caliper and thus prevents any measuring aberrance. With its large LCD display the measuring value is directly and without any problems eligible from the depth caliper. A zero adjustment is performable at any position of the caliper. Therefore the caliper can be used due to its locking screw even as a depth caliper. Furthermore the measuring indicator is always selectable between mm and inch. If you have further questions concerning this depth caliper, please take a look at the following technical data or call our Hotline: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you regarding the depth caliper PCE-DCP 150S or any other product in terms of regulation and control or scales and balances by PCE Instruments.

User manual for the Depth Caliper PCE-DCP 150S  EC certificate for the Depth Caliper PCE-DCP 150S  Video for the Depth Caliper PCE-DCP 150S  Depth Caliper PCE-DCP 150S: Software.  Technical specifications for the Depth Caliper PCE-DCP 150S  Information for the Depth Caliper PCE-DCP 150S

Depth Caliper PCE-DCP 150S

- Zero adjustment at any position
- Rust-free steel
-
Metric/ inch- system

- Automatic switch-off
- With locking screw
-
With LCD display

Technical data of the Depth Caliper

Measuring range

0…150mm
0…6''

Resolution

0.01mm
0.0005''

Measuring accuracy

±0.03 mm

Display

LCD- Display

Measuring system

Linear, contact free CAP measuring system

Measuring speed

max 1.5 m/s

Power supply

1.5 V, type SR44

Surrounding temperature

0…40 °C

Storage temperature

-20…70 °C

Delivery content of the Depth Caliper

1 x depth caliper PCE-DCP 150S, 1 x battery, 1 x plastic case, 1 x instruction manual

Further information about the Depth Caliper PCE-DCP 150S return to homepage.
