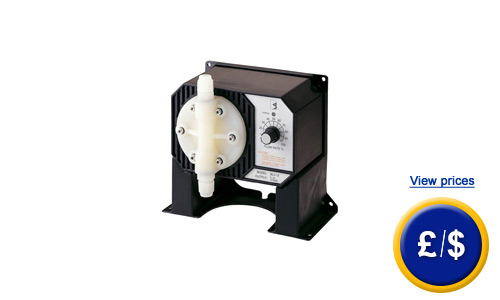

Dosing Pump BL 1.5
Dosing Pump in synthetic enclosure / Absorption automatic up to a maximum of 1.5 m /
200 W performance / Dosing adjustable / minimal maintenance

The dosing pump BL 1.5 stands out due to its simple handling and a higher efficiency. By means of the dosing pump the dosing processes in industrial areas can be simplified and accelerated. The allocation of the dosing pump can be adjusted at any level between 0 % and 100 %. Due to its simple and quick montage the dosing pump can be applied in multiple fields. Due to its low maintenance interval the dosing pump reaches a high effective operation time with a low failure rate. The robust enclosure protects the dosing pump from minor impacts. An automated suction process allows a delivery height of max. 1.5 m for the dosing pump. All parts of the dosing pump that might get into contact with the dosed chemicals are made of a high-quality chemical-resistant material called PTFE and PVDF. Through bore holes on its backside and at its foot the dosing pump can be either positioned on a surface in horizontal position or mounted in a vertical position to the wall. In case that you should have more questions regarding the dosing pump BL 1.5, please read the following technical data, use our contact form or call us: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you regarding the dosing pumps or all other products in the field of Control Systems, Laboratory Equipment, Measuring Instruments or Scales and Balances of PCE Instruments Ltd.

 Dosing Pump User's manual for the Dosing Pump BL 1.5 Dosing Pump BL 1.5 Video of the Dosing Pump BL 1.5 More pictures of the Dosing Pump Technical specifications  for the Dosing Pump BL 1.5

Dosing Pump BL 1.5

- Robust pumping enclosure
- Dosing adjustable between 0 and 100 %
- 220 V to 240 V
- Minimal maintenance

- For industry and laboratories
- Automated suctioning
- Max. 1.5 delivery height
- Approx. 200 W power

Technical specifications

Max. capacity delivery rate

1.5 l / h

Max. capacity pressure

13 bar

Pump enclosure

Pump head made of PVDF
Diaphragm and valve seat made of PTFE
Crystal ball, valves and o-ring gasket made of FPM / FKM

Automated suctioning

Max. 1.5 m

Power Supply

220 ... 240 V, 50 ... 60 Hz

Max. Power

ca. 200 W

Dimensions

165 x 194 x 121 mm

Weight

3 kg

Delivery Content

1 x Dosing Pump BL 1.5, 1 x polyethylene tube 7 m, injection  and suction valve with ceramic suctioning head and counter balance

Technical information of the Dosing Pump BL 1.5.

return to homepage

Similar products to the Dosing Pump BL 1.5:

- Dosing Pump Simdos series

(diaphragm pump with adjustable pump characteristics, impulse control)

Dosing Pump Simdos series

- Dosing Pump Diaphragma Dostec 40-50 Series
  (diaphragm pumps up to 1000 /h, max. 15 bar, also available as 12 V DC version)

 Dosing Pumps Diaphragma Dostec 40-50 Series

- Dosing Pump Reciprocating Piston Dostec 40-50 Series
  (capacity of 2,7 ... 1000 l/h, for chemistry and laboratory, different models)

Dosing Pump Reciprocating Piston Dostec 40-50 Series
