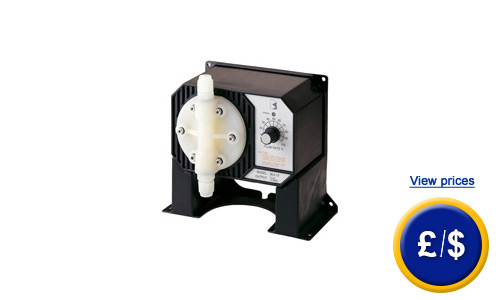

Dosing Pump BL 5
Dosing Pump with automated suctioning / Delivery height up to a maximum of 1.5 m /
max. capacity of 8 bar / fibre-glass reinforced polypropylene / weight above 3 kg

For simple, but precise dosing in areas of industrial and laboratorial technology the dosing pump BL 5 proves a useful device. With a delivery height of 5 l / h the dosing pump is designed for mixing procedures performed with average speed. By means of the potentiometer at the front side of the dosing pump can be adjusted between 0 and 100 %. The integrated overheat control inside the pumping head of the dosing pump protects the dosing pump from minor impacts successfully. Furthermore the interior mechanic section is separated from the electronic section due to a modular construction. The dosing pump can be easily mounted due to four bore holes at the back of the device. Potential maintenance at the dosing pump BL 5 can be performed easily without the need to demount the pump. In case that you should have more questions regarding the dosing pump BL 5, please read the following technical data, use our contact form or call us: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you regarding the dosing pumps or all other products in the field of Control Systems, Laboratory Equipment, Measuring Instruments or Scales and Balances of PCE Instruments Ltd.

 Dosing Pump User's manual for the Dosing Pump BL 5 Dosing Pump BL 5 Video of the Dosing Pump BL 5 More pictures of the Dosing Pump Technical specifications  for the Dosing Pump BL 5

Dosing Pump BL 5

- Suctioning automatic
- Dosing adjustable between 0 and 100 %
- Approximately 200 W performance
- Minimal maintenance

- For industry and laboratories
- glass-fibre reinforced polypropylene enclosure
- Max. 1.5 m delivery height
- Approx. 220 V to 240 V power supply

Technical specifications

Max. capacity delivery rate

5 l / h

Max. capacity pressure

7 bar

Pump enclosure

Pump head made of PVDF
Diaphragm and valve seat made of PTFE
Crystal ball, valves and o-ring gasket made of FPM / FKM

Automated suctioning

Max. height 1.5 m

Power Supply

220 ... 240 V, 50 ... 60 Hz

Max. Power

ca. 200 W

Dimensions

165 x 194 x 121 mm

Weight

3 kg

Delivery Content

1 x Dosing Pump BL 5, 1 x polyethylene tube 7 m, 1 x injection  and suction valve with ceramic suctioning head and counter balance

Technical information of the Dosing Pump BL 5.
