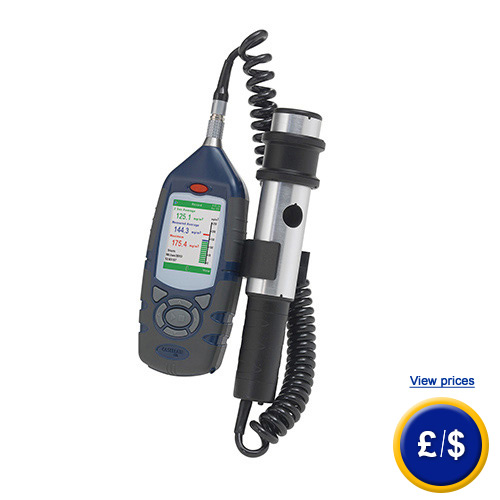

Dust Particle Analyser MicroDust pro Kit
Dust particle analyser to measure the content of dirt particles in the atmosphere, with data memory, RS-232 interface and software

The dust particle analyser MicroDust pro Kit measures the concentration of diverse particles in the air such as dust, soot, pollen and other aerosol kinds. The dust particle analyser MicroDust pro Kit is designed to detect the pollution level in the air. It can detect high pollution in cities and workplaces. Pollution is usually generated by combustion, material process, manufacturing, energy generation, vehicle emissions and in the building industry. With the help of the dust particle analyser MicroDust pro Kit customer can measure the accurate amount of dust particles in the air. Some particle dispersions are responsible for a restricted visibility, the breathing in of poisonous particles and the result of a reduced working quality. It is well known that such particles are partially responsible for some diseases such as asthma, bronchitis, skin and lung diseases.
Traditional gravimetric methods to measure dust content require a considerable test time and are not always effective to assess concentration trends in real time. So, the dust particle analyser MicroDust pro Kit is the perfect portable device for real time measurements of particle dispersion, with the help of the light scattering technique and repeated measurements of dust concentrations.  The Dust particle analyser MicroDust pro kit is capable to graphically present variations in dust concentration on a real time scrolling graph - it is no longer necessary to wait to analyse results on a PC or laptop.
The Dust particle analyser MicroDust pro kit features an easy-to-use interface as well as digital calibration methods for all possible areas of assessment.
The Dust particle analyser MicroDust pro kit is the ideal instrument for both the professionals and expertise due to its possibility to store and transfer measured values for further analysis.
The Dust particle analyser MicroDust pro kit has a large LCD display with a high resolution to show both texts and graphics. It also displays the setting details, impurity levels, logger information and the battery status.
At the following link you will find an overview of the dust particle analyser models.

- Wide measurement range: 1... 2500 mg/m3

- Large internal memory for 15,700 values

- Detachable sensor

- TSP, PM10, PM2,5 or ISO measurements of   respirable dust

- 4 user defined calibration routines available     for differing dust types

- PC software WindDust pro 32bit

- Display with real time graphic diagram.

- Alkaline, rechargeable batteries or mains        power

- Alarm function with limit value setting.

   View or print user manual of the Dust particle                    analyser MicroDust pro kit
                               View or print user manual of the Dust particle analyzer MicroDust pro kit

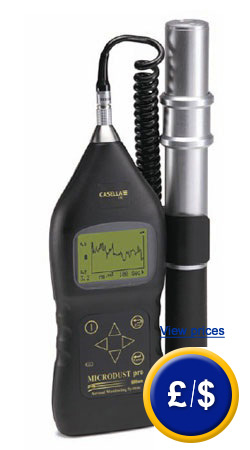

Dust particle analyzer MicroDust pro kit to measure the content of dirt particles in the atmosphere.
Dust particle analyser MicroDust pro kit

Software

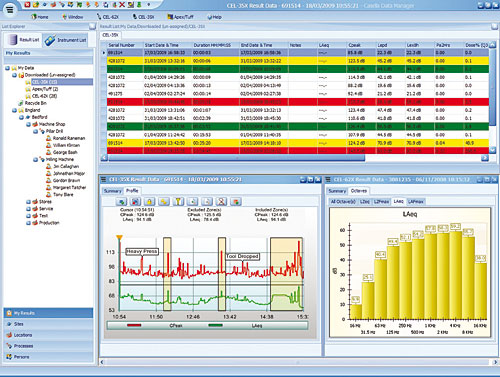

The WinDust software is used as a support for memory functions of the dust particle analyser MicroDust pro kit. It is designed to simplify the process of device configuration,  data recovery and representation.

      Dust particle analyzer MicroDust pro Kit: Software for the dust particle analyzer MicroDust pro Kit.      Dust particle analyzer MicroDust pro Kit: The software is used for both the trends and digit representation

Display

The dust particle analyser MicroDust pro Kit has  LCD graphic panel with backlight (128 x 64 pixels). So, it is the only hand held real time dust monitor on the market (with auto ranging y-axis scale) capable of graphically presenting variations in dust concentration on a real time scrolling graph
Besides, values can be considered as  "Time Weighted Average" (TWA) and as the maximum value of dust concentration. Previous settings and stored values can be cleared by pressing the key "Reset" once.

Display of the dustr particle analyzer MicroDust pro Kit.

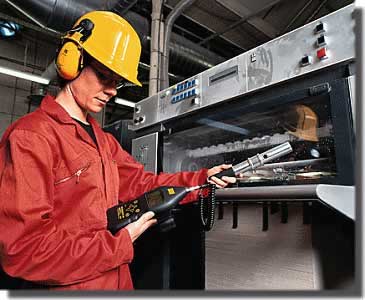

On site application

The dust particle analyser MicroDust pro Kit is commonly used in several industrial sectors to control dust particle concentrations in the air, to store measured values for further analysis in a PC. The dust particle analyser MicroDust pro Kit includes the CE certification.
         Use of the dust particle analyzer Micro Dust pro Kit outdoor.         Use the dust particle analyzer MicroDust pro Kit checking a machine

Technical specifications:

Dimensions

Sensor technique Near forward light scattering (12 - 20ºC) - 880 nm infrared
Measurement ranges
(the active range can be automatically fixed or set)
0.001 ... 2500 mg/m over four ranges:
0 ... 2.5/0 ... 25/0 ... 250/0 ... 2500 mg/m3
Resolution 0.001 mg/m3
Zero stability
Tensile stability
<2 µg/m3/°C
± 0.7 % of the registration/°C
Operating temperature
Storage temperature
0 ... + 50 °C (non-condensing)
- 20 ... + 55 °C (non-condensing)

Power connection

Consumption                         approx. 100 mA
Battery/operating time 4 x AA/MN 1500 cells, alkaline or rechargeable NiCad/approx. > 20 hours
Fast charge rate
Stand by charge rate
450 mA
approx. 55 mA
Power adaptor (-PC18)
Input voltage range
Emissivity range

100 - 240 VAC, 47 - 63 Hz
12 VDC for 0,8 A

Physical details

Display  128 x 64 pixel LCD graphics panel with backlight
Keypad 7 key tactile membrane
Memory capacity
Memory interval
>15700 data points
2 ... 600 s (adjustable)
Interface RS-232 up to 38.400 Baud
IrDa (optional future application)
Analog output 0 to 2.5 VDC FSD, 500 output impedance
Dimensions 245 x 95 x 50 mm
Weight 970 g (device)
Delivery content:
1 x Dust particle analyser Micro Dust
     Pro Kit with sensor included
1 x carrying case
1 x WinDust pro software
1 x calibration certificate
4 x batteries
1 x user manual
Delivery content of the dust particle analyzer Micro Dust Pro kit
Additional components:
- ISO certification and recalibration (i.e. annual, according to the internal quality control)
- PKW cable
technical specifications for the Dust particle analyzer MicroDust pro Kit. return to homepage
