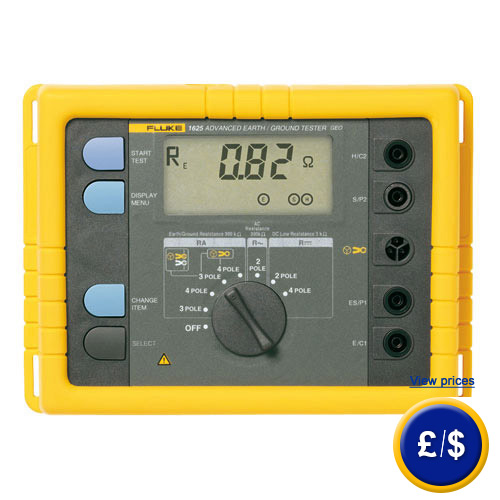

 Earth Meter Fluke 1625
Earth Meter to build earth systems / earth impedance measurement with 55 Hz /
acoustic continuity tester / 2- and 4- pole resistance measurement direct current /
2-pole resistance measurement of alternating current

The earth meter Fluke 1625 allows standard earth metering. Additionally the earth meter Fluke 1625 provides the possibility of performing selective and by that faster measurements. An earth meter is applied wherever earth systems are about to be installed, for checking on earth and lighting protection systems as well as the installations of larger technical facilities, like transformers, switchboards, machines and other facilities of the same magnitude. The earth meter Fluke 1625 is an all-round measuring device, which is designed for demanding tasks. In contrary to other devices of that series, the earth meter Fluke 1625 features a load of high-grade functions, that facilitate the every-day work of an electrician at all installations. Other earth meters are usually not able to perform selective test procedures. That feature spares time since the earth system, that is tested, does not need to be disconnected during the test procedure. This leads to a better safety. For the test procedure without an earth conductor, the earth connections are tested with two current clamps, that are simply clamped to an earth connection. By means of the earth meters measurements between 0 and 300 kΩ can be performed with a low deviation of ±5%. If there are any questions about this Earth Meter Fluke 1625, please have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you in all earth meters and all products in the field of measuring instruments, regulation and control and scales

 Earth Meter  Fluke 1625  User manual for the  Earth Meter  Fluke 1625  EC certificate for the  Earth Meter  Fluke 1625  Video for the  Earth Meter  Fluke 1625   Earth Meter  Fluke 1625 20 further Images  Technical specifications of the  Earth Meter  Fluke 1625

Earth Meter Fluke 1625

- Earth impedance measurement with 55 Hz
- Acoustic continuity tester
- 2- and 4- pole resistance measurement DC

- 2-pole resistance measurement AC
- Even in a kit purchasable
- High measurement accuracy

Technical Specifications

Resistance range

0 ... 300 kΩ

Operation measurement deviation

±5 %

Adjustable test voltage

20/48 V

Short circuit current

250 mA

Battery type

6 x alkaline batteries type AA

Dimensions

110 x 180 x 240 mm

Weight (incl. battery)

1.1 kg

Energy impedance measurement

55 Hz

Protection type

IP 56

Acoustic continuity tester

yes

Programmable thresholds

yes

Delivery Content

1 x Earth Meter Fluke 1625, 1 x protection holster, 2 x measurement conductors, 2 x crocodile clamps, user's manual

Optional Fluke 1625 Kit:

1 x earth meter Fluke 1625
1 x protection holster
2 x measurement conductors
2 x crocodile clamps
1 x robust case
Earth spike / cable reel set for 4- pole measurements,
current clamps for selective / procedure without spikes,
instruction manual

further information about the  Earth Meter  Fluke 1625
