Electric Tester FLUKE T5-600 / FLUKE T5-1000
Electric tester FLUKE T5 as two different models / Check of currents up to 100 A AC /
 for voltage-, continuity- and current check / removable measurement sensor tips inclusive /  Measurements of voltages up to 600 V or 1000 V

The electric tester FLUKE T5 allows an easy check-up on voltage, continuity and current by means of a simple and handy measurement device. In order to perform measurements with the electric tester, only the measurement function has to be selected. The rest of the measurement process is performed by the electric tester automatically. The bracket electric tester is a robust device which does not  easily take any damage, even at a fall from a three meter height. In contrary to the electromagnetic tester, the electric tester can keep on connected much longer and even indicates the electric ampere. The battery life-time counts 400 hours, which is supported by an automatic switch-off function the device holds. The electric current measurement function of the bracket electric tester allows capturing electric currents of up to 100 A, without even interrupting the current circuit. Therefore the bracket jaws have to be slid onto the conductors by using the OpenJaw function of the FLUKE electric tester T5.  Furthermore a measurement of voltages up to 600 V AC / DC or respectively 1000 V is possible. The amount of voltage measurements therefore depends on the relevant model. Furthermore a measurement of the voltage up to 1000 Ω by means of the electric tester can be performed. The display of the electrics tester provides good eligibility. Both models of the electric tester FLUKE T5 are purchasable separately or in a kit with broad equipment. There is already some equipment included that might be expedient depending on the application. Detailed information about the delivery content is listed below. Due to the low weight and small dimensions of the electric testers there can be easily performed measurements at locations that are difficult to reach. If there are any questions about this electric tester FLUKE T5, please have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you in all electrical testers and all products in the field of measuring instruments, regulation and control and scales

 Electric Tester  FLUKE T 5 series  User manual for the  Electric Tester  FLUKE T 5 series  EC certificate for the  Electric Tester  FLUKE T 5 series  Video for the  Electric Tester  FLUKE T 5 series   Electric Tester  FLUKE T 5 series 20 further Images  Technical specifications of the  Electric Tester  FLUKE T 5 series

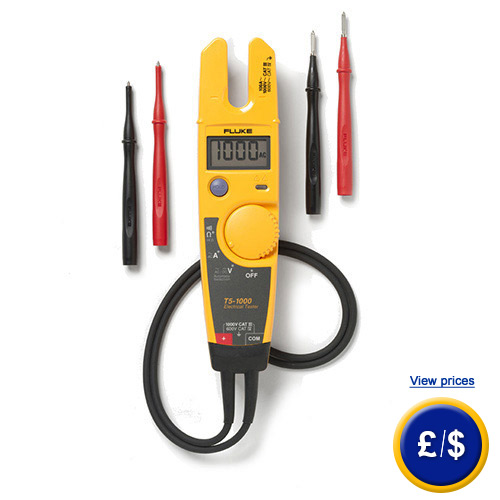

FLUKE T5 Electric Tester

- Measures voltages, continuity and current
- Incl. removable measurement tips
- Check on electric currents of up to 100 A

- Simple measurement process
- Broad optional equipment
- Low weight

Technical Specifications



T5-600

T5-1000

Alternating current voltage

600 V

1000 V

Direct current voltage

600 V

1000 V

Safety according to EN61010

600 V CAT III

1000 VCAT III /
600 V CAT IV

General Technical Specifications

Alternating current

100 A

Resistance measurement

1000 Ω

Display range

1000 digits

Automatic range switch

yes

Continuity measurement function and acoustic continuity check

yes

Automatic switch off

yes

Battery life time

400 hrs

Dimensions (H x W x D)

203 x 51 x 30.5 mm

Weight

approx. 0.38 kg

Delivery Content

1 x electric tester FLUKE T5, 2 x removable measurement tips TP38 (CAT III), 2 x removable measurement tips TP1-1 (CAT II), 1 x instruction manual

Optional Equipment

FLUKE T5-H5-1AC Kit:
1 x electric tester FLUKE T5-1000
1 x holster H5
1 x FLUKE 1AC-II

Electric Tester FLUKE T5-1000 kit

FLUKE T5-600/62/1AC Kit:
1 x electric tester FLUKE T5-600
1 x FLUKE 62
1 x FLUKE 1A
1 x carry bag C115

Electric Tester T5-600 kit

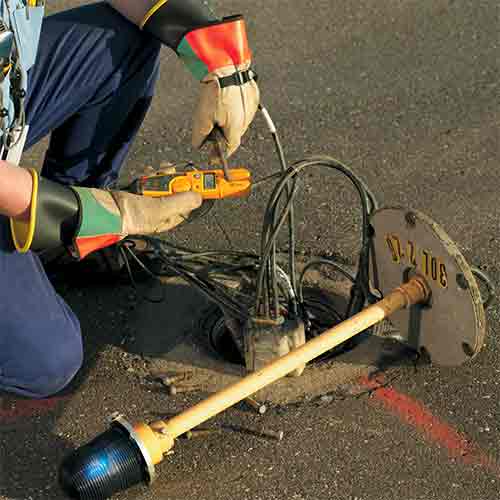

Electric tester FLUKE T5 in operation
Here the electric tester FLUKE T5 in operation
