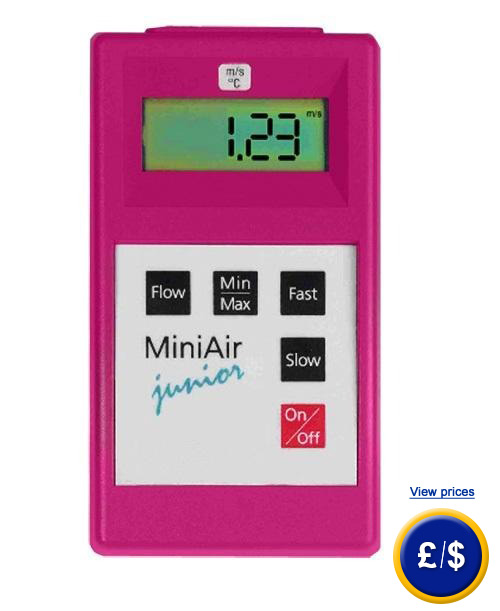

Flow Meter MiniAirJunior
One channel flow meter for measurements in heating, air conditioning and ventilation sectors / for the measurement of wind speed / maximum, minimum and average values available in display at any time

 The probes are not included in the delivery content!

The one channel flow meter MiniairJunior is used to detect the air flow rate of gaseous fluids. The one channel flow meter is portable and easy to use. It combines high precision and easy handling, and it is ideal for punctual checks and mobile use. The one channel flow meter is also suitable for continuous use. Measuring air speed flow with a flow meter is considered to be the most accurate measuring method. The winged wheel speed is almost linear to the airflow speed and independent of pressure, temperature, density and moisture. The one channel flow meter is particularly suitable for measurements in the areas of heating, ventilation and air conditioning. We would be happy to advise you on this flow meter and, of course, on any other products in the field of regulation and control, measuring instruments and scales or balances.

One channel Flow Meter MiniAirJunior user manual  EC certificate for the One channel Flow Meter MiniAirJunior   Video for the One channel Flow Meter MiniAirJunior   EC certificate for the One channel Flow Meter MiniAirJunior   Specifications for the One channel Flow Meter MiniAirJunior  One channel Flow Meter MiniAirJunior information

One channel Flow Meter MiniAirJunior for measurements in the heating sectors, air conditioning and ventilation.

 - Current value measurement

 - Easy handling and easy-to-use keyboard

 - Portable handheld one channel flow meter

 - Displays maximum, minimum and average         values on screen

 - Exchangeable head

 - Choice of two average measurement times

Technical specifications

Unit

m/s

Means to measure the plastic probe

non-aggressive gases

Display

4 digits LCD

Measurement rate

2 measurements per second

Power supply

 LR22 -  9 V battery

Power consumption

approx. 15 mA

Battery life

approx. 12 hours

Case dimensions

80 x 145 x 39 mm

Housing protection

IP 40

Weight

approx. 230 g

Operating temperature

0 ... +50 ºC

Storage temperature

-30 ... +80 ºC

Air humidity

0 ... 90% H.r. (non-condensed)

Delivery content:
1 x one channel flow meter MiniAirJunior, 1 x  9 V battery and user manual

  Probes are NOT included in the delivery content!

Probes for the one channel flow meter MiniAirJunior

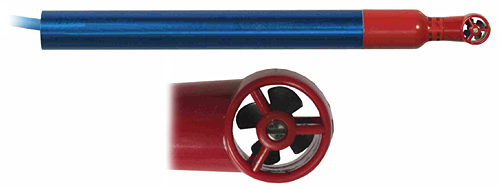

 Micro probe for the one channel flow meter MiniAirJunior

Micro probe for One channel Flow Meter MiniAirJunior

Air probe for the one channel flow meter
Micro 95.0006
Micro 95.0007
Air measurement range
0.6 ... 20 m/s
0.7 ... 40 m/s
Accuracy
±2.0% from the final value
±5.0% from the final value

Operating temperature
-30 ... +140 ºC

Head size
Ø 11 x 15 mm

Opening
16 mm

Probe length
165 mm

Cable length
1.5 m

Storage temperature
-65 ... +150 ºC

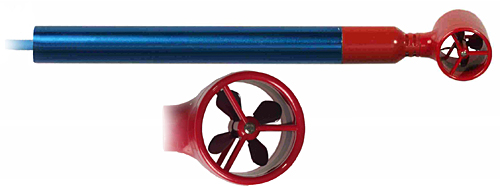

Mini probe for the one channel flow meter MiniAirJunior

Mini probe for the One channel Flow Meter MiniAirJunior

Air probe for the one channel flow meter

Micro 95.2004

Micro 95.2005

Air measurement range

0.4 ... 20 m/s

0.5 ... 40 m/s

Accuracy

±1.0% from the final value
±3.0% from the final value



Operating temperature

-30 ... +140 ºC



Head size

Ø 22 x 28 mm



Opening

35 mm



Probe length

175 mm



Cable length

1.5 m



Storage temperature

-65 ... +150 ºC

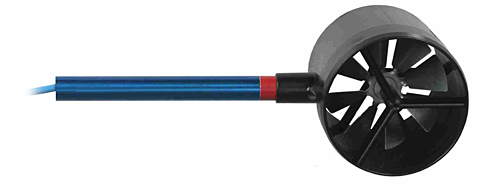

 Macro probe for the one channel flow meter MiniAirJunior

Macro probe for the One channel Flow Meter MiniAirJunior

Air probe for the one channel flow meter

Micro 95.2014

Micro 95.2009

Air measurement range

0.2 ... 20 m/s

0.3 ... 40 m/s

Accuracy

±1.0% from the final value
±3.0% from the final value



Operating temperature

-30 ... +140 ºC



Head size

Ø 85 x 80 mm



Probe length

235 mm



Cable length

1.5 m



Storage temperature

-65 ... +150 ºC



ISO calibration certificate
After some time of usage, the one channel flow meter may show some wear which is likely to impact the accuracy of measurements. You may request any time laboratory recalibration or ISO certification.

ISO calibration certificate for the one channel Flow Meter.
