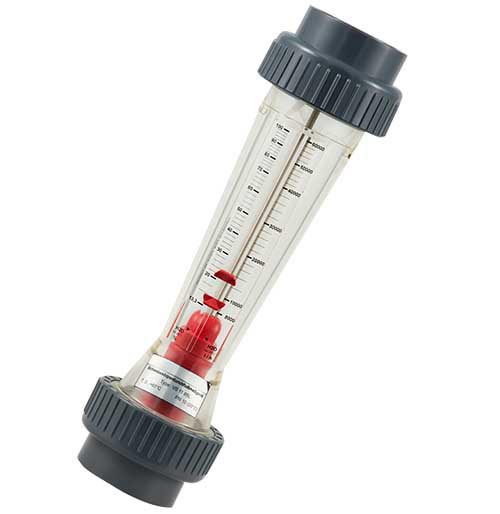

Flow Meter PCE-VS series
Plastic flow meter for measuring flow in pipes and air vents for water Nm3 / ho l / h or water / h, depending on model

The flow meter is an instrument which determines the flow of fluids such as liquids or gases in pipes. The flow meter of the VS series operates according to the principle of the body in suspension. In the conical plastic test tube of the flow meter, there is a body in suspension that is lifted by the inertia of the fluid itself. The height of the body in suspension depends on the flow rotameter. If you increase the flow, flow resistance will increase too. The suspension of the flow meter body rises and increases the body surface between the suspension and the glass tube. This decreases the flow resistance until it is identical with the sum of the strength of the suspended body weight and buoyancy. The level as a measure for the flow can be read on a scale of the flow meter. Flow meter is available in different versions. The flow meter is equipped with a scale in l/h for water and Nm ³/h for air. The reading of the flow is facilitated by two adjustable setpoint indicators integrated into the flow meter. For more information on flow meters, please click here.

User manual for the flow meter series PCE-VS  CE certificate for the flow meter series PCE-VS  Video for the flow meter of the series PCE-VS  Technical specifications for the flow meter series PCE-VS  Information for the flow meter series PCE-VS

Flow meter series PCE-VS
Flow meter series PCE-VS

 - Measurements in l/h Nm3/h

 - High strength

 - Corrosion resistant

 - High repeatability

 - High reproducibility

 - Range of 1.5 - 60,000 l/h




 - Easy installation

 - No need any external power

 - Accuracy class 4, according to VDI 3513

 - For liquids and gases

 - Setting the theoretical value indicators

 - Floating body of PVDF (polyvinylidene           fluoride)




Technical specifications
Series VS11... VS12... VS13...
    VS32... VS33...
Specifications
Accuracy - Accuracy class 4, according to VDI 3513
Nominal precision 30 ºC PN 10
Medium temp. 0 ... 60 ºC 0 ... 100 ºC 0 ... 40 ºC
Measurement tube PA (Trogramid) PSU (Polisuifon) PVC
Floating body PVDF (Polyvinylidene fluoride)
Ring O EPDM (Ethylene Propylene Diene Type M ASTM )
Series VS1... (length = 335 mm)
Type Nominal value Range for water Range for air
0 ... 10 bar
VS 1_25A... DN25 50 - 500 l/h 1.5 - 42 Nm3/h
VS 1_25B... DN25 100 - 1000 l/h 2.5 - 87 Nm3/h
VS 1_32C... DN32 150 - 1500 l/h 4 - 135 Nm3/h
VS 1_32E... DN32 250 - 2500 l/h 7 - 237 Nm3/h
VS 1_40D... DN40 200 - 2000 l/h 6 - 174 Nm3/h
VS 1_40F... DN40 300 - 3000 l/h 9 - 324 Nm3/h
VS 1_40G... DN40 600 - 6000 l/h 17 - 522 Nm3/h
VS 1_50G... DN50 600 - 6000 l/h 17 - 525 Nm3/h
VS 1_50H... DN50 1000 - 10000 l/h 29 - 903 Nm3/h
VS 1_50I... DN50 1500 - 15000 l/h 53 - 1215 Nm3/h
VS 1_65J... DN65 2000 - 20000 l/h 55 - 1635 Nm3/h
VS 1_65K... DN65 3000 - 30000 l/h 80 - 2274 Nm3/h
VS 1_65L... DN65 8000 - 80000 l/h - - -
Warnings:
Note the different ranges of precision air. The precise ranges can be found here
User manual for the flow meter series PCE-VS

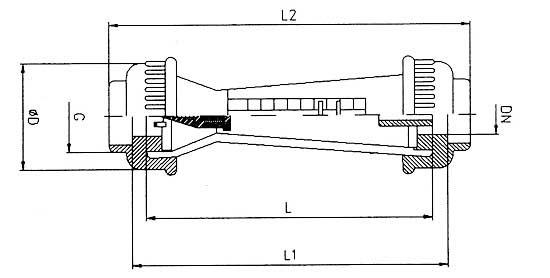

Dimensions VS1... (L = 335 mm)

Dimensions of the flow meter series PCE-VS

Installation and assembly indications for the PCE-VS Flow Meter
Flow meters should be installed vertically and free of tension. It is necessary to provide a route of entry and exit, input of approx. 10 x DN, output of approx. 5 x DN

G DN L L1 L2 ØD
1 1/2" 25 335 341 385 60
2" 32  335 341 393 72
2 1/4" 40 335 341 403 83
2 3/4" 50 335 339 417 103
3 1/2" 65 335 341 429 122
Series VS3... (length = 165...200 mm)
Type Nominal value Water range Air range
0 ... 10 bar
VS3_10P... DN10 1.5 - 15 l/h 0.01 - 1.8 Nm3/h
VS3_10Q... DN10 2.5 - 25 l/h 0.2 - 3.2 Nm3/h
VS3_10R... DN10 5 - 50 l/h 0.5 - 6.4 Nm3/h
VS3_10T... DN10 10 - 100 l/h 0.8 - 10 Nm3/h
VS3_15S... DN15 8 - 80 l/h 0.6 - 9.5 Nm3/h
VS3_15U... DN15 15 - 150 l/h 1.4 - 19 Nm3/h
VS3_15V... DN15 20 - 200 l/h 1.5 - 25 Nm3/h
VS3_25U... DN25 15 - 150 l/h 1.0 - 21 Nm3/h
VS3_25W... DN25 30 - 300 l/h 1.5 - 35 Nm3/h
VS3_25A... DN25 50 - 500 l/h 3 - 60 Nm3/h
VS3_25B... DN25 100 - 1000 l/h 6 - 100 Nm3
Warnings:
Note the different ranges of precision air. The precise ranges can be found here
User manual for the flow meter series PCE-VS
Dimensions VS3... (L = 165...200 mm)

Dimensions of the flow meter series PCE-VS

Installation and assembly indications for the PCE-VS Flow Meter
Flow meters should be installed vertically and free of tension. It is necessary to provide a route of entry and exit, input of approx. 10 x DN, output of approx. 5 x DN


G DN L L1 L2 ØD
3/4" 10 165 171 199 35
1" 15  185 191 223 43
1 1/2" 25 200 206 250 60

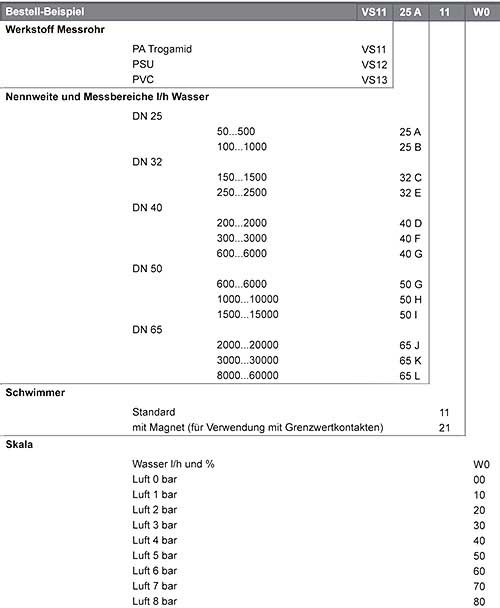

Measuring examples with the flow meter PCE-VS

Measurements of the flow meter series PCE-VS

Warnings:
Note the different ranges of precision air. The precise ranges can be found here
User manual for the flow meter series PCE-VS
Measuring tube material Nominal value Float Scale
PA Trogamid DN40/200 ... 20000 Standard Water l/h and %
VS11 40D 11 W0

Order number
VS11 40D 11 W0

Delivery content:
1 x flow meter series PCE-VS

Additional components
- Alarms contacts
The alarm contacts VSK2 and  VSK1 serve for external control of the flow you want to limit. They are inserted into the guide and can be adjusted to any value of the marked scale. A magnet permanently attached to the floating body opens or closes a reed switch built into the alarm contact. The switching function is stable. This means that the switching state remains active even if the magnet is removed from the contact. When installed after an alarm contact, keep in mind that you must change the standard floating body with the floating body magnet.

Calibration certificate for the flow meter series PCE-VS.

Calibration certificate for the flow meter series PCE-VS.

Voltage
max. 230 V AC
Power
max. 10 W/12 VA
Current
max. 0.5 A
Contact resistance
200 mΩ
Isolation resistance
1011 mΩ
Ambient temperature
0 ... 55 ºC
Protection
IP65, according to DIN 40050
Switchover hysteresis
1-2 mm
