 PCE-HT 500 hardness meter
hardness tester for metallic materials (ferrous and non-ferrous metals),
force is manually exerted,  Rockwell  scale 20 ... 80 HRA / 20 ... 100 HRB
/ 20 ... 80 HRC

Tabletop meter controls with high accuracy the surface force in metallic materials. Rockwell hardness meter can detect Rockwell parameters HRA, HRB and HRC in diverse materials such as alloy steel, carbon-steel, unwrought iron, as well as metallic alloys. Test force is manually exerted and has to be previously selected by means of a handle. This hardness meter is solid and stable. Although hardness meters are usually used for production control, they can be also used in research and development. At this link you will find a general view of the hardness meter which will suit your needs.

 - To determine Rockwell force (A, B, C)

 - Test force attenuation by means of a                   buffer/adjustable feet

 - Results with high repeatability

 - It can be used for flat and curved elements.

 - It meets ISO6508.2 and BSEN10109-96              standards

 - ISO Calibration Certificate can be issued.

 - Wide basic equipment

 - Wide range of special accessories available

     View or Print Hardness meter user manual
                                user manual for PCE-HT 500 hardness meter

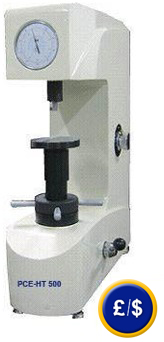

 View of the PCE-HT 500 hardness meter.
PCE-HT 500 hardness meter
Technical specifications:
Hardness scales/measuring ranges Rockwell: A, B, C
20 ... 80 HRA/20 ... 100 HRB/20 ... 80 HRC
Accuracy

to meet ISO 6508.2 standard

Resolution 0.5 HR (Rockwell unit)
Basic test force/Initial force (selectable) 588.4 N (60 kgf),
980.7 N (100 kgf),
1471,0 N (150 kgf)
Loading test force/total force 0 ... 30 s (adjustable)
Maximum testing dimensions vertical 190 mm (assembling high 200 mm)
horizontal 150 mm (assembling width 160 mm)
Materials which can be used all kind of metals with a flat surface
(or with 3 mm diameter cylindrical surfaces)
Display analogue
Power none
Operating temperature +5 ... +50 ºC
Dimensions 720 x 225 x 790 mm
Weight (with C test block) 100 kg
Standards ISO6508.2 and BSEN10109-96

Delivery content:
1 x Hardness meter PCE-HT 500, testing blocks  B/C (one each), 1 x Ø 1.5875 mm penetration body, 3 Ø 1.5875 mm replacement penetration bodies, 1 x 120º penetration body, 1 x Ø 60 mm flat plate, 1 x V grooved plate of Ø 60 mm, 1 x briefcase and user manual.

Additional components
- ISO Calibration Certificate
The calibration procedure includes laboratory calibration process and ISO certification. An official calibration can be done when the hardness meter is ordered or as annual recalibration.

ISO calibration certificate can be required as an option.

- Flat plates
Apart from the flat plate included in the delivery, additional plates with a higher diameter are also available:
 - Ø 80 mm
 - Ø 150 mm

Flat plates

- V grooved plates
Apart from the V grooved plate included in the delivery, plates with a higher diameter are also available:
 - Ø 70 mm
 - Ø 80 mm

V grooved plates.

Technical information for our PCE-HT 500 hardness meter. Return to homepage.
