PCE-HT-110 humidity
detector
two channels for
data logging readings for temperature and relative
humidity, with RS-232 interface, 64k memory and display
|
|

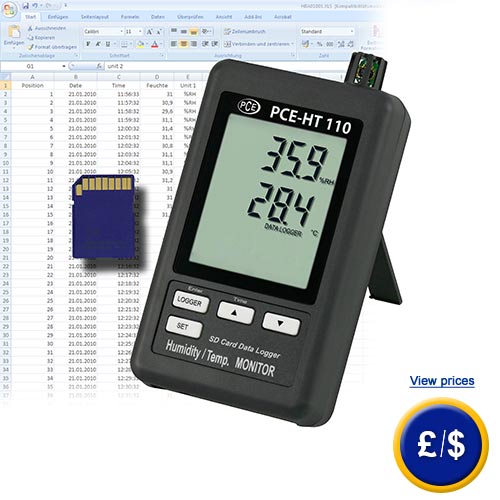

The PCE-HT-110 humidity detector measures air
temperature and relative humidity and can record
them as a data logger. This compact humidity
detector with memory for 64,000 readings is
typically used for taking measurements over an
extended period of time in such places as
supermarket refrigerators, cold transport and
storage and for taking measurements in the
industrial sector for heating and cooling processes,
machine operating temperature and for product
storage. The actual reading appears on the LCD and
is stored to memory, and this information can be
retrieved by the user when needed or it can be
transferred to a computer for further analysis. Data
stored to memory can be erased manually or the data
logger function can be set up before hand (start
time, stop time, date and measurement refresh rate)
and can be stored in situ.
Data saved by the data logger function, can be
transferred to a computer to be evaluated at a later
time. The numerical columns can be broken down, such
as to show the food sector, which allows for for
quick determination of whether a cooling unit is
faulty. The internal clock with date allows the user
to organise the data accurately. Measurement
intervals can be adjusted by the user. The enclosure
is resistant to dust and water and the electrical
components are protected from impacts that might
occur in the industrial sector. It also has a
backlit display if ambient light is not sufficient.
Note:

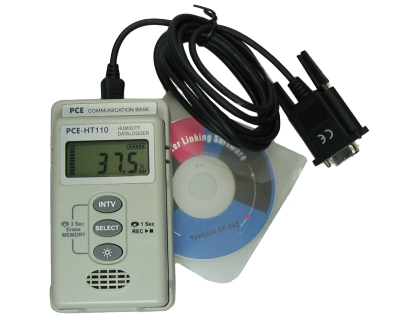

The optional software pack is to allow the user to programme the
humidity detector and to evaluate data and transfer
readings to a computer via the RS-232 cable, and
docking station.
Order it from us or order a humidity detector whcih
comes with software. |
|
- Memory capacity of 64k
- High measurement cuota
-
RS-232
interface
-
optional Software pack with data cable
- Backlit display
-
Real time clock and date (adjustable) losses 5
seconds / month)
-
Adjustable refresh
rate
(1 sec
to
60 min)
- Battery level indicator
- EEPROM
for storing permanent data
- Wall mount
- Batteries are replaceable
- IP66 resistant to dust and water
- Can be calibrated
- optional
ISO
calibration certificate
|
PCE-HT-110 humidity detector
View or print the user's manual
|
|
Note: the
PCE-CB software pack is available separately.
|
|
Technical specifications |
|
Measurement ranges |
-40 to 100°C / 5 to 98% r.h.
|
|
Accuracy |
±
0.7°C <40°C, ±1.5°C > 40°C / ±3%
r.h.
|
| Resolution |
0.1°C / 0.1%
r.h.
|
|
Memory |
max.
64,000 readings (32,000 per parameter)
|
|
Refresh rate / measurement intervals |
adjustable,
1
second to 60 min
|
|
Start / stop time, date |
programmable
|
|
Power |
2
x 1.5V batteries
|
|
Battery life |
approx.
1 year
|
|
Operating conditions |
- 30 to 70°C / 0 to 98%
r.h.
|
|
Ingress protection |
IP66,
resistant to dust and water
|
| Dimensions |
92
x 55 x 22mm
|
|
Weight |
200g
|

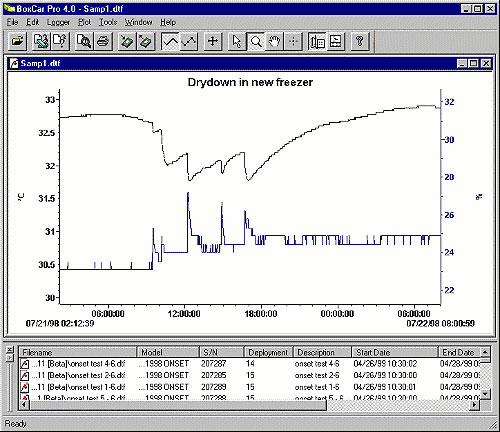

| Software |
|
Software to programme the humidity detector and to evaluate data
and transfer readings to a computer via the RS-232
cable, and docking station. The software has the
following characteristics:
-
Numerical
columns and graphic representation (x - t diagram
with date and time), the series od data can be
exported to other programmes such as Excel.
This software is available in English and is easy to
use. Adjustments can be made to the humidity
detector and data can be evaluated in the programme.
 |
| Contents |
|
PCE-HT-110 humidity detector,
wall mount, 2 batteries and user's manual |
|
Optional accessories
PCE-CB software pack
To programme the device and allow data
to be transferred to a computer. |
 |
-
ISO
calibration
Laboratory ISO
calibration and certification (annual recalibration
or with purchase of a new product) |
|
-
RS-232
to USB
adaptor
(for connection to a portable computer) |
|
 |
 |
|
