PCE-889 Infrared Thermometer
Professional handheld infrared thermometer for non-contact measurements of temperature, with adjustable emissivity, optical resolution of 50:1 and a temperature range of up to 1000°C

PCE-889 infrared thermometer measures surface temperature. The most attractive features of the infrared thermometer are its clear laser point, wide temperature range and adjustable emissivity (depending on the material). Thanks to its high optical resolution of 50:1 you can measure an object temperature from a substantial distance. Due to the small point diameter of 6 mm at a distance of 30 cm the temperature of small construction parts can be determined. This infrared thermometer with adjustable K value (emission levels) can be used to measure the temperature of different materials. Here is a table of K values for different materials. At this link you can see more information about the temperature units that are used internationally. Here you will find another model of infrared thermometer similar to this one or different infrared thermometers to measure temperature.

User manual for the PCE-889 infrared thermometer  EC certificate for the PCE-889 infrared thermometer  Video for the PCE-889 infrared thermometer  PCE-889 infrared thermometer: Software.  Technical specifications for the PCE-889 infrared thermometer  Information for the PCE-889 infrared thermometer

 - Clear laser point

 - Easy to use

 - Highly accurate

 - Solid design

 - High optical resolution of 50:1

 - High temperature range up to 1000 °C

 - Backlit display

 - Data Hold function

 - Minimum, maximum, average and differential         values for a series of measurements

 - High and Low alarm levels

 - Optional ISO calibration

The PCE-889 infrared thermometer
PCE-889 infrared thermometer

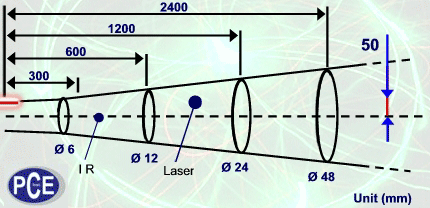

Measurement point ratio

PCE-889 infrared thermometer: laser

The distance of the infrared thermometer from the object and the size of the measurement point are related. It must be taken into consideration that measurements from a greater distance generate a much larger measurement point resulting in a measured temperature over a larger surface area. The image above demonstrates the correct way to use the infrared thermometer. At a distance of 2.4 m, the measurement point has a surface area of 16 mm and at a distance of only 30 cm, the point is just 6 mm, which is suitable for small components.

Technical specifications

Temperature range

-50 to 1000°C

Resolution

0.1°C

Accuracy

±1.5% of reading
or ±2°C (lowest value is valid)

Response time

<1 second

Optical resolution

50:1

Adjustable emissivity (depending on material)

0.1 to 1.0

Laser pointer

 single laser point, extra clear

Minimum, maximum, average and differential temperature values

yes

Measurement time intervals

yes

Alarm (high/low)

yes

Backlit display

yes

Power

9 V battery

Dimensions

55 x 100 x 230 mm

Operating temperature

0 to 50°C

Weight

290 g

Standards

EMC; EN: 50081-1, 50082-1; EN: 60825-1

Examples of use for the PCE-889 infrared thermometer

The range of uses for the infrared thermometer is wide. These devices are widely used in all industrial processes by professionals and an amateurs, to control electrical units in cabinets or to check the temperatures on engine components. As an example, below you can see a video of the thermometer measuring a temperature of an engine block next to the nozzles.

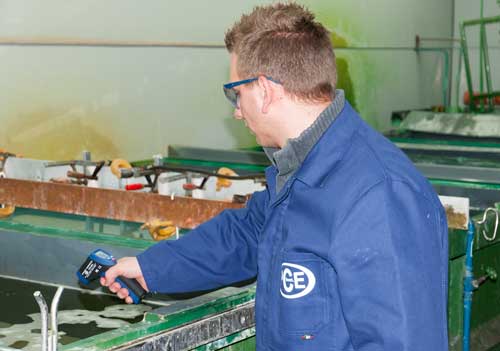

The PCE-889 infrared thermometer taking a measurement

The PCE-889 infrared thermometer taking a measurement

Measuring a temperature with the infrared thermometer in a forging work

The PCE-889 infrared thermometer taking a measurement

The PCE-889 infrared thermometer taking a measurement

Measurement in an electric control
box with the infrared thermometer.

The infrared thermometer has a backlit
display for the cases when there is no light

Applications
The range of uses for an infrared thermometer is wide. It can be used in all industrial processes,by professionals and amateurs, for electrical units and to test the temperature of automotive components.

The PCE-889 infrared thermometer taking a measurement

Delivery content:
1 x PCE-889 infrared thermometer, 1 x battery, 1 x carrying case and user manual (with a table containing emissivty of different materials)

PCE-889 infrared thermometer in its carrying case, ready to go

Optional accessories
- Laboratory calibration and ISO certificate
