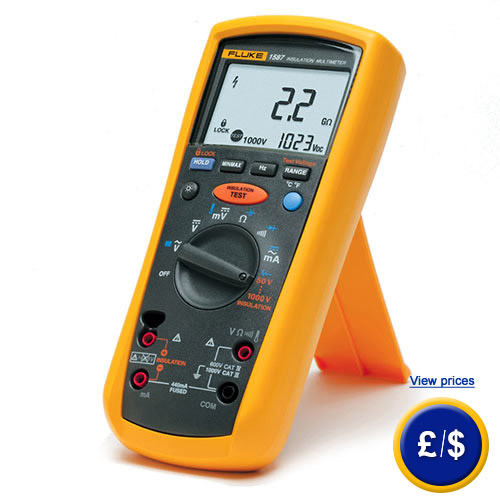

Insulation Multimeter FLUKE 1587
Insulation Multimeter with a test voltage of up to 1000 V / large backlit display /
Min/Max - recording / diode test / measurement of temperature, frequency and capacity

The insulation multimeter FLUKE 1587 is applied on engines, generators, cables and electronic switchboards. Therefore the insulation multimeter combines the function of a digital insulation tester and a true-rms multimeter. The insulation multimeter provides an optimized variety of error detections on the one hand and supports precautionary maintenance of devices on the other hand. Thereby the insulation multimeter catches attention through various performance features that facilitate certain tasks significantly. The versatility of the insulation multimeter arises in the potentiality to record minimum and maximum values, to perform a diode test or to measure temperature, frequency and capacity. The battery life time of the insulation multimeter FLUKE 1587 counts 1000 hours and is also maintained due to its automatic switch-off function of the device, since it adds to preserving the batteries. The ability of the insulation multimeter FLUKE 1587 to recognize current-carrying circuits prohibits insulation tests at voltages above 30 V and by that facilitates an extended safety for the operator. For detailed specifications regarding the insulation measurement and multimeter function, please consider the table below. If there are any questions about this Insulation Multimeter FLUKE 1587, please have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you in all multimeters and all products in the field of measuring instruments, regulation and control and scales

 Insulation Multimeter  FLUKE 1587  User manual for the  Insulation Multimeter  FLUKE 1587  EC certificate for the  Insulation Multimeter  FLUKE 1587  Video for the  Insulation Multimeter  FLUKE 1587   Insulation Multimeter  FLUKE 1587 20 further Images  Technical specifications of the  Insulation Multimeter  FLUKE 1587

Insulation Multimeter FLUKE 1587

- Min /Max. - recording
- Measurement of temperature, frequency,   capacity
-Large Display with background lights

- Test voltage up to 1000 V
- Input warning signal in case of a wrong connection
- Automatic switch-off

Technical Specifications

Insulation measurement

Measurement range

0.01 MΩ ...  2 GΩ

Test Voltage

50 V, 100 V, 250 V, 500 V, 1000 V

Test Voltage fault

+20 % , -0 %

Short-circuit test voltage

1 mA nominal

Automatic discharge

discharge - time <0.5 sec. for C = 1 µF or less

Maximum of capacitive load

Up to 1 µF load

Multimeter

Function

MAX measuring range

MAX resolution

Accuracy

DC voltage

1000 V

1 mV

± (0,09 % + 2)

AC voltage

1000 V

0.1 mV

± (2 % +3)

Direct current

400 mA

0.01 mA

± (0.2 % + 2)

Alternating current

400 mA

0.01 mA

± (1,5 % +2)

Resistance

50,0 MΩ

0.1 Ohm

± (0.9 % + 2)

Capacity

9999 µF

1 nF

± (1.2 % + 2)

Frequency

99.99 kHz

0.01 Hz

± (0.1 % +1)

Temperature

- 40 °C ... +537 °C

0.1 °C

± (1 % + 10)

Delivery Content

1 x Insulation Multimeter FLUKE 1587, 1 x hard case, 1 x SureGrip Silicone measurement lines- set, 1 x set of SureGrip crocodile clamps, 1 x temperature sensor type K, 1 x probe with initiation button

Optional Extension Kits:

FLUKE 1587/ET Kit:
1 x Insulation Multimeter FLUKE 1587
1 x infrared mini-thermometer FLUKE 62
1 x i400 current clamp

FLUKE 1587/MDT Kit:
1 x Insulation Multimeter FLUKE 1587
1 x Rotary field indicator FLUKE 9040

Optional Equipment

- ISO calibration certificate (for companies that want to admit the insulation meter to their internal test-device-pool, or for annual recalibration).
The certification according to ISO covers a laboratory calibration including a test certificate with all measurement values.

further information about the  Insulation Multimeter  FLUKE 1587

return to homepage.

Similar products to the Insulation Multimeter FLUKE 1587:

- FLUKE 175 / 177 / 179 Insulaiton Multimeter
  (FLUKE Multimeters TRMS up to 1000 V and 10 A, 6000 digit LCD)

Insulation Multimeter FLUKE 17x series

- FLUKE 27 II Insulation Multimeter
  (extra robust device with IP 67 and all possible functions to perform error diagnostics)

FLUKE 27 II Insulation Multimeter

- FLUKE 28 II Insulation Multimeter
  (extra robust measuring device with IP 67, dust and waterproof for true-RMS)

FLUKE 28 II Insulation Multimeter

- Insulation Multimeter PCE-DM10
  (autom. range selection, 600 V, compact design, non-contact detection of voltage)

Insulation Multimeter PCE-DM 10
