DLS-C / CH 30 & DLS-C / CH 15 Laser Distance Measuring Meter
 Industrial laser distance measuring meter for fixed mounting with SPS

The DLS Laser Distance Measuring Meter is used to measure distances accurately in the industry sector. This Laser Distance Measuring Meter can, for example, measure the contents of containers, the position of objects on conveyors or the thickness of rolls and cylinders, as well as store and evaluate data on a PC. You can connect the Laser Distance Measuring Meter to SPS for handling and reading. The potential uses of the Laser Distance Measuring Meter are manifold. The laser distance measuring meter is very easy to install with the help of the M4 and it is fed through the network (9 - 30 VDC for DLS-C and 24 ... 30 VDC for DLS-CH). The standard version of this Laser Distance Measuring Meter should always be used in connection with a PC. The measurement is activated from a PC or monitor. The measurement values are emitted either analogously or digitally. For connecting the Laser Distance Measuring Meter to a PLC, it is not necessary to use a PC. It should be noted that the SPS has RS-232 or RS-422 to serve as a connection to the Laser Distance Measuring Meter.

laser distance measuring meter DLS-C

The DLS Laser Distance Measuring Meter can be operated with a standard PC or connected to a PLC with RS-422 (management and reading of the distance measurement results)

- Measurement range from 0.05 to 150 m


- Interface RS-232, RS-422, optional


- Programmable analogue output 4...20 mA


- Connects up to 10 modules in a line


- Suitable for indoor and outdoor use


- Easy to handle and install


- Solid, shock resistant and resistant against      dust and water (IP 65)

- Very light

- No screen

- No keyboard

- Measures distances in almost any weather

- Case of die-cast aluminum

- Very precise

- Laser class 2 (< 0.95 mW)


View or print the user manual for the Laser Distance Measuring Meter series DLS-C
user msnusl of laser distance measuring meter series DLS-C.

Influence of the objects to measure/other influences

- All opaque objects can be measured. You will not get test results with clear objects

 - Smooth objects with a good reflection will give better and faster results than rough ones. Rough          surfaces have a negative influence on the measurement time (0.3 - 4 s)

- If there is a high concentration of dust between the EDM and the target, measuring e.g. cement        silos, this will have a negative influence on the measurement

 - Moving targets can be measured

Software

Download the software for the Laser Distance Measuring Meter

Technical Specificactions

Measurement range

0.05 ... 65 m on natural surfaces
0.05 ... 150 m with testing target

Accuracy

 DLS-C/CH15: ± 1.5 mm
 DLS-C/CH30: ± 3.0 mm

Resolution

 0.1 mm

Measurement time

 0.2 s ... 4 s for single measurements
 0.15 s for long measurements

Laser type

 class II (620 - 690 nm)

Diameter of the laser point in mm per meter

from 6 mm to 10 m, 30 mm to 50 m,  60 mm to 100 m

Interface

RS-232 and RS-422

Output

0/4 ... 20 mA

Software

 included

Power supply

 external  9 ... 30 V DC

Current draw

max. 140 mA to 24 V

Temperature range
DLS-C 15 and DLS-C 30

DLS-CH15 and DLS-CH30


- 10 ... + 50 °C single measurement
- 10 ... + 45 °C continuous measurement
-40 ... +50 ºC single measurement
-40 ... +45 ºC continuous measurement

Storage temperature

-40 ºC ... +70 ºC

Display

4 LED

Holder

3 screw M 4

Protection

IP 65

Case

aluminium

Dimensions

 150 x 80 x 54 mm

Weight

 670 g

Uses

Measurement of fill level measurement with the laser distance measuring meter series DLS-C
Measurement of fill
level measurement

Measurement of roll thickness series DLS-C.
Measurement of
roll thickness

Determination of the position with the laser distance measuring meter series DLS-C.
Determination of position

Measurement stability

The measurement accuracy of ± 3.0 or ± 1.5 mm comes from a statistical distribution of 95%. The typical variant can be taken from the diagram shown on the right.


Certain things and certain materials and their surfaces have a negative influence on the results of measurement

Measurement in a high temperature (> +50 ° C)


Measurement of a highly polished surface (e.g. a stainless steel cylinder with polished gloss)

Gauss diagram for the accuracy in the measurements of the laser distance measuring meter.

Harmful effects of laser light

The Laser Distance Measuring Meter series DLS is a part of the laser class II. The gauges of laser class II have a visible laser with low yield (<1 mW) so there is a probability to damage a person's eyes. If you look directly into the laser beam for a long period of time (> 15 min), it can result in eye damage. Never look at the laser with a magnifying glass. It should be noted that normally when a laser beam hits the eyes, they tend to close as a reflex. This reflex normally protects the eyes from being damaged with laser class II.

Connection

With the RS-232 or RS-422 outputs, you can transmit the measured values to the PC   RS-232 and RS-422 to bind to an SPS

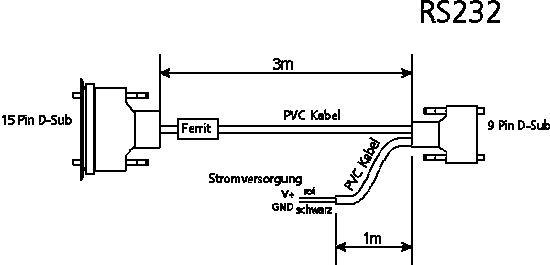

With the RS-232, a DLS-C sensor can be connected directly to the  PC

With the RS-232, a DLS-C sensor can be connected directly to a PC. For connection to the DLS-C sensor, a plug is used resulting in a close union (IP65). The connection to the PC is done with a D-Sub plug of 9-poles. A two-wire cable makes it easy to connect a power supply for the sensor.

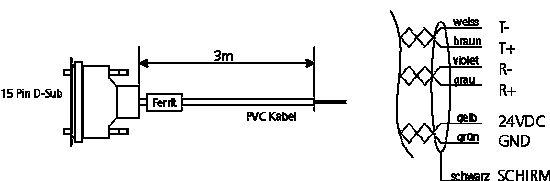

This cable makes it possible to easily connect a DLS-C sensor to a  RS-422 interface.

This cable makes it possible to easily connect DLS-C sensor to RS-422 interface. This cable provides connection (IP65) with the DLS-C sensor.

Delivery content:
1 x  DLS-C30 industrial Laser Distance Measuring Meter or DLS-C15 with software, please ask for the  RS-232 or RS-422

Optional

- Data cable RS-232 or RS-422 (the interface cable quickly defines the digital output type of the          Laser Distance Measuring Meter)/RS-232 or RS-422)

- Testing target

- Glasses

- Protection IP 65 connector, enables waterproof connection to a data cable

DLS-C30 & DLS-C15 laser distance measuring meter: technical information. Return to homepage.
