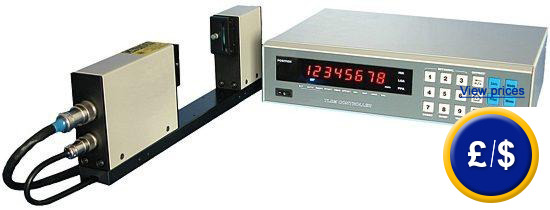

PCE-TLSM laser
micrometer
to measure different geometric forms from
0,03 to 90 mm
RS-232 port and
analogue
|
|
The PCE-TLSM laser
micrometer uses non-contact measuring methods.
The PCE-TLSM can be used for different measuring
principles. The PCE-TLSM laser micrometer
operates according to the scanning and shadow
principle. Now, it is possible to measure
elements which could not be preciously measured.
The PCE-TLSM laser micrometer can measure even
fast-moving materials. Thus, the PCE-TLSM laser
micrometer is suitable for non-contact
measurements in very hot, sticky or sterile
materials. This fact allows for the PCE-TLSM
laser micrometer to be used in automatic
production lines. The PCE-TLSM laser micrometer
is consists of a sensor and a control unit. Data
can be sent through an analogue or digital port
to your own measurement system to be included in
your production process.
Here you can
see the micrometer that best suits your needs.
|
|
 |
|
- Non-contact
measurement
- Different
measurement principles
- For individual and
series measurement.
- High measurement
quota
- Compact design |
- Large measurement
range
- High repeatability
- It is possible to
detect diverse measured objects.
View/ print user's
manual of the
PCE-TLSM laser micrometer
|
|
Technical specifications |
|
Product |
Measurement
range |
Resolution |
Repeatability |
Linear
deviation |
|
TLSM101 |
0,03 ... 1 mm |
±0,1 µm |
±0,3 µm |
±1 µm |
|
TLSM110 |
0,05 … 10 mm |
±0,1 µm |
±0,5 µm |
±1 µm |
|
TLSM130 |
0,5 ... 30 mm |
±0,1 µm |
±0,5 µm |
±1 µm |
|
TLSM160 |
1 ... 60 mm |
±0,1 µm |
±0,5 µm |
±1 µm |
|
TLSM190 |
1 ... 90 mm |
±0,1 µm |
±0,5 µm |
±1 µm |
|
Display |
7 digits
LED |
|
Sampling
rate |
1600 measurements every second |
|
Port |
RS-232C |
|
Analogue
output |
± 10 V |
|
Operating
temperature |
0 ... +45 °C, < 85 % H.r. |
|
Power |
240 V AC / 50 Hz |
|
Dimensions
of the control unit |
310 x 240 x 85 mm |
|
Weight of
the control unit |
approx. 3 kg |
|
Dimensions of the sensor TLSM101/110/130 |
420 x 110 x 35 mm |
|
Dimensions
of the sensor
TLSM160/190 |
520 x 176 x 40 mm |
|
Weight of
the sensor |
approx. 3 kg |
|
|
Measuring
principle |
|
The PCE-TLSM laser
micrometer to measure positions |
The PCE-TLSM laser
micrometer to measure separation distances |
|
The PCE-TLSM laser micrometer to measure an edge
position. |
The PCE-TLSM laser
micrometer to measure a diameter |
|
The PCE-TLSM laser
micrometer to measure separation distances.
|
The PCE-TLSM laser micrometer to measure the
axial clearance |
|
Contents
1 x PCE-TLSM micrometer, 1 x user's manual |
|
