Laser Particle Meter P311
Laser particle meter for measurement in cleanrooms or conventional rooms /
Storage capacity for 8,000 data sets / data sets stored as *.cvs files /
max. concentration: 4,000,000 particles/ ft3 / laser particle meter with internal pump

The laser particle meter is not only designed for cleanrooms, but also for evaluation and classification of the air quality in conventional rooms. The laser particle meter detects by means of laser technology smoothly slightest air pollutants of 0.0003 mm (0.3 Ám) calibre up to 0.005 mm (5 Ám). At the especially large coloured display three particle sizes can be shown simultaneously. Despite a low weight and compact measures the laser particle meter delivers reliable results and is especially easy to handle and very light. The 8,000 data sets will be displayed on the large coloured display and can be easily transferred via USB to a computer. The data will be stored as *.cvs files and can be read and revised via Excel. Here you will find an overview of all laser particle meters. If you have further questions about the laser particle meter, look at the following technical information, read the technical data or get in contact with us: laser particle 8" height="8"> US customers +1-410-387-7703. Our technicians and engineers will inform you about our laser particle meter or any other product of in the field of Regulation and Control, Measuring Instruments or Scales and Balances of PCE Instruments Ltd

Laser particle meter P311 overview  User manual for the laser particle meter P311  EC certificate for the laser particle meter P311  Video for the laser particle meter P311  Laser particle meter P311 further Images  Technical specifications for the laser particle meter P311

More information on the laser particle meter P311

- With filter test
- Max. concentration: 4,000,000 particles/ ft3
- USB connection for data download
-
Data storage for 8,000 data sets
- Included software
- For measurement in cleanrooms
- Large coloured display

- Units: particle/ m3 or particles/ ft3
- With stand-connection
- Channel 1: 0.3 / 0.5 μm
- Channel 2: 0.5 / 1.0 / 2.0 / 2.5 μm
- Channel 3: 5.0 μm
- Storage as *.cvs file

General Technical specifications for the Laser Particle Meter P311

Measuring range:

0.3 ... 5.0 μm

Channel sizes:

Channel 1: 0.3 / 0.5 μm
Channel 2: 0.5 / 1.0 / 2.0 / 2.5 μm
Channel 4: 5.0 μm

Counting rate:

50% at 0.3 μm; 100% for particles > 0.45 μm (JIS)

Concentration limit:

max. 4,000,000 particles / ft3

Light source:

Laser diode

Counting aberrance:

< 1 particle/ 5 minutes ( fulfils JIS B9921)

Sampling air volume:

0.1 cfm (2.83 l/min)

Calibration:

NIST

Sampling drawing:

isokinetic sampling drawing, sensor for pipe connection

Collection modes:

for pipe connection
Collection modes:

Sampling drawing time:

1 secondů99 minutes 59 seconds (adjustable)

Sampling frequency:

1ů1999 cycles or continuously (adjustable)

Sampling air exit:

internal HEPA- filter

Vacuum production:

internal pump

Interface:

USB

Data storage:

8000 measuring values

Display:

8.8 cm diag. (3.5''), 320 x 240 pixels colour LCD

Voltage supply:

DC 5V 1A (Mini USB TYPE-B); 4 batteries AA

Battery operating time:

Up to 4.5 hrs. continuously (LCD back light low, for 2400 mAh Ni-MH battery)

Measures (LXAXH):

178 x 90 x 47 mm (without isokinetic sampling)

Weight:

480 g (without battery)

Standards:

JISB9921, ISO 21501-4

Operating conditions:

5░ ... 35░C, 20% ... 95% RH

Storage:

-20░ ... 50░C, 0% ... 98% RH

Delivery content of the Laser Particle Meter P311

1 x laser particle meter P311
1 x hardcase
1 x AC adapter
1 x isokinetic sampling sensor
1 x USB cable
1 x 0- filter test
1 x software
4 x AA batteries
1 x charger
1 x ISO calibration certificate (ISO 21501-4)
1 x quick guide
1 x instruction manual

Delivery content of the Laser Particle Meter P311

Application

Software of the Laser Particle Meter P311

Case of the Laser Particle Meter P311

Here you can see the large and clearly legible display of the laser particle meter P311

Here you can see the light and robust hardcase of the laser particle meter P311

Application of the Laser Particle Meter P311

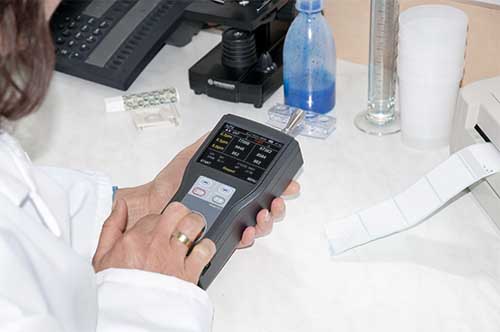

Here you can see the laser particle meter P311 during operation in a laboratory

Optional purchasable equipment:

ISO-calibration certificate
For firms that want to include the temperature meter into the firm-internal Checking meter pool or for annual re-calibration. The certification according to ISO standards includes a lab-calibration including a certificate with all data.

Technical Specifications for theálaser particle meter P311
