Material Moisture Tester PCE-PMI 1
Non-destructive material moisture tester / measuring method is the electrical resistance in the material / moisture measurements of concrete, wood, plaster,
mortar etc. / max., min. and hold function

The Material Moisture Tester PCE-PMI 1 is an ideal device for local control at wood yards, building purposes or for use within the house. The material moisture meter enables fast and reliable determination of moisture content in wood and building materials. The battery-powered device doesn't damage the surface of the material while taking measurements of the moisture content. This measurement method also allows repeated measurements at the same place. The PCE-PMI 1 testes is applied in construction, wood, tool trade and sanitary facilities. The material moisture meter has an important role in the non-destructive control of wall drying. In new buildings, the masonry has to dry before plastering. Otherwise the walls cannot release sufficient moisture. In older buildings with poorly insulated walls, the moisture meter can aid in finding damp places. Here are the most important topics of mould, heating and ventilation. In the wood processing industry and forestry, the Material Moisture Meter PCE- PMI 1 is used to determine the moisture in wood. The drying status is critical to the further use and therefore the value of the wood. The housing of impact-resistant plastic protects the hand-held device when used in harsh environments: building purposes, in wood or in machine shops. The operation of the Material Moisture Meter PCE-PMI 1 is very simple. A light touch of the material with the measuring ball is enough to measure degrees of moisture up to 40 mm deep into the object without damaging it. After pressing the yellow button, the measured values appear on the display in comfortable large numbers. These are, due to the backlighting, even in poor light conditions, easy to read. The min./max. function saves peak values for different measurements. The ergonomically designed Material Moisture Meter PCM-PMI 1 with its four different coloured buttons is user-friendly. The Material Moisture Meter PCE-PMI 1 measures the electrical resistance of the material for determining its moisture content. The measured value is shown in the measuring range from 0 up to 100 digits on the display. If you have any questions about the Material Moisture Meter, please contact us: +44 ( 0 ) 2380 98703 0. An overview of all Material Moisture Meters can be found here: Material Moisture Meters. Our technicians and engineers will gladly give you advice on this material moisture meter and all other products in the field of measuring instruments, regulation and control and scales.

User manual for the Material Moisture Tester PCE-PMI 1  EC certificate for the Material Moisture Tester PCE-PMI 1  Video for the Material Moisture Tester PCE-PMI 1  Material Moisture Tester PCE-PMI 1: Software.  Technical specifications for the Material Moisture Tester PCE-PMI 1  Information for the Material Moisture Tester PCE-PMI 1

Material Moisture Meter PCE-PMI 1

- Impact-resistant plastic
- Sensor type metal spheroid
- Penetration depth of 20 - 40 mm
- Selectable LCD backlight
- Auto-off-function
- The measuring principle is the electrical
  resistance of the material

- Moisture measurements of concrete, wood,
  plaster, mortar, etc.
- Min./Max. function
- Hold-function
- Material moisture measurements without
  damaging the surface

Technical Specification

Measuring range

0 ... 100 digits

Resolution

1 digit

Penetration depth

20 ... 40 mm

Measuring principle

Capacitive (electrical resistance)

Sensor type

Metal spheroid

Display

LCD Display

Battery

1 x 9 V Battery

Dimensions

180 x 45 x 35 mm

Weight

180 g

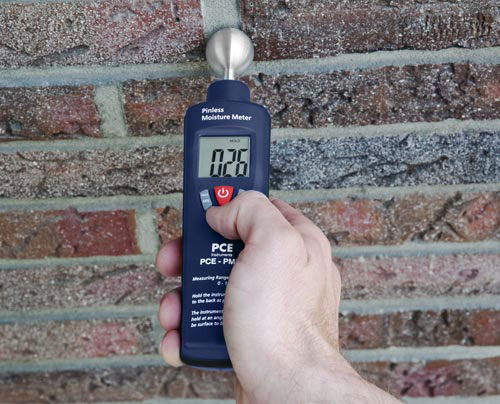

The Material Moisture Meter for checking the moisture in building material

Material Moisture Meter checking the moisture in bathroom

Delivery content

1 x Material Moisture Meter PCE-PMI 1, 1 x battery and user manual

further information about the Material Moisture Tester PCE-PMI 1 return to homepage

Here you can see further products in the field of "Material moisture meter".

- PCE-WP21 Material Moisture Meter for Building Material
  (moisture meter for building materials to measure humidity of concrete)

- PCE-WP24 Material Moisture Meter for Building Material
  (moisture meter for wood / for different wood types and building materials)

- PCE-HGP series Material Moisture Meter for Building Material
  (combined moisture meter to measure moisture and temperature)

- FMW-B series Material Moisture Meter for Building Material
  (moisture meter for building material)

- FMW-T series Material Moisture Meter for Building Material
  (moisture meter for building material)

- FMC series Material Moisture Meter for Building Material
  (moisture meter for building material)

- FME Material Moisture Meter for wood
  (similar to the FMC model but with automatic compensation of temperature)

- FMD Material Moisture Meter for wood
  (programmable characteristic curves. Results can be transferred to a PC)
