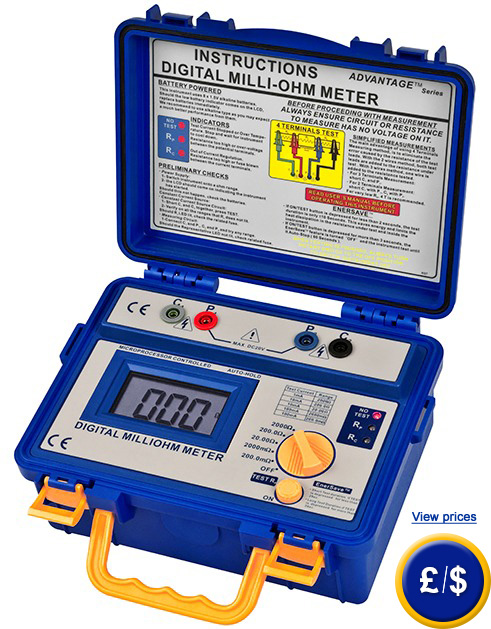

Milliohm tester PCE-MO 2002
series
(milliohm tester with
ruggedized and waterproof carrying case.
With highly
accurate measurement range) |
|
This milliohm tester comes
with a housing protected against water splash. With the
Milliohm tester PCE-MO 2002 series you can measure from
100 μΩ up to 2000 Ω. With this milliohm
tester measurement values are
displayed by means of a LCD display with 3,5 digits and
a good readability. Milliohm tester detect the measurement value, a
constant current is mated on the object is going to be
measured and then the voltage drop is tested. The
following functions and applications are highlighted:
- It allows to measure resistance in coils, generators, transformers,
parallel and secondary circuits, commutators and
relay.
- It measures binding energy in mines, planes, rail systems, boats and
electrical installations in both industry and home.
- It allows continuity tests in circularly systems (ring network) in
industry and home
- To test compression elements in airlines, testing works and
maintenance of electric cupboards and elements such as
fuses, connectors, contacts, etc...
It
comes calibrated from the manufacturer and an optional
laboratory calibration and ISO certificate can be
ordered separately for annual recalibrations. At
this
link you can
find another milliohm tester with a water resistant
housing and measurement ranges from 100 μΩ
to 2000 Ω. At the following link you will find the
milliohm tester that best suits your needs.
|
-
Measurement system with
four conductors
-
Selection of 5
measurement ranges
-
3 test currents with
overheat fuse
-
Surge fuse in
measurement inputs.
-
Big LCD display
-
Elimination of the
measurement resistance in conducts.
-
Auto-Hold and Auto-Off
function
-
LED indication when the
Rp, Rc and temperature permitted values are
exceeded.
-
Light weight, solid and
compact
-
Waterproof housing with
ring seal
-
Security: IEC-1010-1; CAT IV 20
V
|
View / print user's manual of
the Milliohm tester PCE-MO 2002 series
 |
|
Technical specifications |
|
Measurement ranges |
0 ... 200 mΩ
/ 100 μΩ
0 ... 2000 mΩ / 1 mΩ
0 ... 20 Ω / 10 mΩ
0 ... 200 Ω / 100 mΩ
0 ... 2000 Ω
/ 1 Ω |
|
Accuracy |
± 0,5 % of the measurement
value, ± 2 digits along the entire range of the
operating temperature: -15 ... +55 °C (in measurements
with the attached testing cables) |
|
Test current |
1 mA (range of 2000 Ω)
10 mA (range of 200/20 Ω)
100 mA (range of 2000 m Ω/ 200 mΩ) |
|
Test current accuracy |
± 0,1 % |
|
Max. output voltage (C1-C2) |
20 V |
|
Power |
8 x 1,5 V (AA) batteries |
|
Dimensions |
250
x 190 x 110 mm |
|
Weight |
1,5 kg |
|
Standard |
IEC-1010-1; CAT IV
20 V |
|
Measurement methods |
|
Easy two phase measurements |
Highly accurate four phase measurements |
|
Delivery contents
1 Milliohm tester PCE-MO 2002 series, 1 testing cable
set, 1 supporting strap, 8 batteries and user's
manual.
|
|
Additional components
- Laboratory calibration with the ISO calibration
certificate (when the tester is ordered or as an
annual recalibration). |
 |
 |
|
