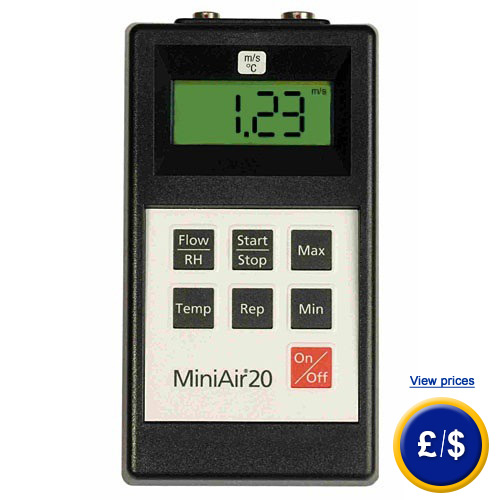

Multifunctional Anemometer MC20
Multifunctional anemometer for the measurement of small flow velocities /
industrial flow meter / range from 0.4 m per sec to 40 m per sec / automatic sensor detection
>>> The sensors are not part of the delivery content (order separately) <<<

This multifunctional anemometer serves as the perfect gadget to measure small air flows. In addition to that the multifunctional anemometer is able to estimate temperature, air humidity as well as volume flow. Furthermore it is the perfect equipment to measure and control machines. Besides all that you can use it to get a better view on the atmospheric environment of your home, office,... You will be able to save the measured data on the multifunctional anemometer in order to print the data at a later point of time. The measurements that have been made with the multifunctional anemometer are not affected by air pressure, temperature or humidity. With exchangeable winged wheel sensors, the multifunctional anemometer can be adjusted to make any specific measurement in the air channel or wherever you need it. The measurement of flow velocity with the multifunctional anemometer is considered to be the most accurate of all possible methods. The speed is almost linear to flow velocity. Here you will find an overview of all multifunctional anemometers. If you have any further questions regarding the multifunctional anemometer, take a look at the following technical specifications or contact us: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you on all products connected to the multifunctional anemometer and all products in the field of regulation and control, measuring instruments and scales.

  - Automatic sensor recognition
  - Very easy to use and ergonomic
  - Output for logging
  - Adjustable measuring rate from 2 s to 2 h

- Analog output 0 - 1 V
- Average and peak measurements
- Exchangeable heads
- IP 40 protection

Technical specifications of the Multifunctional Anemometer

Measurement unit

Flow: m/s, km/h
Temperature: ºC, °F
Humidity:% H.r.
Volume flow: m³/h, l/s, m³/s

Media of the plastic probe

gas or liquids, non-corrosive
probe for relative humidity and water

Media

agressive

Display

TFT

Measurement rate

2 measurements/second

Outputs

flow/humidity 0...1 V
temperature: 10 mV/°C, 0 V = -20 ºC
high temperature: 2 mV/°C, 0 V = 0 °C
Mini2logger output (interval  0.5 s)

Power supply

lithium battery

Energy consumption

approx. 15 mA

Battery life

approx. 15 hours

Housing dimensions

80 x 145 x 39 mm

MC20 protection type

IP 40

Weight

approx. 218 g

Operating temperature

0 ... +50 ºC

Storage temperature

-30 ... +80 ºC

Air humidity

0 ... 90% RH (non condensed)

Delivery content of the Multifunctional Anemometer

1 x multifunctional anemometer MC20 , 1 x battery (9 V), 1 x battery charger,
1 x micro-SD memory card and user manual

>>> The sensors are not included in the shipment <<<
Sensors for the Multifunctional Anemometer MiniAir20/MiniWater20
Micro-sensor for air and liquid for the Multifunctional Anemometer

General specifications

Head dimensions

Ø 11 x 15 mm

Opening of the input

16 mm

Cable length

165 mm

Storage temperature

-65 ... +150 ºC

Mini Probe for the Multifunctional Anemometer

Technical specifications

Head dimensions

Ø 22 x 28 mm

Input opening

35 mm

Probe length

175 mm

Storage temperature

-65 ... +150 ºC

Steel mini probe for the Multifunctional Anemometer

Air probe for the MC20

Mini 95.0284

Measurement range

0.7 ... 20 m/s

Accuracy

± 1.0% full scale
± 2.0% of measured value

Temperature range

-20 ... +140 ºC

Accuracy

±0.5 °C

Operating temperature

-30 ... +140 ºC

Head dimensions

Ø 22 x 28 mm

Input opening

35 mm

Probe length

182 mm

Probe cable

1.5 m

Storage temperature

-65 ... +150 ºC

Macro-probe for the Multifunctional Anemometer

General specifications

Head dimensions

Ø 85 x 80 mm

Sensor length

235 mm

Cable length

1.5 mm

Storage temperature

-65 ... +150 ºC

Mini-probe up to +250 ºC for the Multifunctional Anemometer

General specifications

Head dimensions

Ø 22 x 28 mm

Input opening

35 mm

Probe length

182 mm

Cable length

2.4 m (250 ºC continuous)
1.5 m from the case analysis

Storage temperature

-65 ... +150 ºC
(cable and analysis box up to 65 ºC)

Humidity sensor for the Multifunctional Anemometer

Temperature and humidity sensor for the MC20

HygroAir 95.0272

Humidity range

0 ... 99.9% H.r.

Verification accuracy

± 1.0% R.H.. between 10 - 95% R.H.

Reproducibility

0.5% R.H.

Temperature range

-10 ... +60 ºC

Verification accuracy

±0.35 ºC with -10 ... +50 ºC

Reproducibility

0.1 ºC

Head dimensions

Ø 22 x 32 mm

Handle dimensions

Ø 25 mm

Input opening

Ø 26 mm

Sensor length

195 mm

Cable length

1.8 m

Storage temperature

-65 ... +150 ºC

Speed sensor for the Multifuncional Anemometer

Speed sensor for the MC20

Speed sensor 95.0271

Measurement range

10 ... 9999 rpm

Resolution

10 rpm

Accuracy

20 rpm

Operating temperature

0 ... 60 ºC

Head dimensions

Ø 13 x 40/45 mm

Handle dimension

Ø 15 x 120 mm

Input opening

Ø 14 mm

Sensor length

180 mm

Cable length

1.5 m

Storage temperature

-65 ... +150 ºC

Universal temperature probe for the Multifunctional Anemometer

Temperature probe for the MC20

 Universal temperature probe 95.0099

Measurement range

-20 ... 140 ºC

Resolution

0.1 ºC

Accuracy between 0...+70 ºC

0.2 ºC

Operating temperature

0.5 ºC, -30 ... +140 ºC

Head dimensions

Ø 3 x 100 mm

Handle dimension

Ø 10 x 80 mm

Input opening

Ø 4 mm

Sensor length

180 mm

Cable length

1.5 m

Storage temperature

-65 ... +150 ºC

Universal air probe for the Multifunctional Anemometer

Air probe for the MC20

Air probe 95.0198

Measurement range

-20 ... 140 ºC

Resolution

0.1 ºC

Accuracy between 0...+70 ºC

0.2 ºC

Operating temperature

0.5 ºC, -30 ... +140 ºC

Head dimensions

Ø 3 x 100 mm

Handle dimension

Ø 10 x 80 mm

Input opening

Ø 5 mm

Sensor length

180 mm

Cable length

1.5 m

Storage temperature

-65 ... +150 ºC

Surface temperature probe for the Multifunctional Anemometer

Surface temperature MC20

Surface temperature 95.0199

Measurement range

-20 ... 140 ºC

Resolution

0.1 ºC

Accuracy between 0...+70 ºC

0.2 ºC

Operating temperature

0.5 ºC, -30 ... +140 ºC

Head dimensions

Ø 3 x 100 mm

Handle dimension

Ø 10 x 80 mm

Sensor length

180 mm

Cable length

1.5 m

Storage temperature

-65 ... +150 ºC

Universal high temperature probe for the Multifunctional Anemometer

High temperature probe for the MC20

Universal high temperature probe 95.0273

Measurement range

-20 ... 600 ºC

Resolution

1 ºC

Accuracy between 0...+70 ºC

0.5 ºC, 1.0 ºC

Operating temperature

0 ... +600 ºC

Head dimensions

Ø 3 x 230 mm

Handle dimension

Ø 22 mm

Input opening

Ø 4 mm

Probe length

350 mm

Cable length

1.8 m

Storage temperature

-65 ... +150 ºC

ISO calibration certificate

Some time of operation may lead to changes on the anemometer multifunction MiniAir20 which is likely to influence the measurement accuracy. At any time you may request a recalibration ISO certificate. You can also ask for it with the first order.
