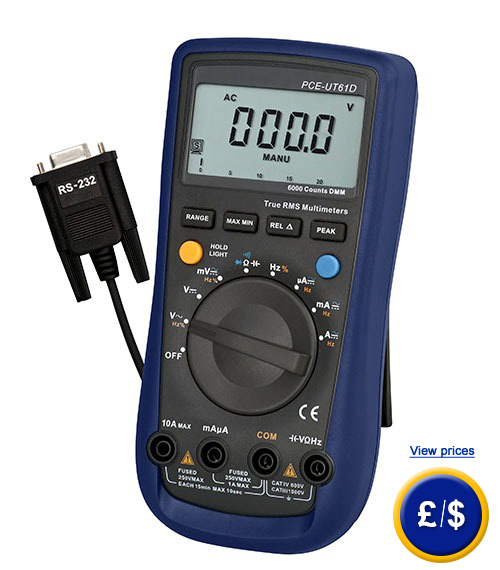

TRMS PCE-UT 61D Multimeter

TRMS PCE-UT 61D Multimeter (CAT IV / 600 V) TRMS measurement / max./min./mean value / measurement of capacitance / RS-232 port / large LCD display / Auto-range
The digital TRMS PCE-UT 61D multimeter has many different applications. The case of the TRMS PCE-UT 61D multimeter comes with a housing to protect it against harsh conditions. The TRMS PCE-UT 61D multimeter has a rotatory button to select the desired magnitude. The Auto range function is able to automatically search the optimum measurement range, however it can be selected manually. The TRMS PCE-UT 61D multimeter has a clear high contrast backlight LCD display with a indicator up to 6000 to allow for a good reading from any viewing angle even with poor light conditions. The TRMS PCE-UT 61D multimeter offers diverse functions such as: Hold function, max./ min./r elative value to allow for a quick and secure measurement. In AC current and voltage, the TRMS PCE-UT 61D multimeter indicates the real effective value (TRMS), that is a frequency range from 45 Hz to 3 kHz. Besides, the TRMS PCE-UT 61D multimeter can measure both capacitance and frequency. Through the RS-232 port, data can be transferred and stored by means of the software. These properties make the TRMS PCE-UT 61D multimeter the ideal device to be used in laboratories, research instutites as well as for a electrician on the spot. At the following link you will find an overview of all the multimeters available at PCE-Instruments.

TRMS PCE-UT 61D multimeter
- Robust case - Max. / min. / relative value - RS-232 port - Auto range selection - TRMS measurement - Frequency range up to 3 kHz		- High contrast LCD display to ensure a good readability even in harsh conditions. - Measurement of capacitance - The software and interface cable are included in the delivery - Data can be also registered by means of the software. - IEC 61010: CAT III 1000 V / CAT IV 600 V
Technical specifications
Magnitude	Measurement range/ resolution	Accuracy 45 Hz - 1 kHz 1 kHz - 3 kHz
AC voltage	60 mV / 0,01 mV	± (1,2 % + 5 digits)	± (2,0 % + 5 digits)
	600 mV / 0,0001 V	± (1,0 % + 3 digits)	± (1,5 % + 5 digits)
	6 V / 0,001 V	± (1,2 % + 5 digits)	± (3,0 % + 5 digits)
	60 V / 0,01 V	± (1,2 % + 5 digits)	± (1,5 % + 5 digits)
	600 V / 0,1 V	± (1,5 % + 5 digits)	± (2,0 % + 5 digits)
	750 V / 1 V	± (2,0 % + 5 digits)	± (3,0 % + 5 digits)
AC current	600 µA / 0,1 µA	± (0,8 % + 3 digits)
	6000 µA / 1 µA
	60 mA / 0,01 mA	± (0,5 % + 1 digits)
	600 mA / 0,1 mA
	6 A / 0,001 A
	10 A / 0,01 A	± (1,0 % + 3 digits)
DC voltage	60 mV / 0,01 mV	± (1,0 % + 3 digits)
	600 mV / 0,1 mV
	6 V / 0,001 V
	60 V / 0,01 V
	600 V / 0,1 V	± (1,2 % + 5 digits)
	1000 V / 1 V
DC current	600 µA / 0,1 µA	± (1,2 % + 2 digits)
	6000 µA / 1 µA	± (1,0 % + 3 digits)
	60 mA / 0,01 mA
	600 mA / 0,1 mA
	6 A / 0,001 A	± (1,2 % + 5 digits)
	10 A / 0,01 A
Resistance	600 Ω / 0,1 Ω	± (1,2 % + 2 digits)
	6 kΩ / 0,001 kΩ	± (1,0 % + 2 digits)
	60 kΩ / 0,01 kΩ
	600 kΩ / 0,1 kΩ
	6 MΩ / 0,001 MΩ	± (1,2 % + 2 digits)
	60 MΩ / 0,01 MΩ	± (1,5 % + 2 digits)
Capacitance	40 nF / 0,01 nF	± (3,0 % + 5 digits)
	400 nF / 0,1 nF
	4 µF / 0,001 µF
	40 µF / 0,01 µF
	400 µF / 0,1 µF	± (4,0 % + 5 digits)
	400 µF / 1 µF	non-specified
Diode test		No-load voltage: approx. 2,8 V, resolution: 0,001 V
Continuity test		No-load voltage: approx. 0,45 V, resolution: 0,1 Ω
Display		Backlingt LCD display with counter up to 6000 values
Range selection		automatic/ manual
Measurement quota		2-3 per second
Operating temperature		0 ... + 40 ºC (operating) -10 ... + 50 °C (storaging)
Relative humidity		max. 75 % H.r. (below 31 ºC ) max. 50 % H.r. (above 31 ºC )
Power		9 V battery
Battery indication		Low battery indication
Dimensions		180 x 87 x 47 mm
Weight		370 g
Rate of contamination		II
Standard		IEC61010: CAT III 1000 V / CAT IV 600 V
Delivery contents 1 x PCE-UT 61D multimeter, 1 x test cable set, 1 x software and interface cable, 1 x battery and user’s manual.
Test cable and data cable for the TRMS PCE-UT 61D multimeters		TRMS PCE-UT 61D multimeter: Optional accesories
Options
- ISO Calibration Certificate For companies that wish to include this device in their set of internal testing tools or for annual recalibrations. The ISO certificate includes a laboratory calibration and a control document with all the measurement values. ISO calibration certificate can be performed with current (AC / DC) or voltage (AC / DC).
- Amp clamp adaptor Adaptor for indirect measurement of current up to 1000A without interrupting the cable. - Range: 200 / 1000A DC / AC - Accuracy: ±1.5 / 2% - A DC zero reset Dimensions: 190 x 64 x 33mm Maximum diameter of cable: 33.5mm
- Revolution adaptor Adaptor with revolutions sensor and 1m cable. For optical measurement of revolution between 100 and 20,000 RPM in two ranges. - 0.1mV DC / 1 RPM (range 1) - 0.1mV DC / 10 RPM (range 2) Dimensions: 190 x 73 x 37mm
- Pressure adaptor Adaptor with pressure sensor and 1m cable. For absolute measurement of pressure between 3.5 and 3500kPa. - Accuracy: ±1% (up to 1700 kPa); ±2% (up to 2400 kPa) and ±5% (up to 3500 kPa) - Resolution: 0.1/ 1 kPa Dimensions: 100 x 50 x 25mm; 1/4" sensor
- Humidity adaptor Adaptor with humidity sensor in a handle and with 1m cable. - Range: 10 to 95% r.h. - Accuracy: ±3% r.h. - Resolution: 0.1% r.h. Dimensions: 100 x 50 x 25mm
- Light adaptor Adaptor with light sensor and 1m cable. - Three rages: 0 to 2000 / 0 to 20,000 and 0 to 50,000 lux - Accuracy: ±5% - Resolution: 1, 10, 100 lux Dimensions: 100 x 50 x 25mmA
Air velocity adaptor Adaptor with an air velocity sensor and 1m cable. - Range: 0.2 to 30 m/s; - Accuracy: ±2% - Resolution: 0.1 (m/s; km/h; knots) Dimensions: 100 x 50 x 25mm
- Sound adaptor Adaptor with sound sensor and 1m cable. A-weighting; can be externally calibrated (PCE-SC 41 calibrator) - Ranges: 30 to 130dB (in three ranges) - Accuracy: ±1.5dB (IEC 651 class II) Dimensions: 107 x 53 x 29mm
- EMF adaptor Adaptor with EMF sensor and 1m cable. Range: 0 to 20 microTesla / 200 milliGauss Accuracy: ±4% Resolution: 0.1 µTesla / 1 milliGauss Bandwidth: 30 to 300 Hz Dimensions: 100 x 50 x 25mm
Definition and information of interest for multimeters: The digital multimeter is for measuring electrical magnitudes, combining different modes and ranges of measurement in a single device. The standard features of a multimeter allow for measuring voltage and the intensity of current across different ranges. Normally the multimeter can be set for measuring continuous current (DC) or alternate current (AC). It is also capable of measuring resistance and continuity by using an audible signal. Modern digital multimeters now also offer the possibility of measuring frequency, capacity and temperature.
