TRMS PCE-UT 61E Multimeter (CAT IV / 600 V)
TRMS multimeter / RS-232 port / large LCD display / auto-range / up to 22,000 values/
relative and peak value functions / measurement of capacitance / frequency range up to 10 kHz

The TRMS PCE-UT 61E Multimeter is the ideal device for laboratories, research institutes as well as for the electricians to be used on the spot. The multimeter offers diverse functions such as: Hold function, max./min./relative and peak value to allow quick and secure measurements. In AC current and voltage measurements, the TRMS PCE-UT 61E Multimeter indicates the real effective value (TRMS), that is a frequency range from 45 Hz to 3 kHz. Furthermore, the TRMS PCE-UT 61E Multimeter can measure both capacitance and frequency. Through the RS-232 port, data can be transferred and stored by means of software. The TRMS PCE-UT 61E has a rotatory button to select the desired magnitude. The Auto range function is able to automatically search the optimum measurement range, however it can be selected manually. The TRMS PCE-UT 61E has a clear high contrast backlight LCD display with an indicator up to 22,000 values to allow a good reading from any viewing angle, even in poor light conditions. The case of the TRMS PCE-UT 61E protects it against harsh conditions. At the following link you can find the multimeter which will suit your needs.

User manual for the TRMS PCE-UT 61E multimeter  EC certificate for the TRMS PCE-UT 61E multimeter  Video for the TRMS PCE-UT 61E multimeter  TRMS PCE-UT 61E multimeter: Software.  Technical specifications for the TRMS PCE-UT 61E multimeter  Information for the TRMS PCE-UT 61E multimeter

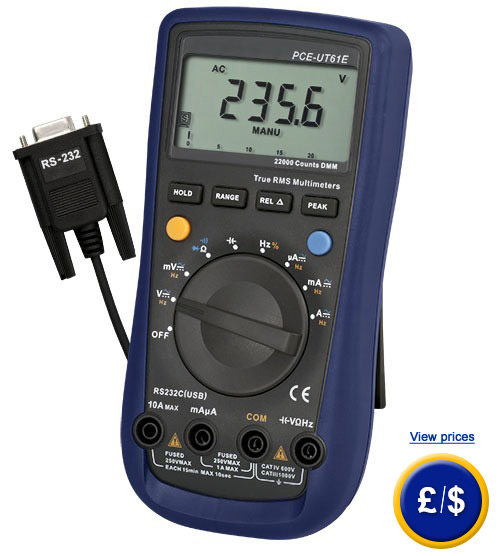

TRMS PCE-UT 61E Multimeter ideal to be used in laboratories, research instutites as well as for a electrician on the spot.
PCE-UT 61E Multimeter.

- Measurement of capacitance

- Diode and Continuity test

- Software and data cable are included in the         delivery

- Data can be registered by means of the              software

- Robust housing

- Relative and peak value function

- RS-232 port

- Auto-range selection

- TRMS measurement

- Frequency range up to 10 kHz

- High contrast LCD display with counter up to       22,000 values

- IEC 61010: CAT III 1000 V/CAT IV 600 V

Technical specifications

Magnitude

Measurement range/ resolution

Accuracy
5 Hz - 1 kHz      1 kHz - 10 kHz

AC voltage

220 mV/0.01 mV

± (1.0 % + 10 digits)

± (1.5 % + 50 digits)

2.2 V/0.0001 V

± (0.8 % + 10 digits)



± (1.2 % + 50 digits)

22 V/0.001 V

220 V/0.01 V

± (2.0 % + 50 digits)

750 V/0.1 V

± (1.2 % + 10 digits)

± (3.0 % + 50 digits)
AC current

220 µA/0.01 µA

± (0.8 % + 10 digits)

± (1.2 % + 50 digits)

2200 µA/0.1 µA

22 mA/0.001 mA

± (1.2 % + 10 digits)

± (1.5 % + 50 digits)

220 mA/0.01 mA

2.2 A/0.0001 A

± (1.5 % + 10 digits)

1 kHz - 5 kHz
± (2.0 % + 50 digits)

DC voltage

220 mV/0.01 mV

± (0.1 % + 5 digits)

2.2 V/0.0001 V

± (0.1 % + 2 digits)


22 V/0.001 V
220 V/0.01 V
1000 V/0.1 V

± (0.1 % + 5 digits)

DC current 220 µA/0.01 µA

± (0.5 % + 10 digits)



2200 µA/0.1 µA

22 mA/0.001 mA

220 mA/0.01 mA

2.2 A/0.0001 A

± (1.2 % + 50 digits)

10 A/0.001 A

Resistance 220 Ω/0.01 ± (0.5 % + 10 digits)
2.2 /0.0001 Ω
22 /0.001
220 /0.01
2.2 /0.0001

± (0.8 % + 10 digits)

22 /0.001

± (1.5 % + 10 digits)

220 /0.01

± (3.0 % + 50 digits)

Capacitance

22 nF/0.001 nF

± (3.0 % + 5 digits)

220 nF/0.01 nF

2.2 µF/0.0001 µF

22 µF/0.001 µF

220 µF/0.01 µF

± (4.0 % + 5 digits)


2.2 mF/0.0001 mF

22 mF/0.001 mF

Non-specified


220 mF/0.01 mF

Frequency

220 MHz/max. 0.001 Hz

± (0.01 % + 5 digits)

Diode test

No-load voltage: approx. 2.8 V, resolution: 0.001 V
Continuity test No-load voltage: approx. 1.2 V, resolution: 0.01 Ω
Display

LCD for 22,000 values

Range selection automatic/manual
Measurement quota

2-3 per second

Operating temperature

0 ... +40 ºC (operating)
-10 ... +50 °C (storing)

Relative humidity

max. 75 % H.r. (below 30 ºC)
max. 50 % H.r. (above 30 ºC)

Power

9 V battery

Battery indication

Battery low indication

Dimensions

180 x 87 x 47 mm

Weight

370 g (with battery)

Rate of contamination

II

Standard

IEC61010: CAT III 1000 V/CAT IV 600 V

Delivery content
1 x PCE-UT 61E Multimeter, 1 x test cable set, 1 x software and interface cable, 1 x battery and user manual.

Resistances and capacitances can be connected through the adaptor to the TRMS PCE-UT 61E multimeter.
Resistances and capacitances can be directly conected through the adaptor to the TRMS PCE-UT 61E Multimeter

The TRMS PCE-UT 61E multimeter is delivered with all the neccesary accesories to start working.
The TRMS PCE-UT 61E Multimeter is delivered with all the neccesary accessories

Options

- ISO Calibration Certificate

For companies that wish to include this device in their set of internal testing equipment or for annual recalibrations. The ISO certificate includes a laboratory calibration and a control document with all the measurement values. ISO calibration certificate can be performed with current (AC/DC) or voltage (AC/DC).

TRMS PCE-UT 61E Multimeter: ISO Calibration Certificate.
- Amp clamp adaptor
   Adaptor for indirect measurement of current up    to 1000 A without interrupting the cable.
   Range: 200/1000 A DC/AC
   Accuracy: ±1.5/2%
   A DC zero reset
   Dimensions: 190 x 64 x 33 mm
   Maximum diameter of cable: 33.5 mm
TRMS PCE-UT 61E Multimeter: Amp clamp adaptor.
- Revolution adaptor
   Adaptor with revolutions sensor and 1 m cable.
   For optical measurement of revolution between   100 and 20,000 RPM in two ranges.
   - 0.1mV DC/1 RPM (range 1)
   - 0.1mV DC/10 RPM (range 2)
   Dimensions: 190 x 73 x 37 mm
TRMS PCE-UT 61E Multimeter: revolution adaptor.
 - Pressure adaptor

Adaptor with pressure sensor and 1 m cable.
   For absolute measurement of pressure                between 3.5 and 3500 kPa.
   Accuracy: ±1% (up to 1700 kPa); ±2% (up to       2400 kPa) and ±5% (up to 3500 kPa)
   Resolution: 0.1/ 1 kPa
   Dimensions: 100 x 50 x 25 mm; 1/4" sensor
TRMS PCE-UT 61E Multimeter: Pressure adaptor.
 - Humidity adaptor
   Adaptor with humidity sensor in a handle and       with 1 m cable.
   Range: 10 to 95% r.h.
   Accuracy: ±3% r.h.
   Resolution: 0.1% r.h.
   Dimensions: 100 x 50 x 25 mm
TRMS PCE-UT 61E Multimeter: Humidity adaptor.
 - Light adaptor
   Adaptor with light sensor and 1 m cable.
   Three ranges: 0 to 2000/0 to 20,000 and 0 to      50,000 lux
   Accuracy: ±5%
   Resolution: 1, 10, 100 lux
   Dimensions: 100 x 50 x 25 mmA
TRMS PCE-UT 61E Multimeter: Light adaptor.
Air velocity adaptor
   Adaptor with an air velocity sensor and 1 m        cable.
   Range: 0.2 to 30 m/s;
   Accuracy: ±2%
   Resolution: 0.1 (m/s; km/h; knots)
   Dimensions: 100 x 50 x 25 mm
TRMS PCE-UT 61E Multimeter: Air velocity adaptor.
 - Sound adaptor
   Adaptor with sound sensor and 1 m cable.
   A-weighting; can be externally calibrated            (PCE-SC 41 calibrator)
   Ranges: 30 to 130 dB (in three ranges)
   Accuracy: ±1.5 dB (IEC 651 class II)
   Dimensions: 107 x 53 x 29 mm
TRMS PCE-UT 61E Multimeter: Sound adaptor
- EMF adaptor
   Adaptor with EMF sensor and 1 m cable.
   Range: 0 to 20 microTesla/200 milliGauss
   Accuracy: ±4%
   Resolution: 0.1 µTesla/1 milliGauss
   Bandwidth: 30 to 300 Hz
   Dimensions: 100 x 50 x 25 mm
TRMS PCE-UT 61E Multimeter: EMF adaptor

Definition and information of interest for multimeters:
The digital multimeter measures electrical magnitudes, combining different modes and ranges of measurement in a single device. The standard features of a multimeter allow to measure measuring voltage and the intensity of current across different ranges. Normally the multimeter can be set for measuring continuous current (DC) or alternate current (AC). It is also capable of measuring resistance and continuity by using an audible signal. Modern digital multimeters now also offer the possibility of measuring frequency, capacity and temperature.
