Optical  Distance Sensor ODSL 30 series
Optical distance sensor measures distance to objects / measuring time 30 ... 100 ms /
measuring range between 200 ... 300,000 mm / Geometric resolution 1.0mm /
certificated according to IEC 60947-5-2

The optical distance sensor ODSL 30 covers a vast application range. For example the optical distance sensor allows positioning transfer cars, cranes, lifting facilities. Even a measurement of the volume can be performed by measuring in two dimensions with simultaneously moving the object can be performed by means of the optical distance sensor ODSL 30 series. There are different editions of the optical distance sensor purchasable. Amongst others with analogue-, digital- and switching outputs. The distance, that the optical distance sensor is able to capture lay between 20 and 30,000 mm. To control the optical distance sensor it is equipped with a double-space LC display and a plastic foil keypad. During processing the optical distance sensor always shows the current values. All purchasable editions the shiftpoint of the switch-outputs can be programmed on the optical distance sensor easily through a teach-output. In case that you should have more questions regarding the optical distance sensor ODSL 30, please read the following technical data, use our contact form or call us: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you regarding the distance meters or all other products in the field of Control Systems, Laboratory Equipment, Measuring Instruments or Scales and Balances of PCE Instruments Ltd.

 Optical Distance Sensor User's manual for the Optical Distance Sensor ODSL 30 series Optical Distance Sensor ODSL 30 series Video of the Optical Distance Sensor ODSL 30 series More pictures of the Optical Distance Sensor Technical specifications  for the Optical Distance Sensor ODSL 30 series

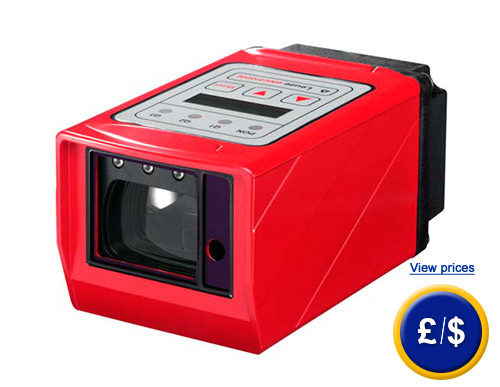

Optical Distance Sensor ODSL 30 series

- Up to 30,000 mm measuring range
- LC display to show values
- 1 mm resolution

- Teach input for simple programming
- Ideal for application in industrial sectors
- Measuring interval programmable: 30 ... 100 ms

Technical specifications

ODSL 30/V-30M-S12

Outputs

PNP / NPN / mA / V

ODSL 30/D485-30M-S12

Outputs

2 x PNP / NPN / RS485

ODSl 30/D232-30M-S12

Outputs

2 x PNP / NPN / RS232

General Specifications

Measurement range

200 ... 30,000 mm

Supply Voltage

10 ... 30 V, DC

Light source

laser, red

Laser Protection Class

2, EN 60825

Geometric Resolution

1.0 mm

Measuring accuracy, close range

2 %

Measuring accuracy, far range

1 %

Reference measuring inaccuracy

measuring range

Replication error

0.5 %

Reference replication error

final value

Measuring interval

30 ... 100 ms

Referencing

yes

Type analogue output

analogue output, current

Type switch output

transistor, push-pull

Connection type

Pin connectors

Winding size

M 12

Material

Plastics

Number of poles

8 hrs.

Dimensions

79 x 69  x 150 mm

Controlling element

foil- keypad

Surrounding temperature during operation

-10 ... +45 °C

Surrounding temperature during storage

-40 ... +70 °C

Protection type

IP 65

Protection class

II

Permission

CE, c UL, CDRH, UL

Validation Standard

IEC 60947-5-2

Delivery Content

1 x optical distance sensor ODSL 30 series, 1 x BT 30 for simple montage and justification,
1 x UPG-5 connecting cable

Technical information of the Optical Distance Sensor ODSL 30 series.
