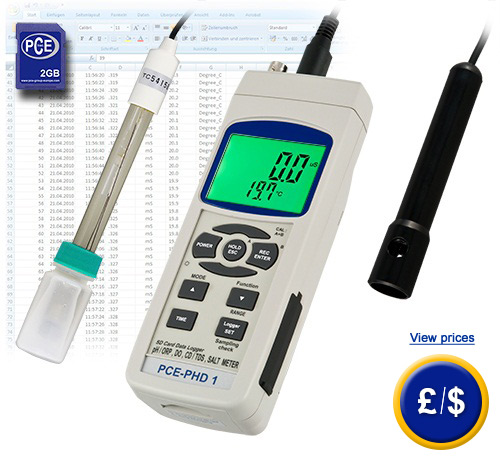

pH-EC-O2 Oxygen Meter PCE-PHD 1
|
|
|

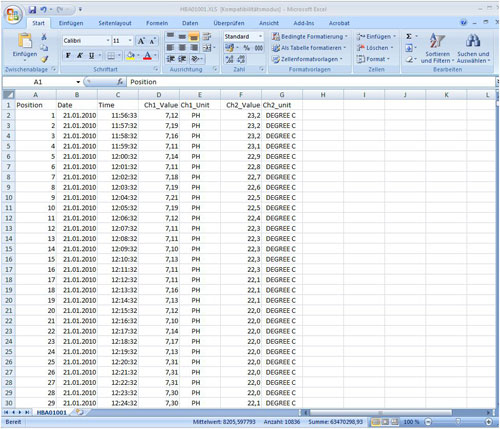

The Oxygen Meter PCE-PHD 1 is really a device with multiple capabilities for inspecting water quality. The portable Oxygen Meter PCE-PHD 1 is used for testing the pH value of water, conductivity, oxygen as well as measuring temperature. A three point calibration as well as an automatic temperature compensation guarantees a high level of accuracy even with variable temperature measurements. The Oxygen Meter PCE-PHD 1 is delivered with both a pH sensor and a conductivity sensor included. There are also other accessories available such as, different sensors and a software kit with an RS-232 cable. All values can be directly stored onto a SD card (up to 16 GB) in Excel format or transferred to a PC by means of the RS-232 interface. There is available an optional RS-232 interface with data cable. If you wish to view other oxygen meters, click the following link. |
|
|
|
|
|
View / print user's manual of |
|
|
|
 |
 |
|
pH measurement |
0.00 ... 14.00 pH 0.01 pH ±0.02 pH + 2 digits 3 points (pH 4, pH 7 and pH 10) automatic with additional temperature sensor (0 ... 60ºC) or manual (0 ... 100 ºC) |
| Conductivity Measurement ranges Resolution Accuracy Calibration Temperature compensation |
0 ... 200.0 µS/cm 0.2 ... 2.000 mS/cm 2 ... 20.00 mS/cm 20 ... 200 mS/cm 0.01 µS/cm 0.001mS/cm 0.01 mS/cm 0.1 mS/cm ±2 % of the measurement range + 1 digit 1413 mS/cm automatic (0 ... 60 ºC) |
| TDS Measurement range Resolution Accuracy Temperature compensation |
0 ... 132 ppm 132 ... 1320 ppm 1320 ... 13200 ppm 13200 ... 132000 ppm 0.1 ppm 1 ppm 10 ppm 100 ppm ±2 % of the measurement range + 1 digit automatic (0 ... 60 ºC) |
| Salt content Measurement range Resolution Accuracy Temperature compensation |
0 ... 12 % (of weight) 0.01 % ±0.5 % of the measurement range automatic (0 ... 60 ºC) |
| Oxygen Measurement range Resolution Accuracy Calibration Temperature compensation |
0 ... 20 mg/l (in water) 0 ... 100 % (in air) 0 ... 50 ºC 0.1 mg/l 0.1 % 0.1 ºC ±0.4 mg/l ±0.7 % ±0.8 ºC in the air automatic (0 ... 50 ºC) |
| Temperature Measurement range Resolution Accuracy Temperature compensation |
0 ... 60 ºC 0.1 ºC ±0.8 ºC automatic (0 ... 60 ºC) |
| Technical specifications | |
| Measurement rate |
1 second up to 9 hours |
| Display |
LCD |
| Memory |
SD card (up to 16 GB) |
|
Interface |
RS-232 |
| Software |
optional |
| Power supply |
6 x 1.5 V AA batteries |
| Operating conditions |
0 ... +50 ºC / <85 % H.r. |
|
Dimensions |
177 x 68 x 45 mm |
| Weight |
490 g |
 Here you will find an optional conductivity electrode available for the Oxygen Meter PCE-PHD 1 |
 Here you will find an optional pH electrode available for the Oxygen Meter PCE-PHD 1 |
| Delivery contents 1 X Oxygen Meter PCE-PHD 1, 1 x pH electrode, 1 x conductivity electrode, 1 x SD memory card, 1 x card reader, 6 x batteries and user's manual. |
|
 Here you will find an optional temperature sensor available for the Oxygen Meter PCE-PHD 1 |
 Here you will find an optional oxygen sensor available for the Oxygen Meter PCE-PHD 1 |
| Optional accessories - pH value calibration kit - Conductivity calibration kit - Oxygen electrode (note: electrolytic solution is required, order it separately) - Temperature sensor - Software kit (only for real time measurements) - Mains adaptor to use the device without batteries |
|
 |
 |
