PKT-2510 Power Analyzer
Power Analyzer with RS232 interface / universal application /
evaluation software for power analysis of appliances

The power analyzer PKT-2510 is designed as a tabletop unit or a portable device to measure effective power, apparent power, efficiency factor, alternating voltage, alternating current, direct current, DC voltage, resistance and frequency. The current- / power measurement can be either performed by means of the test lead, included in delivery, or directly via current probes. The analyzer furthermore provides the possibility of connecting industrial current converters with a converting ratio of 100/5 A or 1000/5 A. The large, clearly-legible LCD display with 93 x 52 mm, indicates several measurement results simultaneously, e.g. Watt, cos φ, ACV, ACA. Due to the optional power adapter PCE-PA-ADP, appliances with schuko plugs (up to 10 ACA) can be easily connected and measured in order to analyze them via the power analyzer. The power analyzer PKT-2510 is equipped with a RS232 data interface, and by means of the analysis software the data can be transferred to a computer, in order to be processed and stored. Thus the power analyzer is the ideal device for an application in workshops or for power analysis and error searches at appliances on-site. If there are any questions about this power analyzer PKT-2510, please have a look at the technical specification below or call: + 44 (0) 2380 98703 0. Our technicians and engineers will gladly advise you in all power analyzers and all products in the field of measuring instruments, regulation and control and scales

 Power Analyzer  PKT-2510  User manual for the  Power Analyzer  PKT-2510  EC certificate for the  Power Analyzer  PKT-2510  Video for the  Power Analyzer  PKT-2510   Power Analyzer  PKT-2510 20 further Images  Technical specifications of the  Power Analyzer  PKT-2510

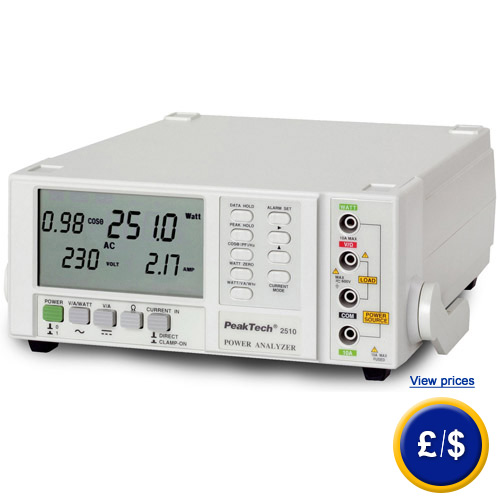

Power Analyzer PKT-2510

- Automatic range selection
- Multimeter function
- Current measurement direct or indirect through transformer or current probe
- Real power / apparent power measurement
- Power factor measurement

- Hold-function for measured value and peak value
- High- /Low - alarm function
- RS-232 interface
- Battery operation and adapter operation - option
- Safety: IEC-1010-1; CAT II 600 V
- Power consumption gauging (kWh)

Power Analyzer PKT 2510 Power Adapter
Power Analyzer PKT-2510: The image shows the additionally purchasable power adapter PCE-PA-ADP

Current probe for indirect current measurement
up to 200/1000 A without interruption of conductor
- measurement range: 200 / 1000 DCA / ACA
- accuracy: ± 1.5 / 2 %
- DCA zero-point adjustment
Dimensions: 190 x 64 x 33 mm
Max. conductor caliber: 33.5 mm

Current Probe Adapter CA 502
Image of the additionally purchasable current probe

Power Analyzer PKT-2510 software

Power Analyzer PKT 2510 analysis software

Both images show a screen shot of the analysis software included in the delivery of the power analyzer. Four values can be monitored at once and through the graphic display there can be long-term measurements nicely performed and evaluated at a later time.

Technical Specifications

Function

Measurement range; resolution; accuracy

Real Power measurement (AC, rms), direct measurement

1 W ... 6 kW; 1 W; ±1.5 % + 5 dgt.

Real Power measurement (AC rms), via external current probe or current converter

1 W ... 999.9 kW; 1 W; ±1.5 % + 5 dgt.

Apparent Power measurement (AC)

0.01 VA ... 9.999 kVA; 0,01 VA; ±2 % +2 dgt

Power factor (cos φ)

0.00 ... 1.00; 0.01; ±1.5 % + 2 dgt.

KWh meter

0.001 Wh ... 9999 kWh; 0.001 Wh; ±1 % + 1 dgt.

ACV /DCV

0.1 V ... 600 V; 0.1 / 1 V; ±1 % + 1 dgt. (101 ... 600 V)

AC output eff/rms
DC output eff/rms

direct max. 10 A; 10 mA, with inductive probe head max. 1000 A; 1 A; ±1 % + 3 dgt.

ACA clamp

up to 2000 A (depending on clamp)

Frequency

10.0 ... 999 Hz; 0.1 Hz; 1 % + 1 dgt.

Ohm

1 Ω ... 19.99 kΩ; 1 / 10 Ω; ±1 % +1 dgt.

Display

93 x 52 mm  multifunction- LCD- display

Surrounding conditions

max. 80 % relative humidity / 0 ... +50 °C

Voltage Supply

6 x 1.5 V AA battery or adapter

Dimensions (W x H x D)

280 x 210 x 90 mm

Weight

1600 g

Examples of application

In the picture at the right the power analyzer PKT-2510 is shown during operation in areas of computer repairs. Due to the application of the power adapters, the current consumption and power measurement can be performed without extent wiring, quickly and safe from contact voltages.

Power Analyzer PKT-2510 application

Power Analyzer PKT-2510 application: display

Here you can see the large and informative LCD display of the power analyzer. A maximum of four indices can be shown simultaneously. The way of indication changes depending on the function mode. Furthermore the optionally purchasable Power Adapter shown clearly. Simply plug the adapter to the jack and connect the appliances via the schuko plug with the power adapter.

At this application the heating power of an electric fan heater is shown after successful repair is checked by means of the power analyzer PKT-2510. Even here the power adapter proves itself helpful. Easy montage with highest safety, none blanc cable ends as mostly common. With the power analyzer all electrical devices up to 10 A can be directly, very accurately and easily checked, as well as large-scale consumers (with current probe and current transformer).

Power Analyzer PKT-2510 heater check

Delivery Content

1 x power analyzer PKT-2510, 1 set of inspection lines, 1 x RS232 cable, 1 x analysis software, 6 x batteries and instruction manuals

Optional Equipment

- Power Adapter for quick and easy measurement of loads with schuko plugs
- Current probe for inductive continuous current measurement up to 1000 A
- Local calibration including calibration certificate and ISO certification
- Plug adapter for operation for stationary application

Power Analyzer PKT-2510 principle
Principle of Power analysis

Definitions and facts worth knowing:
During Power analysis in DC circuits, the power is calculated definitely by the formula: P=U * I, i.e. the product of the electrical voltage U and electrical current I. If an instantaneous phase between current and voltage appears during the measurement of alternating voltages (e.g. circuit voltage 50 Hz), the effective power P must be considered. For a combined measurement of electrical power therefore a power analyzer provides a current- and a voltage- path. The indicator P (real power) equals as mentioned above the product of both factors.
In practice there are three types of power to distinguish:
- Apparent power S measured in VA
- Real power (and equal power) P measured in W (watt)
- Reactive power Q measured in VAR (volt-ampere-reactive)

Power Analyzer PKT-2510 diagram
Current-, voltage-, and power curve with sinusoidal indices

further information about the  Power Analyzer  PKT-2510

return to homepage.
