PCE-PA 8000 three-phase power analyzer
three-phase power analyzer (real time) with registration in the SD card, interface

The PCE-PA 8000 power analyzer is able to measure and record the power in both single-phase or three-phase circuits. With the PCE-PA 8000 power analyzer you will be able to perform prolonged measurements. Measurement values are saved in xls format in the SD card of our power analyzer in order to be easily analyzed on the computer. The measurement rate can be set from 2 to 7200 seconds. The PCE-PA 8000 power analyzer can also measure power and determine both the power factor and the phase angle. The clamps of the PCE-PA 8000 power analyzer can be used for cables with a diameter of  50 mm. The PCE-PA 8000 is the ideal tool to be used in power supply networks. Its 3.7" display allows the user to read all measured values for a quick analysis and also provides a view of the current, voltage and power. Here you will find an overview of the power analyzers that best suit your needs.

PCE-PA 8000 three-phase power analyser with registration in the SD card, interface
View / print user’s manual of the PCE-PA 8000 three-phase power analyzer
View / print user’s manual of the PCE-PA 8000 three-phase power analyzer.

 - Analysis of a network of 3 phases/ 4 conduc-
   tors 3 phases / 3 conductors, 1 phase /
   2 conductors, 1 phase / 3 conductors
 - Measures effective real value of current and
  voltage                                                             - Measures active, apparent and reactive power
 - Power Factor (PF), phase angle (
Φ)
 - Measures voltage up to 600V

 - Measures current up to 1200 A
 - It meets the IEC 1010 and CAT III 600V
   standards
 - Integrated timer and calendar to record data

 - Measured values are recorded in the SD card
 - Data is stored in Excel format for further
   valoration
 - Data can be transferred to a PC through data
   cable
 - Large 3.7" LCD display

Technical specifications

Voltage (AC V)

Measurement range

Resolution

Accuracy

10 V ... 600 V (phase to neutral)

0.1 V

±(0.5 % + 0.5 V)

10 V ... 600 V (phase o neutral)

Current (AC A)

Measurement range

Resolution

Accuracy

20 A

0.001 A (<10 A)
0.01 A (≥10 A)

±(0.5 % + 0.1 V)

200 A

0.01 A (<100 A)
0.1 A (≥100 A)

±(0.5 % + 0.5 A)

1200 A

0.1 A (<1000 A)
1 A (≥1000 A)

±(0.5 A + 5 A)

Active power

Measurement range

Resolution

Accuracy

0 KW ... 9.999 KW

0.001 KW

±(1 % + 0.008 KW)

10 KW ... 99.99 KW

0.01 KW

±(1 % + 0.008 KW)

100 KW ... 999.9 KW

0.1 KW

±(1 % + 0.8 KW)

1 MW ... 9.999 MW

0.001 MW

±(1 % + 0.008 MW)

Apparent power

Measurement range

Resolution

Accuracy

0 KVA ... 9.999 KVA

0.001 KVA

±(1 % + 0.008 KVA)

10 KVA ... 99.99 KVA

0.01 KVA

±(1 % + 0.08 KVA)

100 KVA ... 999.9 KVA

0.1 KVA

±(1 % + 0.8 KVA)

1 MVA ... 9.999 MVA

0.001 MVA

±(1 % + 0.008 MVA)

Reactive power

Measurement range

Resolution

Accuracy

0 KVAR ... 9.999 KVAR

0.001 KVAR

±(1 % + 0.008 KVAR)

10 KVAR ... 99.99 KVAR

0.01 KVAR

±(1 % + 0.08 KVAR)

100 KVAR ... 999.9 KVAR

0.1 KVAR

±(1 % + 0.8 KVAR)

1 MVAR ... 9.999 MVAR

0.001 MVAR

±(1 % + 0.008 MVAR)

Active energy

Measurement range

Resolution

Accuracy

0 KWh ... 9.999 KWh

0.001 KWh

±(1 % + 0.008 KWh)

10 KWh ... 99.99 KWh

0.01 KWh

±(1 % + 0.08 KWh)

100 KWh ... 999.9 KWh

0.1 KWh

±(1 % + 0.8 KWh)

1 MWh... 9.999 MWh

0.001 MWh

±(1 % + 0.008 MWh)

Apparent energy

Measurement range

Resolution

Accuracy

0 KVAh ... 9.999 KVAh

0.001 KVAh

±(2 % + 0.008 KVAh)

10 KVAh ... 99.99 KVAh

0.01 KVAh

±(2 % + 0.08 KVAh)

100 KVAh ... 999.9 KVAh

0.1 KVAh

±(2 % + 0.8 KVAh)

1 MVAh... 9.999 MVAh

0.001 MVAh

±(2 % + 0.008 MVAh)

Reactive energy

Measurement range

Resolution

Accuracy

0 KVARh ... 9.999 KVARh

0.001 KVARh

±(2 % + 0.008 KVARh)

10 KVARh ... 99.99 KVARh

0.01 KVARh

±(2 % + 0.08 KVARh)

100 KVARh ... 999.9 KVARh

0.1 KVARh

±(2 % + 0.8 KVARh)

1 MVARh... 9.999 MVARh

0.001 MVARh

±(2 % + 0.008 MVARh)

Power factor

Measurement range

Resolution

Accuracy

0 ... 1

0.01

±0.04

Phase angle

Measurement range

Resolution

Accuracy

-180º ... 180º

0.1º

±1º

Frequency

Measurement range

Resolution

Accuracy

45 Hz ... 65 Hz

0.1 Hz

0.1 Hz

General technical specifications

Display

3.7 " LCD (320 x 240 pixels) with LED backlight

Electrical properties

AC V, AC A, active power, apparent power, power factor, phase angle, mains frequency

Voltage ranges

10 V ... 600 V AC, automatic range selection

Security / Standards

IEC1010CAT III 600V

AC V input resistance

10

Operation frequency of current clamps

40 Hz ... 1 kHz

Tested operation frequency of current clamps

45 Hz ... 65 Hz

Overload protection

AC V

720 V rms

AC A

1300 A with current clips

Memory

SD card

Measurement rate

1 second

Data logger

 SD

Measurement rate

2 seconds... 7200 seconds

Data output

USB or RS-232, depending
on the connection cable

Operating temperature

0 ºC ... 50 ºC

Operating humidity

<80 % H.r.

Power

8 x 1.5 V AA batteries / mains component

Input current

Meter: 300 mA DC
Clamp: 34 mA DC

Max. diameter

50 mm

Weight

Meter: 948 g (with batteries)
Clip: 467 g (with cable)

Dimensions

Meter: 225 x 125 x 64 mm

Clamp: 210 x 64 x 33 mm

jaw: 86 mm (exterior)

Software

The PCE-PA 8000 three-phase power analyzer.
Thanks to the SD card, it is possible to read measured values.


Delivery contents

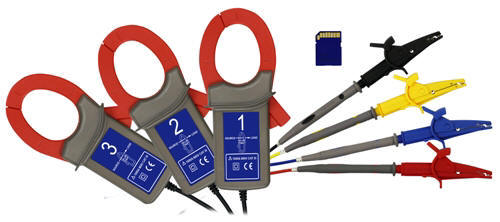

1 x PCE-PA 8000 power analyzer, 3 x current clamps, 4 x test cables, 4 x alligator clips, 1 x 2 GB SD card, 1 x 9 V DC mains component, 8 x batteries 1.5 V AA, 1 x carrying case

Here you can see the optional accessories of the PCE-PA 8000 three-phase power analyzer.
Here you can see the optional accessories of the PCE-PA 8000 power analyzer.

Optional accessories

- For those companies that wish to include the PCE-PA 8000 power analyzer in their set of internal quality tool or for annual recalibration. The ISO laboratory calibration includes a certificate to meet with internal ISO quality control. The customer details also appear in the calibration documentation.

PCE-PA 8000 three-phase power analyzer.

- USB-RS232 Adapter

Safety information for the use of a power analyser:
- Do not use the power analyser, the clamps or the cables when there is evidence that they have
  been damaged.
PCE-PA 8000 three-phase power analyzer.
- Take care when taking measurements of any type of conductors.
sunlight, in extreme humidity or exposed
  to water.
- Avoid subjecting the device to extreme shocks and always handle it with care.
- Before turning on the device, allow it to acclimatise to the environment it will be used in. This is
  particularly important when the device is taken from cold environments to hot ones, and vice
  versa.
- This device should only be repaired by qualified technicians of the PCE-Group.
- Don't place the device with its display face down on a work surface to avoid damaging the keypad.
- Use the power analyser inside buildings.  If it must be used outside, do this only in dry
  conditions.
- Don't expose the device to direct sunlight, high temperatures, high humidity or condensation when
  it is in use.
- This device is not protected against exposure to dust or exposure to water.
- Don't expose this device in corrosives areas or to explosive gases.
- Never use the power analyser with wet hands.
- Always wear a safety suit when handling the power analyser.
- Before connecting the test cables or
clamps, always disconnect the device first.
- To avoid damage or a short circuit, leave the object being measured without a current before
  connecting the power analyser or the
clamps.
- The inputs are not separated from each other.
- Remove all lines being measured that are no being used by the installation.
- First connect the test cable the the power analyser and then to the object being measured.
- Put down the test cables with care when not being used.
