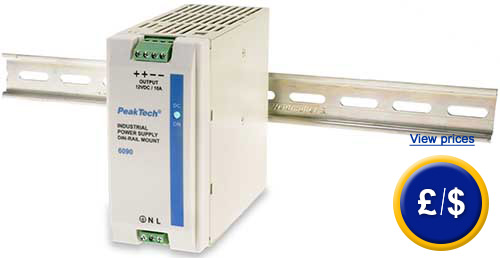

Power supply for DIN rail mount- PKT 6090 power supply for DIN rails mount / 12 V DC / 10 A max. output / screw terminal / 120 W output power / EMC compliance
The PKT-6090 power supply for DIN rail mount can be installed on any rail mount with its compact dimensions. The power supply for DIN rail mount is designed as a switch and it has an output of 120 W. The level of performance of the power supply for DIN rail mount is 82%. You can connect up to 5 computers to the power supply for DIN rail mount. The connection is done by screw terminals. The output voltage of the power supply for DIN rails is in the range of 10.5 ... 14 VDC, making it suitable for many regulators. The nominal current of the power supply is 10 A. The housing is galvanized steel and aluminum. The front of the power supply for DIN rail mounts is made of plastic, therefore it offers protection against contact. The power supply for DIN rails is manufactured according to EN 60950 and it has got a degree of protection according to IEC 5360. The power supply is placed on the rail easily and it is suitable for all DIN rail mounts of 35 mm. Here is an overview of other sources of power supply of our product range.
PKT-1535 laboratory power supply
- Installation on DIN rail mount - High efficiency - 120 W - Compact	- Connection for 5 devices - EMC estandards compliance - Ideal for networks of 110 V and 230 V - Power output of 12 V / 10 A DC
Technical specifications
Input
AC full load	2.8 A / 100 V AC or 1.2 A / 230 V AC
AC circuit voltage	0.1 A / 100 V AC or 0.14 A / 230 V AC
Leakage current	2 mA
Power factor	> 70 %
Eficiency level	82 % a 100 V AC or 83 % a 230 V AC
Output
Rated voltage	12 V DC
Voltage setting	10.5 V ... 14 V
Rated current	10 A DC
Residual stress (USS)	≤ 50 mV
Parallel operation	. 5 devices max.
General specifications
Protection / overcurrent	10.8 A ... 11.4 A / automatic reset
Surge	16.5 V ... 18.5 V DC
Operating temperature	-10 ... +60 °C
Air humidity	20 ... 90 % R.H.
Power supply	90 ... 360 V AC / 47 Hz ... 63 Hz
Dimensions	54 x 127 x 330 mm
Weight	890 g
Delivery Contents 1 x PKT-6090 power supply for DIN rail mount, 1 x user´s manual
