Pressure Gauge series PCE-SCJN
|
|||||
|
The Pressure Gauge allows the visualisation of pressure of system of pipes. The Pressure Gauge is characterized by its simple handling. With a screen of 4 digits the measurement values are visualised with high accuracy. Thanks to the integrated battery, the Pressure Gauge does not depend only on a fixed power supply. The bar chart shows on display the pressure tendency. The backlight guarantees optimal reading and manageability even with little illumination. The pressure peaks are registered thanks to the sampling speed of 10 ms. Due to its good price-perfomance ratio, this equipment offers all the advantages of a measurement of digital pressure. If you have any question regarding the Pressure Gauge, please see the technical specifications bellow or contact us. Our engineers and technicians will be pleased to help you with the pressure manometers and with the other Regulations and Control products. Here you will find a general overview of the meters or the Measuring instruments, and scales of PCE Instruments. | |||||
|
|
|||||
|
|
|||||
|
- Digital pressure
measurement - "bar chart" visualization - Pressure peaks measurement with a sampling speed of 10 ms - Rugged - Peak-Hold function |
- ± 0,5 % FS
accuracy (complete scale) |
||||
|
Technical specifications |
|||||
| PCE- models | SCJN 16 | SCJN 100 | SCJN 400 | SCJN 600 | SCJN 1000 |
| Measurement range | -1 ... 16 bar | 0 ... 100 bar | 0 ... 400 bar | 0 ... 600 bar | 0 ... 1000 bar |
| Pressure of overcharge | 40 bar | 200 bar | 800 bar | 1200 bar | 1500 bar |
| Broken pressure | 50 bar | 800 bar | 1700 bar | 2200 bar | 2500 bar |
|
PCE |
|||||
| PCE- models | bar | PSI | mbar | kPa | MPa |
| SCJN 16 | -1.00 ...16.00 | -14.5 ... 200.0 | -999 ... 16000 | -100 ... 1600 |
- |
| SCJN 100 | 0 ... 100.0 | 0 ... 1500 | - | 0 ... 10000 | 0 ... 10.00 |
| SCJN 400 | 0 ... 400.0 | 0 ... 5800 | - | 0...4000 (x 10) | 0 ... 40.00 |
| SCJN 600 | 0 ... 600.0 | 0 ... 8700 | - | 0...6000 (x 10) | 0 ... 60.00 |
| SCJN 1000 | 0 ... 1000 | 0 ... 15000 | - |
- |
0 ... 100.0 |
|
Input |
|||||
| Sensor of pressure with ceramic cell | -1 ... 16 bar | ||||
| Sensor of pressure with cell DMS | 0 ... 100/ 400/ 600/ 1000 bar | ||||
| Sampling speed | 10 ms | ||||
| Accuracy | ± 0.25 % FS typical ± 0.5 % FS max. | ||||
| A/D transducer | 12 bit | ||||
| Accuracy | 4096 divisions | ||||
|
Display |
|||||
| LCD | 4 1/2 digits | ||||
| Dimensions | 50 x 34 mm | ||||
| Digits size | 15 mm | ||||
| Units | mbar / bar / psi / MPa / kPa | ||||
| Display |
bar charts - Peak-Hold
function- backlight |
||||
|
Functions |
|||||
| Introduction | MIN/MAX - FS battery state indicator Automatic switch off - Off/On ZERO function RESET (erase min./max) |
||||
| Housing |
D = 79 mm; T = 33 mm zinc fused with TPE protective rubber cover |
||||
| Weight | 540 g | ||||
| Pressure connection | 1/4 BSPP (ISO 228-1) stainless steel 1.4404 | ||||
| Joint | NBR | ||||
| Mediums that make contact | stainless steel 1.4404, NBR, ceramic | ||||
| Power supply |
2 x 1.5 V AA batteries Maximum battery life 1.500 horas |
||||
| Environment temperature | -10 ... +50 ° | ||||
| Storage temperature | -20 ... +60 °C | ||||
| Temperatura de fluidos | 0 ... 80 °C | ||||
| Relative humidity | < 85 % | ||||
| Protection type | EN 60529 IP 67 | ||||
| Vibration | IEC 60068-2-6/10?500 Hz; 5 g | ||||
| Impact charge | IEC 600068-2-29/25 g; 11 ms | ||||
| Loading cycle | 100 | ||||
|

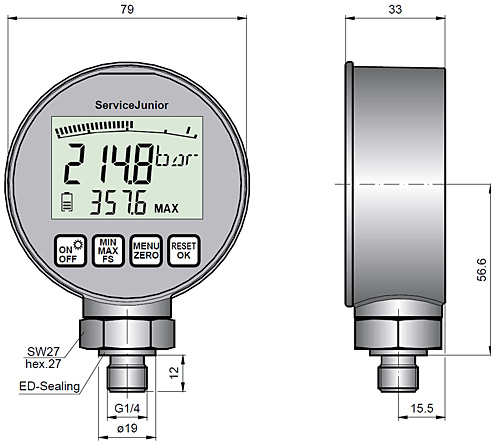

Dimensions of the Pressure Gauge: |
|||||
|
|
|||||
|
Delivery content |
|||||
|
1 x PCE-SCJN Pressure Gauge , 2 x
1.5 V
batteries, 1 x SCA-1/4-EMA-3 adapter 1 x user manual |
|||||
| Optional accessories | |||||
|
- ISO
certificate and calibration |
|
 |
 |
||
