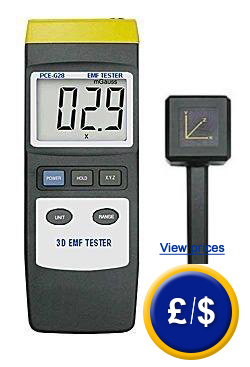

PCE-G28 radiation detector
with triaxle sensor for magnetic fields

The PCE-G28 radiation detector for magnetic fields comes with a triaxle sensor to determine electro-magnetic radiation. The radiation detector has been specially designed to measure transformers and for evaluating magnetic fields generated by computer monitors, industrial electrical installations and electro-motors. The radiation detector meets such European standards as: the European Union Electromagnetic Compatibility Directive IEC 801-1 (EN 50081-1), such as for laboratory prescriptions and measuring instruments IEC 204 (EN 60204). By way of a triaxle sensor, it can save conversions for each axis. This small gaussmeter for electrical fields has some characteristics which are useful in an industrial setting.  It is easy to use and very accurate.

  • Triaxle sensor for electric fields

  • Hold function

  • µT or mGs units of measurement

  • Large LCD

  • Wide frequency range up to 300Hz

  • Easy to use

  • Battery powered

  • For analysis within the work environment

  • Meets these European standards: IEC801-1 (EN 50081-1) / IEC204 (EN 60204)

Here you will find an overview of all the radiation detectors we have available to meet your needs.


the PCE-G28 radiation meter
PCE-G28 radiation detector

View or print the user's manual
PCE-G28 radiation detector: user's manual

Information about electro magnetic fields

Electro magnetic fileds are produced when electrical equipment or devices are used. They can have a huge influence on the human body depending on their frequency. The consequences can be a simple discomfort, a nervous excitement or more seriously, internal burns. As such, it is necessary to determine the risk to workers exposed to electromagnetic fields and to apply health and safetly standards for industries.
Basically there are two areas of exposure, called exposure 1 and 2:

The first area of exposure includes all controlled areas, such as industrial electrical workshops and areas controlled by a company. It also includes areas of general access where there is a brief exposure due to the way the installation is setup.  This brief exposure equates to a work shift. The safety charge can determine the electro.magnetic radiation in Gauss or in Tesla and classified with the help of the device. With an technical frequency of energy of "f" = 50Hz in the first area of exposure the limit is considered to be 1.36µT, and in area 2 the value is 0.42µT. YOu will find more information on this sunject here.

       PCE-G28 radiation detector: fuse box        PCE-G28 radiation detector: magnetic divider        PCE-G28 radiation detector: transformer
                Fuse box                    Magnetic divider                 Transformer

Technical specifications
Measurement ranges micro Tesla: 0 to 20 µT / 0 to 200 µT / 0 to 2000 µT
mili Gauss: 0 to 200 mGs / 0 to 2000 mGs / 0 to 20,000 mGs
Resolution 0,01 / 0,1 / 1 µT (dependiendo del rango)
0,1 mGs / 1 mGs / 10 mGs
Accuracy ± 4 % + 3 d (en rango 20 µT y 200 mG)
± 5 % + 3 d (en rango 200
µT y 2000 mGs)
± 10 % + 5 d (en rango 2000
µT y 20000 mGs)

Las precisiones dadas se refieren a: 50 - 60 Hz y < 3 V/m (RF).
Frequency 30 ... 300 Hz
Display pantalla LCD
Power 1 batería de 9 V
Dimensions medidor de campos magn.: 195 x 68 x 30 mm
sonda: 225 x 75 x 55 mm
Weight 470g (con batería incluida)
Ejemplos de utilización en uso del medidor de radiación

      PCE-G28 radiation detector: measuring the electrical field of a computer        PCE-G28 radiation detector: measuring electic magnetic field of power lines
       Using the radiation detector on a            Measuring radiation emitted by
                 computer monitor.                  electro magnetic fields of power lines.

Contents
PCE-G28 radiation detector, triaxle sensor with 1m cable, battery, carrying case and user's manual

Optional accessories
- ISO calibration certificate for companies that desre to incorporate the device into their testing equipment or for an annual recalibration.
  The ISO certification includes a laboratory calibration with a control document containing all the calibration data.
  Note:  The factory ISO calibration included with the order can only be used with the corresponding sensors.

PCE-G28 radiation detector: ISO calibration certificate
