PCE-UV34
UVA/UVB radiation meter
para medir la
radiación UV, con sensor externo |
|
The PCE-UV34 radiation meter is a device used for measuring UVA
and UVB radiation. This accurate device operates on a wave
length of 290 to 390nm. With this radiation meter you can
measure UVA radiation from the sun or in tanning salons so as to
protect yourself from damage to high exposure and possible
sunburn. Within the industrial sector we frequently find
elevated UVA radiation level, such as the arc light used in
soldering. The UV radiation meter is very versitile thanks to
its external sensor. Other fields of use are the sterilasation
of UVA rays, photo chemical compensation, in virology
laboratories or in DNA research. |
-
Two measurement ranges:
0.000 to 1.999 mW/cm2
1.999 to 19.99 mW/cm2
-
External
sensor with UV correcting filter
-
Auto
after 10 minutes of inactivity to conserve battery power
-
Large LCD
-
Minimum, Maximum
and Data Hold functions
-
compact
design
-
comes with a carryng case
-
optional ISO calibration
|
PCE-UV34 radiation meter
View or print the user's manual
|
|

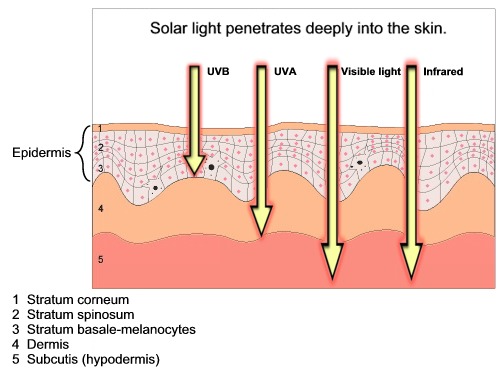

UV radiation on skin |
|
 |
|
Technical specifications |
|
Ranges |
0.000 to 1.999 mW/cm²
1.999 to 19.99 mW/cm² |
|
Resolution |
0.001 mW/cm² |
|
Accuracy |
±4% +
2 positions |
|
Response time |
0.4 s |
|
Wave length |
wide band of 290 to 390nm |
|
Zero reset |
by pressing a key |
|
Light sensor |
photodiode with UV
correcting filter |
|
Memory |
minimum,
maximum and hold
values |
|
Auto shut-off |
automatic after 10 minutes
of inactivity |
|
Display |
22mm LCD |
|
Over range indicator |
"- - - -" |
|
Operating conditions |
0 to 50°C / max. 80% r.h. |
|
Power |
9V battery |
|
Dimensions |
device: 68
x 200 x 30mm
light
sensor: 68 x 60 x 27mm |
|
Weight |
220g (with battery) |
|
Contents
PCE-UV34
radiation meter, combined UV sensor, carrying case and user's
manual Note: battery not included! |
Optional accessories
- ISO laboratory calibration with certificate |
 |
 |
|
