PCE-UV36 UVC
radiation meter
for measuring
UVC radiation with external sensor |
|
The PCE-UV36 radiation meter is used for measuring UVC radiation
in the UV spectrum of 254 nm. Frequently, UVC radiation is used
in wave lengths of 200 up to 300nm for disinfecting and
sterilising. This is absorbed by DNA and destroys its structure
and inactivates the living cells. Micro organisms, such as
viruses and bacteria, and destroyed by UVC radiation in a matter
of seconds. For this special source of light, low and medum
pressure lights are required that emit radiation at a wave
length of 254nm. The following
link shows an overview of other types of radiation meters. |
- Wide measurement range
- External sensor with UV
correcting filter
- Auto shut-off after 10 minutes
of inactivity
- Large LCD
- Minimum and maximum memory
function
- RS-232 interface
- Carrying case included
- optional ISO calibration with
certificate
|
PCE-UV36 radiation meter
View or print the user's manual
|
|
Technical specifications |
|
Ranges |
0.1 to 199.9 µW/cm²
0.001 to 1.999 mW/cm²
0.01 to 19.99 mW/cm² |
|
Resolution |
0.1 µW/cm²
0.001 mW/cm²
0.01 mW/cm² |
|
Accuracy |
±2% + 2 digits |
|
Response time |
0.4 s |
|
Wave length |
254nm |
|
Zero reset |
by pressing a key |
|
Light sensor |
photodiode with UV correcting filter |
|
Memory |
minimum and maximum values |
|
Auto shut-off |
automatic after 10 minutes of
inactivity |
|
Display |
4.5 digit LCD (13mm) |
|
Over range indicator |
"- - - -" is displayed |
|
Operating conditions |
0 to 50°C / max. 80% r.h. |
|
Power |
9V battery |
|
Dimensions |
device: 180 x 72 x 32 mm
light
sensor: Ø 38 x 25mm |
|
Weight |
335g |
|

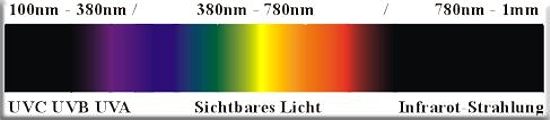

Composition of solar radiation |
|
- UVA radiation (315nm - 380nm)
- UVB radiation (280nm - 315nm)
- UVC radiation (100nm - 280nm)
- visible light (wave langth of 380nm - 780nm) and
- the part visible to the human eye, infrared heat radiation
(wave length of 780nm - 1nm) and ultraviolet radiation (100nm
- 380nm).
The shorter the wave length of
ultraviolet radiation the more energy it contains and it results in
being more dangerous for both skin and eyes. The UVA radiation
causes skin to tan but too much UVA and UVB radiation can result in
damage to skin and eyes. |
|
Contents
PCE-UV36
radiation meter, UVC sensor, battery, carrying case and user's
manual |
Optional accessories
- ISO laboratory calibration with certificate
included
- Software with data cable
- USB to RS-232 adaptor |
 |
 |
|
