RCD Tester C.A 6030
RCD tester (standard, selectively, type A and type AC) / voltage- and frequency measurement / measurement of loop impedance / measurement of grounding resistance with voltage / current measurement / rotating field recognition

The extremely easy to handle and innovative RCD tester C.A 6030 combines optimal controlling comfort with outstanding gauging performance during conformity testing of facilities. With the RCD tester automatic voltage- and frequency measurements can be performed on facilities. Furthermore the determination of grounding resistance and loop impedance at voltage can be performed with only one sensor via the RCD tester C.A 6030. Even testing rotating fields (2 or 3 conductors) is an easy task with the RCD tester. But the main purpose of the RCD tester is to check residual-current circuit breakers (standard, selective, type A and AC) and the current or the fault current with split core type current transformers. Due to a measuring line with a power plug, a direct and error-free connection is guaranteed. The helpful alarm and storage functions with time data (100 measurements) support the user of the RCD tester and provide a comfortable handling. The collected data of the RCD tester can be transferred per optic communication straight to a serial printer or a computer. If there are any questions about this RCD tester C.A 6030, please have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you in all multimeters and all products in the field of measuring instruments, regulation and control and scales

 RCD Tester  C.A 6030  User manual for the  RCD Tester  C.A 6030  EC certificate for the  RCD Tester  C.A 6030  Video for the  RCD Tester  C.A 6030   RCD Tester  C.A 6030 20 further Images  Technical specifications of the  RCD Tester  C.A 6030

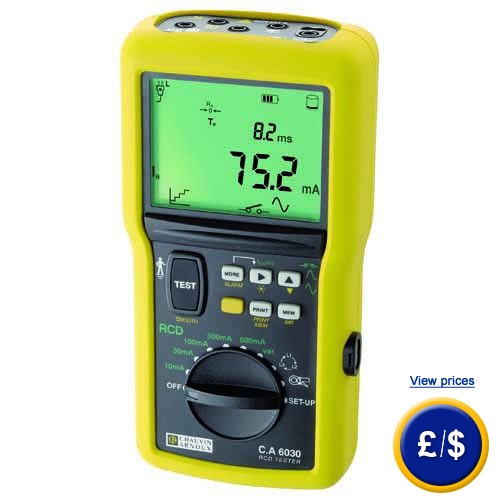

RCD tester C.A 6030

- Testing with eligible current and time
- Measurement of loop impedance
- Current gauging with optional purchasable split core type current transformers up to 200 A

- Voltage- and frequency measurement of 2 ... 550 V (DC or RMS), of 15.3 ... 450 Hz
- Measurement of grounding resistance
- Checks rotating field at voltage between 90 V and 550 V

Technical Specifications

Inspection with RCD tester

Ι Δn = 10 – 30 – 100 – 300 - 500 mA - adjustable: 6 ... 650 mA
- Checking for non-tripping: at 1/2
Ι Δn
- Measurement of tripping time: at
Ι Δn, 2 Ι Δn, 5 Ι Δn, 150 mA, 250 mA
- Current measurement / measurement of tripping time: inside slope 0.5 ... 1.06
Ι Δn, in steps of  3%
- Fault voltage: 5.0 ... 50.0 V by calculating
Ι Δn x RE
- Short circuit current by calculating IK =
  UREF / ZL-PE, display up to 40 kA

Loop impedance measurement / grounding resistance measurement at voltage

Testing residual-current device with and without tripping with 1 sensor: from 0.1 ... 4000 Ω
- Calculation of error voltage and short circuit current

Current measurement

By connection of split core type current transformers 20 A (MN20 & C172) or 200 A (C176)

Determination of rotating filed direction

at facilities with a frequency of 15.3 ... 64 Hz and a voltage of 90 ... 550 V according to common (3 conductors) or the sequential method (2 conductors)

General data

Display

Large lightened LC display with 2 indices 4000 digits and multiple symbols

Power Supply

6 batteries 1.5 V or chargeable batteries

Standards

EN 61010-1, EN 61557, VDE 0413

Electromagnetic compatibility

EN 61326

Installation category

CAT III / 600V

Protection type

IP 54

Dimensions (H x W x D)

211 x 108 x 60 mm

Weight

900 g

Delivery content
1 x RCD tester C.A 6030
1 x transportation case for hand-free operation
1 x connection line with Shuko plug
1 x connection line with 3 single conductors
3 x probe tips
3 x crocodile clamps
1 x software for data transfer
1 x RS232 cable

Optional equipment

Item

Description

CA-P01101999

RCD tester carrying bag

Additional equipment for RCD tester 1 ground electrode (30 m)
Content:
1 x reel 30 m measure-line green (E)
1 x ground spike
1 x transportation bag standard

CA-P01120310
RCD tester split core type current trandformer 1

C172 split core type current transformer
up to 20 A

CA-P01120330
RCD tester split core type current trandformer 2

C176 split core type current transformer
up to 200 A

CA-P01120440
RCD tester split core type current trandformer 3

MN20 split core type current transformer
up to 20 A

further information about the  RCD Tester  C.A 6030
