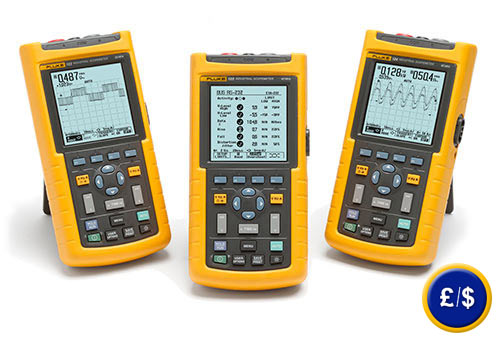

ScopeMeter ® FLUKE 120 Series
FLUKE ScopeMeter ® in three different formats / up to 40 MHz bandwidth / 2.5 GS/sec bandwidth / TRMS multimeter function / 2 channels / large display / ScopeMeter ® FLUKE 125 with power analysis / data interface / 26 measurement functions

The compact ScopeMeters of the FLUKE 120 series are robust devices for error diagnostics in industrial facilities. The ScopeMeter FLUKE 120 series are really fascinating devices that combine oscilloscope, multimeter and a "paperless" writer, all in one user-friendly instrument. The ScopeMeter is designed for measurements on machines, instruments, control circuits and power systems. The bandwidth of the ScopeMeter can amount up to 40 MHz. Besides the oscilloscope modus, the ScopeMeter is also equipped with a TRMS multimeter function. The robust design of the ScopeMeter assures that the oscilloscope even withstands rough industrial environments. Oscilloscope users know, how hard a triggering can be. False settings provoke instable and sometimes even false results. The unique Connect-and-View function of the ScopeMeter FLUKE 120 recognizes signal patterns and automatically sets the correct triggering parameters. This provides a reliable, stable and repeatable display irrespective of the type of signal that is being measured. Even at motor-drives and control signals, without pressing a single button on the device. The ScopeMeter from the FLUKE 120 series is equipped with an integrated data logger. With that paper-free recorder maximum, minimum and average values can be recorded for 16 days by means of the ScopeMeter (FLUKE 120). All ScopeMeters are equipped with a FLUKE TrendPlot™ function. The ScopeMeter FLUKE 124 and FLUKE 125 is equipped with a cursor measuring function. Besides that function the ScopeMeter is set up with more than 26 measurement functions. The bus stability mode of the ScopeMeter supplies a distinct "good/bad" indication for electrical signals. Especially for industrial construction systems and networks like CANBus, RS-232 and many others the ScopeMeter facilitates as an indispensable tool. The ScopeMeter FLUKE 125 checks the quality of electrical signals as soon as it is transferred through the construction systems. Apart from the measurement of construction systems the Scope Meter FLUKE 125 is able to perform power-analysis and harmonic analysis on single-phase and symmetric three-phase systems. The ScopeMeter is equipped with a certificated safety level according to CAT III up to 600 V following EN 61010-1. The ScopeMeter FLUKE 120 series also comes with an extensive additional equipment. The NiMH battery of the ScopeMeter allows safe operation for up to 7 hours. Due to an optical interface and an additionally available equipment the measured data can be transferred to a computer. If there are any questions about this ScopeMeter ® of the FLUKE 120 series, please have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you in all multimeters and all products in the field of measuring instruments, regulation and control and scales

 Scopemeter  FLUKE 120  User manual for the  Scopemeter  FLUKE 120  EC certificate for the  Scopemeter  FLUKE 120  Video for the  Scopemeter  FLUKE 120   Scopemeter  FLUKE 120 20 further Images  Technical specifications of the  Scopemeter  FLUKE 120

ScopeMeter FLUKE-120

- Up to 40 MHz bandwidth
- 2.5 GS/sec sampling rate
- Large display
- 2 inputs

- 26 integrated measurement functions
- Multimeter-functions TRMS
- Power measurement (ScopeMeter ® FLUKE 125)
-Optical insulated data interface

Technical Specifications

ScopeMeter ®

FLUKE 123

FLUKE 124

FLUKE 125

Bandwidth

20 MHz

40 MHz

40 MHz

Measurement functions 2-channels- TRMS- multimeter

Vdc, Vac, Vac + Vdc, resistance, channel, diodes test, electricity, temperature, capacity, dbV, dbM, crest factor, touch hold, zeroset

Vdc, Vac, Vac + Vdc, resistance, channel, diodes test, electricity, temperature, capacity, dbV, dbM, crest factor, touch hold, zeroset

Vdc, Vac, Vac + Vdc, resistance, channel, diodes test, electricity, temperature, capacity, dbV, dbM, crest factor, touch hold, zeroset

TrendPlot recording

Automatic scaling, Display max, min, avrg and current value

Automatic scaling, Display max, min, avrg and current value

Automatic scaling, Display max, min, avrg and current value

Cursor

-

ΔT, 1/ΔT, V, ΔV, rise- / decay time

ΔT, 1/ΔT, V, ΔV, rise- / decay time

Real-time sampling rate

25 MS/s

25 MS/s

25 MS/s

Equivalence- sampling rate

up to 1.25 GS/sec

up to 2.5 GS/sec

up to 2.5 GS/sec.

Inputs / AD converter

2

2

2

Time base

20 ns/div ... 1 min/div

20 ns/div ... 1 min/div

10 ns/div ... 1 min/div

Input sensitivity

5 mV/div ... 500 V/div

5 mV/div ... 500 V/div

5 mV/div ... 500 V/div

Trigger tapes

Connect-and-ViewTM, free-wheel and single-deflection, flank, video, external

Connect-and-ViewTM, free-wheel and single-deflection, flank, video, external

Connect-and-ViewTM, free-wheel and single-deflection, flank, video, external

Glitch effect

40 ns

40 ns

40 ns

Measurement functions

26 automatically

26 automatically

26 automatically, W, VA, VAR and PF for 1-phase and symmetrical 3-phase circuits

Harmonic mode

-

-

33th order up to 6o Hz, 24th order up to 400 Hz

Max. recording length

512 MIN/MAX points per input

512 MIN/MAX points per input

512 MIN/MAX points per input

Storage for display and setups

10

20

20

Instruction Manual







FLUKE ScopeMeter  series

FLUKE 123FLUKE 123

FLUKE 124ScopeMeter FLUKE 124

FLUKE 125ScopeMeter FLUKE 125

General Technical Specifications

Operation temperature

0 ... 50 °C

Storage temperature

-20 ... 60 °C

Height above MSL during operation

3000 m

Safety

600 V CAT III (EN 61010-1)

Dimensions

232 x 115 x 50 mm

Weight

1.2 kg

Guarantee

3 years (device)
1 year (equipment)

Battery life time

7 hrs

Battery

NiMH

Interface

optical insulated RS-232 interface

Delivery content

1 x ScopeMeter ® FLUKE 12x, 2 x shielded conductors STL120-III (red and grey), suspension catches for conductors, 1 x shielded BNC adapter BB 120, 1 x NiMH battery set, 1 x voltage probe, VPS40-III (only FLUKE 124 and FLUKE 125), SafeGuard conductor TL175, 1 x clamp-on ammeter i400s (only ScopeMeter® FLUKE 125)

Models of ScopeMeter ® FLUKE 120 Series in stock

FLUKE 123

ScopeMeter ® FLUKE 123

FLUKE 123/S

ScopeMeter ® FLUKE 123 with additional equipment set SCC 120

FLUKE 124

ScopeMeter ® FLUKE 124

FLUKE 124/S

ScopeMeter ® FLUKE 124 with additional equipment set SCC120

FLUKE 125

ScopeMeter ® FLUKE 125

FLUKE 125/S

ScopeMeter ® FLUKE 125 with additional equipment set SCC120

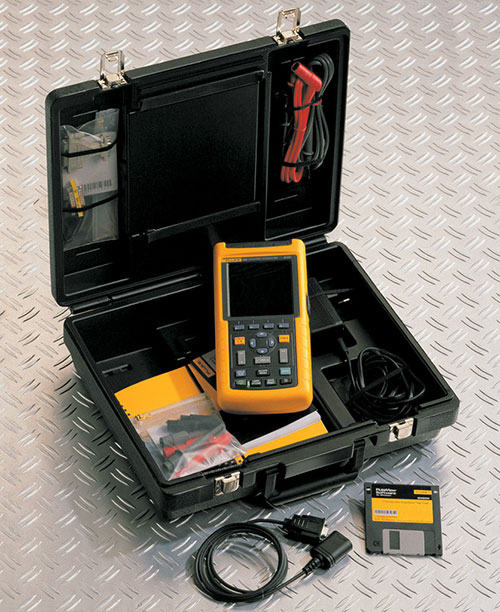

ScopeMeter® FLUKE 123 with equipment kit SCC120
ScopeMeter® FLUKE 123 with equipment kit SCC120

Additional Equipment

SCC120 ScopeMeter ® equipment

Software, OC4USB optical USB interface cable, carry-case

OC4USB

optical USB interface cable

PM9080

RS232- interface cable

DP120

Differential voltage probe

ITP120

Insulated trigger button

SW90W

Software FlukeView

BHT190

Adapter set for bus connections, adapter set DB-9: plug into socket, access to clamps 1 to 9 and shielding, adapter M12 with cable: plug on socket, access to clamps 1 to 5, adapter RJ-45: socket on socket with connection cable, access to clamps 1 to 8 and shielding

ScopeMeter FLUKE 12x : Bus adapter BHT190
Bus adapter BHT190

ScopeMeter FLUKE 12x : Equipment set SCC 120
Equipment set SCC 120

ScopeMeter FLUKE 12x: USB cable OS4USB
USB cable OS4USB

ScopeMeter FLUKE 12x : Control head DP 120
Control head DP 120

Optional equipment

further information about the  Scopemeter  FLUKE 120
