Solar Panel Tester EVOMEX SMT 200
Determination of short circuit current and off-load voltage / USB interface /
internal real-time clock / internal storage / graphic display / battery operation

The solar panel tester EVOMEX SMT 200 is a useful device to check solar panels on their characteristics. In Scan Mode the solar panel tester EVOMEX SMT 200 scans the complete strain range (engine idle to short circuit) and the electronical indices current and voltage are logged in additionally. Afterwards not only the off-load voltage and short-circuit current but also a current/voltage- characteristic line are shown at the large graphic display of the solar panel tester EVOMEX SMT 200. Furthermore this device calculates, if the surface of the solar panel and the power of the incident light in W/m² is fed in, the efficiency of the panel can be calculated. On the internal storage there can be stored diagrams with all measured values. The read-out and evaluation of the storage is performed via the software by means of the optical isolated USB interface included in delivery. An export of the data to excel is also available. Due to the compact design and the possible battery operation, this device is ideal for mobile application. The batteries can be recharged directly in the solar panel tester EVOMEX SMT 200 via an adapter that is included in delivery. If there are any questions about this solar panel tester EVOMEX SMT 200, please have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you in all solar panel testers and all products in the field of measuring instruments, regulation and control and scales.

- Generates I/U diagram and I/P diagram of solar sells
- Determines the maximum power of module
- Efficiency calculation of solar cells
- Graphic display with background lights
- Internal storage

- USB interface for measured data and diagram transfer
- Battery charger integrated
- Internal Real-time clock
- Adapter or battery operation
- Safety: CAT I / 60V

Technical Specifications

Electrical Specifications

DC voltage measuring range / accuracy

0 - 6 V

1 mV / ± 1 % ± (1 % of U_empty + 9 mV)

6 - 10 V

1 mV / ± 1 % ± (1 % of U_empty +0.09 V)

10 - 60 V

10 mV / ± 1 % ± (1 % of U_empty +0.09 V)

DC current measurement range / accuracy

0 - 0.6 A

0.1 mA / ± 1 % ± (1 % von I_short + 0.9 mA)

0.6 - 1 A

0.1 mA / ± 1 % ± (1 % von I_short + 9 mA)

1 - 6 A

1 mA / ± 1 % ± (1 % von I_short + 9 mA)

General Features

Guarantee

107 x 58 mm, graphic display, background lights

Supply

8 x 1.5 V AA batteries or external adapter

Interface to Computer

USB

Dimensions (B x H x D)

157 x 257 x 57 mm

Weight

1160 g

Standardization

EN 61010-1 CAT I 60 V

Surrounding conditions (operation)

0 - 50 °C, max. 85 % rH

Surrounding conditions (storage)

0 - 50 °C, max. 85 % rH

Features

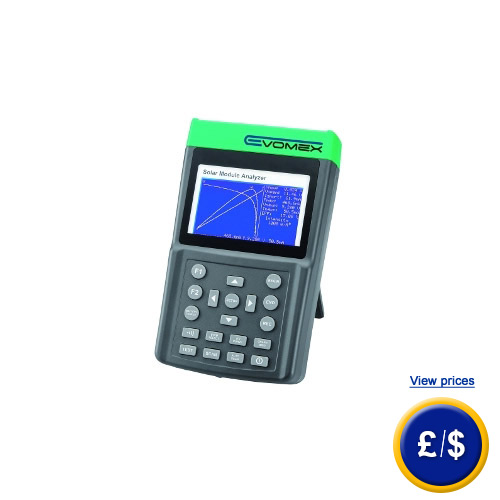

Solar Panel Tester EVOMEX SMT 200: The well-arranged graphic display allows an immediate sight on the results

Solar Panel Tester EVOMEX SMT 200: All diagrams can be transferred to a computer for documentation


An optical isolated USB interface is installed at the back of the Solar Panel Tester EVOMEX SMT 200

Delivery Content

1 x Solar Panel Tester EVOMEX SMT 200, 8 x battery (1.2 V, 2600 mAh), 1 Set connection clamps,
1 x Transportation case, 1 x adapter, 1 x Software incl. USB data cable, instruction manual

Alternative energies are currently an up-to-date topic. A not so insignificant part takes solar energy in it, which is converted into electrical energy by means of solar cells. In order to check solar cells on their efficiency, I / U graphs are recorded (see blue line). The power emitted by one solar can be calculated from that and is inserted (see red line). From these diagrams there can be easily read-out the primal electrical indices, the maximum power, the short circuit current and the off-load voltage.
