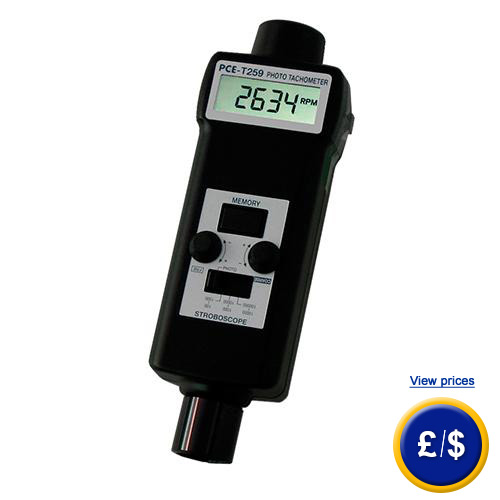

Strobe Tachometer PCE-T259
Strobe Tachometer for optical measurement combining stroboscope and tachometer / robust ABS enclosure / high performance LED /
saving latest measuring value as well as maximum and minimum value

The Strobe Tachometer is a stroboscope and tachometer combined, for maintenance and production. The strobe tachometer is ideal to measure the rotational speed of centrifuges, engines, ventilators and many more machineries and facilities in industry and research. Its characteristic is that it combines a stroboscope and a tachometer, both in one device. The strobe tachometer covers a measuring range of 100 ... 100.000 rpm. Due to the IC combined with bright orange LEDs the device has a low power consumption rate and proves itself almost maintenance free. The set-up is performed via two rotary switches (for rough and fine adjustment) at the strobe tachometer. Furthermore the strobe tachometer allows a remote measurement of rotational speeds between 0.5 and 100,000 rpm with a resolution of down to 0.1 (at n < 1,000 rpm).  If there are any questions about this strobe tachometer PCE-T259 , please have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703.. Our engineers and technicians will gladly advise you regarding the stroboscopes or tachometers or any other products in terms of regulation and control, or scales and balances of PCE Instruments.

  Information for the Strobe Tachometer PCE-T259  User manual for the Strobe Tachometer PCE-T259  EC certificate for the Strobe Tachometer PCE-T259  Video for the Strobe Tachometer PCE-T259  Strobe Tachometer PCE-T259: Further Images  Technical specifications for the Strobe Tachometer PCE-T259

Strobe Tachometer PCE-T259

- Easy to handle
- High performance LED
- Robust ABS enclosure

- 5-digit 10 mm LCD
- Last measured value / MIN / MAX memory
- Orange stroboscope light

General Technical Specifications of the Strobe Tachometer PCE-T259

Display

5 Digits, 10 mm (0.4") LCD

Accuracy

± (0.1 % + 2 Digits)

Power Supply

4 x 1.5 V AA (UM-3)

Operation Temperature

0 ... +50 °C (32 - 122 °F)

Operation Humidity

< 80 % rH.

Measurements

215 x 65 x 38 mm

Weight

300 g

Technical Specifications for Strobe Tachometer PCE-T259 Tachometer

Measuring range

5 ... 99999 rpm

Resolution

0.1 rpm (< 1000 rpm)

Distance to measured object

50 ... 150 mm
max. 300 mm (depending on surrounding light)

Technical Specification for Strobe Tachometer PCE-T259 Stroboscope

Flash rate

100 ... 100000 fpm

Measuring ranges

100 ... 1000 fpm
1000 ... 10000 fpm
10000 ... 100000 fpm

Resolution

0.1 (< 1000 fpm)
1 fpm (> 1000 fpm)

Flash light

highly efficient LED (orange)

Duration of flashing

60 ... 1000 ms

Delivery content of the Strobe Tachometer PCE-T259

1 x tachometer stroboscope PCE-T259, 1 x reflective tape (60 mm), 1 x carry bag, 1 x instruction manual

Additional equipment of the Strobe Tachometer PCE-T259

- Reserve reflective tape (600mm) on role
- Stand
