Tension Transducer TZL

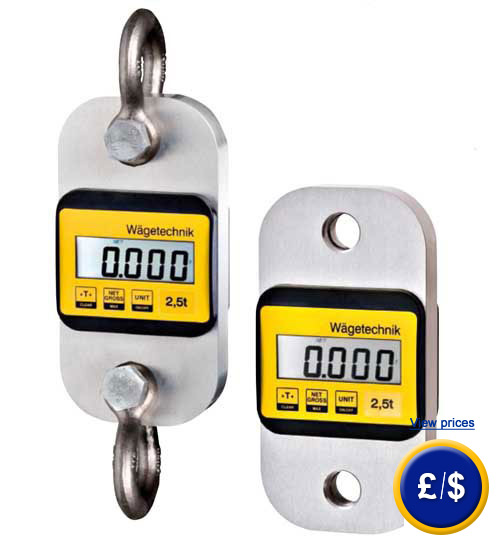

Tension transducer for picking up of traction force of up to 20,000 kg / measuring units kg, t, lbs, to, kN / long battery duration of 200 h / easy handling and robust design

The tension transducer TZL series consists of measuring instruments for measuring of traction force like, for instance, used with a crane scale. The tension transducer consists of a casing with integrated LC display. According to its versatility tension transducer can be used universally. A tension transducer can be combined with a shackle or hook, of course. Tension transducer is equipped with a well readable LC display. The display of tension transducer shows optionally the force applied as gross or net value of current load or maximum value. Tare weighing function of tension transducer (zero points of display) can be used over the whole weighing area. Please note: Do not exceed indicated total load of tension transducer. If there are any questions about the tension transducer TZL have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you in all tension transducers and all products in the field of measuring instruments, regulation and control and scales.

Tension transducer TZL

- high weighing accuracy
- low weight of tension transducer
- well readable
- easy handling, robust design
- maximum value (peak value) memory
- long battery duration of 200 hours

- display maximum weight (gross / net)
- display of traction force pick-up
- measuring units kg, t, lbs, to, kN
- automatic shut-down for protection
- easy battery change
- overload warning on tension transducer

Technical specification of Tension Transducer TZL

Tension transducer

TZL 1 TZL 2.5  TZL 5 TZL 10 TZL 20
Measuring area 0 ... 1 t 0 ... 2.5 t 0 ... 5 t 0 ... 10 t 0 ... 20 t
Nominal load 1.0 t 2.5 t 5 t 10 t 20 t
Maximum load 1.1 t 2.75 t 5.5 t 11 t 22 t
Breaking load >= 4t >= 10 t > 20 t > 40 t > 80 t
Readability 1 kg 1 kg 1 kg  10 kg 10 kg
Weight 1.1 kg 1.7 kg 2.1 kg 3.9 kg 6.8 kg
Accuracy 0.2 % nominal load
Working temperature - 10 °C ... + 50 °C
Storage temperature -20 °C ... + 70 °C
Protection case IP 54
Operation duration approx. 200 h at 20 °C
Batteries 4x V AA batteries
Display LC display, 20.5 mm 4 1/2 digit
Tare range 100 % at nominal load
Overload warning exceeding of 110% of nominal load

Technical drawing of Tension Transducer

Technical drawing of tension transducer TZL.

Dimensions tension transducer TZL 1.0 t Dimensions tension transducer TZL 2.5 … 20 t

Tension transducer

TZL 1 TZL 2.5 TZL 5 TZL 10  TZL 20
A 190 mm 233 mm 250 mm 325 mm 378 mm
B 118 mm 118 mm 118 mm 118 mm 141 mm
C Ĝ 14 mm Ĝ 22 mm Ĝ 27 mm Ĝ 48 mm Ĝ 55 mm
D 151 mm 173 mm 180 mm 231 mm 233 mm
E 12.5 mm 19 mm 21.5 mm 22 mm 32 mm
F 37 mm - - - -
G 21 mm 25 mm 30.5 mm 47 mm 57 mm
H 38.4 mm 42.2 mm 45.1 mm 64.4 mm 74.2 mm

Delivery content of Tension Transducer

1x tension transducer TZL,
4x batteries 1.5 V AA,
1x user’s manual,
1x transportation case

Transportation case of tension transducer TZL.
Tension transducer TZL in transportation case.

Comment to Tension Transducer



Delivery of tension transducers occurs without shackle or hook.

Additionally

-hooks
-shackles
We also offer the tension transducer as TZR model with an external display. Transmission of data happens wireless via radio. Furthermore external display of tension transducer has an USB interface for transmission of data to a PC. To this you will find more information if you follow this link: tension transducer TZR.

Technical drawing of Tension Transducer

Technical drawing of tension transducer TZL with shackle and hook.

Tension transducer TZL with shackle. Tension transducer TZL with hook.
Tension transducer TZL 1 TZL 2.5  TZL 5 TZL 10 TZL 20
J 348 mm 604 mm 610 mm 690 mm 780 mm
K 30 mm 34 mm 50 mm 105 mm 92 mm
L 26 mm 38 mm 44 mm 95 mm 95 mm
M Ĝ 10 mm Ĝ 16 mm Ĝ 19 mm Ĝ 35 mm Ĝ 35 mm
N 25 mm 25 mm 32 mm 50 mm 70 mm
O 23 mm 23 mm 37 mm 63 mm 80 mm
P 17 mm 17 mm 28 mm 44 mm 57 mm
Q 235 mm 309 mm 315 mm 535 mm 562 mm
R 16 mm - - - -
Technical specifications of the tension transducer TZL. return to homepage
