PCE-TC 4 Thermal Camera
Thermal camera with a measurement range of -10ºC to 900ºC, includes software

The core element of the PCE-TC 6 thermal camera is its uncooled focal plane array with a resolution of 160 x 120 pixels. The high temperature thermal camera was designed to be ergonomic, allowing the user to operate it with only one hand. As it only weighs 750 g, it is ideal for analysing installations and construction works at a distance where a typical thermal camera lens will offer an image that is too small to provide sufficient data. Another advantage of this feature is that it can provide safety to the user by allowing meaurements from a greater distance from heavy machinery. The 3.5" LCD, which is unique for a product in this price range, is a solid help to the user. The PCE-TC 6 thermal camera offers a temperature range of 50°C to 900°C, with a resolution of 1°C. The camera's colour display can move the two cursors on different points and automatically read the corresponding temperature. This thermal camera also provides the user with the possibility to automatically locate and view the hot spot and cold spot in the image and can measure the differential temperature. With these functions, the user can immediately locate irregularities and take the according measures while on the job. The integrated laser pointer also allows the user to accurately target the area to be measured and to capture the best possible image.
Images that are saved to the thermal camera are stored in its SD memory card and can be transferred to a computer for further analysis. Continuous measurements can be taken if the device is connected to a computer using the USB port. Software is included with the camera, which allows the user to not only view and analyse images, but to generate reports. A thermal camera with less features and functions can be found here. You will find an overview of thermal cameras at the following link: thermal cameras.

the display of the PCE-TC 4 thermal camera

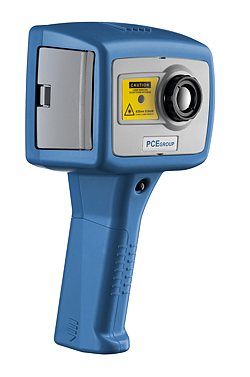

the PCE-TC 4 thermal camera

- Accurate temperature measurement across the entire display

- two moveable measurement points

- Auto search of hot point, cold point from all points measured

- 3.5" backlit LCD resolution of 160 x 120 pixels

- Temperature range: 50ºC to 900ºC

- 2x digital zoom

- Uncooled Focal Plane Array for maintenance free work

- Ergonomic: use with only one hand

- Perfectly balanced to prevent wrist fatigue during prolonged measurements

- Weight: 750 g

- Laser pointer: allows user to pinpoint the area of measurement

- Memory card to store up to 1000 images

- Lengthly operating time of up to 6 hours

- Data transfer of images to a computer via USB

- Software: for detailed analysis of images and easy reporting of data

- Wide range of accessories


 PCE-TC 4 thermal camera

View or print user's manual
Aquí puede ver las instrucciones de uso de la cámara termográfica.

Software
Stored images can be sent from the SD memory to a computer. Software offers access to every pixel and the capability to adjust all the parameters including emissivity, conditions such as temperature and relative humidity and distance.

PCE-TC 4 thermal camera: an image of the software

Features


  - Determine the temperature of all points
  - Determine maximum, minimum and average temperature on the display
  - Select colour range
  - Possibility of Level and Span displacement
  - Detailed report generation
  - Automatic detailed reporting
  - Table of results with automatic indication of date, time, user and event

Technical specifications
Temperature range -10 to 900°C
Uncooled Focal Plane Array
Measurement points / resolution 160 x 120 (19,200 pixels)
Accuracy ±15°C
Display resolution 192 x 192 pixels
Field of vision (FOV) 20º x 15º
Focus 0.10ºC
Measurement distance 50cm to infinity
Functions of measurement two moveable measurement points, measurement of differential
Temperature resolution 1ºC
Image frequency 7.5Hz
Spectral range 8 to 14µm
Emissivity 0.2 to 1.0 (adjustable by 0.01)
Memory MMC or SD memory card
Port USB type B
Display 3.5"LCD, backlit, four colour scales (adjustable): rainbow, iron bow, grey scale and high contrast
Indication of temperature ºC, ºF or K
Laser pointer class II 1mW / 635nm
Operating conditions -15 to 45ºC; 10 to 90% r.h. without condensation
Storage temperature -20 to 70ºC
Mains connector AC adaptor
Battery ion-litio rechargeable
Operating time 4 to 6 hours
Enclosure plastic
Tripod screw 1/4"
Weight 750g
Dimensions 230 x 120 x 110mm
PCE-TC series thermal camera in use

PCE-TC 4 thermal camera: thermal traces on pavement
thermal traces on a pavement

PCE-TC 4 thermal camera: the same image in grey scale
the same image in grey scale

PCE-TC 4 thermal camera: thermal image of a tyre
thermal image of a tyre

PCE-TC 4 thermal camera: the same image in grey scale
the same image in grey scale

PCE-TC 4 thermal camera: thermal image of a building
thermal image of a buidling facade

PCE-TC 4 thermal camera: image after software evaluation
image after software evaluation

PCE-TC 4 thermal camera: thermal image of a building
another image of a building facade

PCE-TC 4 thermal camera: heat radiation viewed
the high heat radiation can be seen

PCE-TC 4 thermal camera: thermal radiation
thermal radiation of buildings

PCE-TC 4 thermal camera: heat leaking from a window
thermal energy leaking from a window

Contents
PCE-TC 4 thermal camera, rechargeable battery, charger, hand strap, software, USB cable, SD card, SD card reader, case and user's manual

Optional accessories
- Software
PCE-TC 4 thermal camera with a measurement range of 50ºC to 900ºC, includes software. return to homepage
