PCE-TC 2 thermographic camera
for use in industry and research
|
|
The PCE-TC 2 thermographic camera is ideal for all applications where a single
point of measurement for temperature is insufficient or where a high-resolution image is required. Thanks to
current devlopments, it's possible to use economical detectors for this thermographic
camera based on a Focal Plane Arrays
with a resolution of 16 x 16 points. The low price of this device opens up many areas of use that previously
were not possible due to price. They are perfect for preventative maintenance and in the construction
industry, as well as machining industry, manufacturing heating systems and in the electrotechnical industry.
This camera can safely anticipate potential failures that can occur in production. The termographic camera
only weighs 700g and is so easy to use it can be operated by personnel that have little exprience. The
laser pointer allows the user to accurately target the area to be measured. Data can be viewed
directly on the
display and evaluated in situ. The PCE-TC 2 thermographic camera has an additional MMC and SD memory
card reader. Data can be stored to the memory card. This link
will show an overview of all the thermographic cameras we have available. We are available to assst you
in deciding which device best suits your needs.
|

Rear view of the thermographic camera |

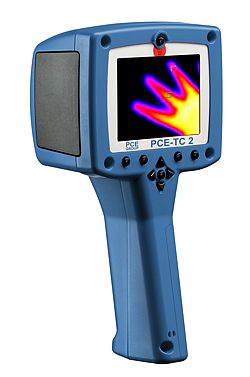

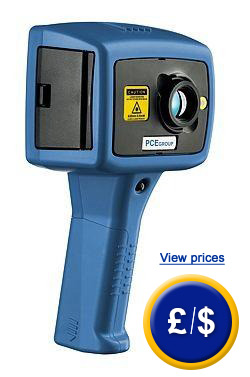

Front view of the thermographic camera |
-
Temperature range: -10 to 300°C
-
Field of vision: 20º x 20º
-
Display resolution: 192 x 192 pixels
-
16 x 16
measurement points
-
Spectral range: 8 to 14 µm
-
Laser pointer to accurately
target area to be measured
-
6
hours of battery life
-
Minimum focal distance of 0.7m
-
High
thermal sensitivity of 0.3ºC
-
SD memory
card for up to 1000 images
-
two
adjustable temperature cursors
-
Date
and time stamp images
View
or print the user's manual
|

Examples of use for the thermographic camera |
|
Examples of use |
|
 |

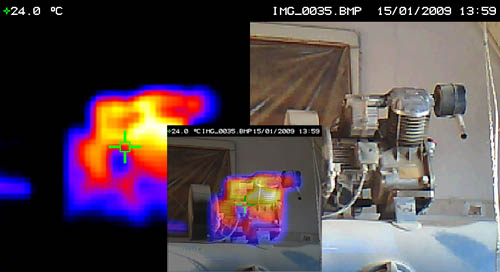

To the left you can see the PCE-TC 2 thermal camera if a
mains fuse box is emitting high temperatures due to an
overload or bad contacts in the connections. The 16 x 16 pixel
resolution is more than enough for this application, as well
as for the assembly of transmissions, pumps or remote
control units. |
|

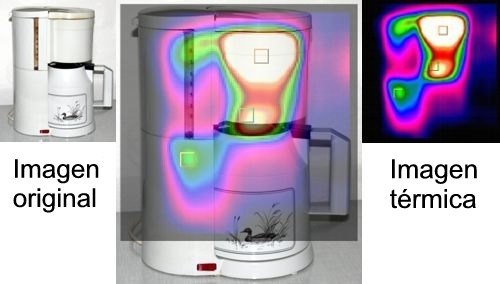

Here you can clearly see a thermal charge and heat
distribution between the original image of a coffee machine
taken by the PCE-TC 2 thermographic camera. The resolution
of the camera is more than sufficient. |
|

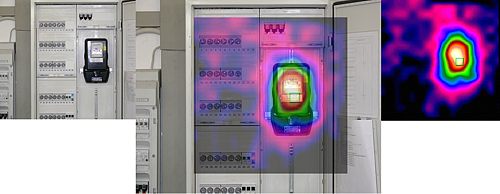

Here you can see a thermal image
of an electrical meter taken by the PCE-TC 2 thermographic
camera. To the left is the original image, to the right is
the thermal image and in the middle is a combined image of
the two. |
|

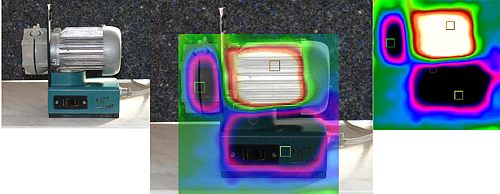

An exhaust fan can be seen in
the above example. To the left is the original image and to
the right the thermal image and in the middle the image is a
combination of the two. |
|
Technical specifications
|
|
Temperature range |
-10 to 300°C (standard)
Sensor: Uncooled Focal Plane Array (UFPA) |
|
Points of measurement/ Resolution |
16 x 16 pixels (256 points) |
|
Display resolution |
192 x 192 pixels |
|
Field of vision (FOV) |
20° x 20° |
|
Measurement distance |
70cm
to infinity |
|
Temperature resolution |
0.3°C |
|
frequency |
8 Hz |
|
Spectral range |
8 to 14 µm |
|
Emissivity |
0.1
to 1.0 (adjustable) |
|
Memory |
MMC or SD
memory cards |
|
Display |
3.5" LCD,
with back lighting and three
adjustable colour palettes: red-blue, green-blue, grey |
|
Temperature units |
°C, °F or K |
|
Laser
pointer |
class II |
|
Operating temperature |
-5
to 50ºC |
|
Storage temperature |
-20
to 70ºC |
|
Air
humidity |
10 to 90%
r.h. without condensation |
|
Power |
ion-lithium
rechargeable battery |
|
Operating time |
up
to 6 hours |
|
Enclosure |
plastic |
|
Weight |
700g |
|
Dimensions |
230 x 120 x 90mm |
|
Software for data analysis on a computer |
|

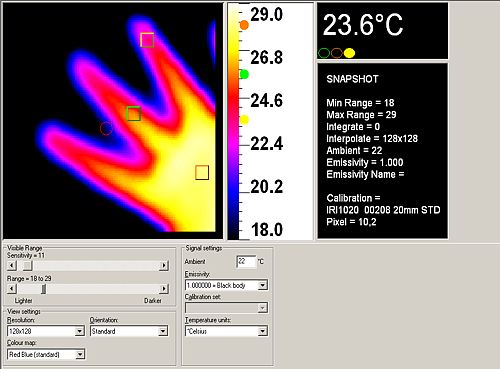

The image shows the software used by the PCE-TC 2 thermographic camera |
Contenido del envío
PCE-TC 2 thermographic camera, ion-lithium rechargeable battery, charger, carrying case, SD memory card,
software, USB cable and user's manual |
|
|
|
